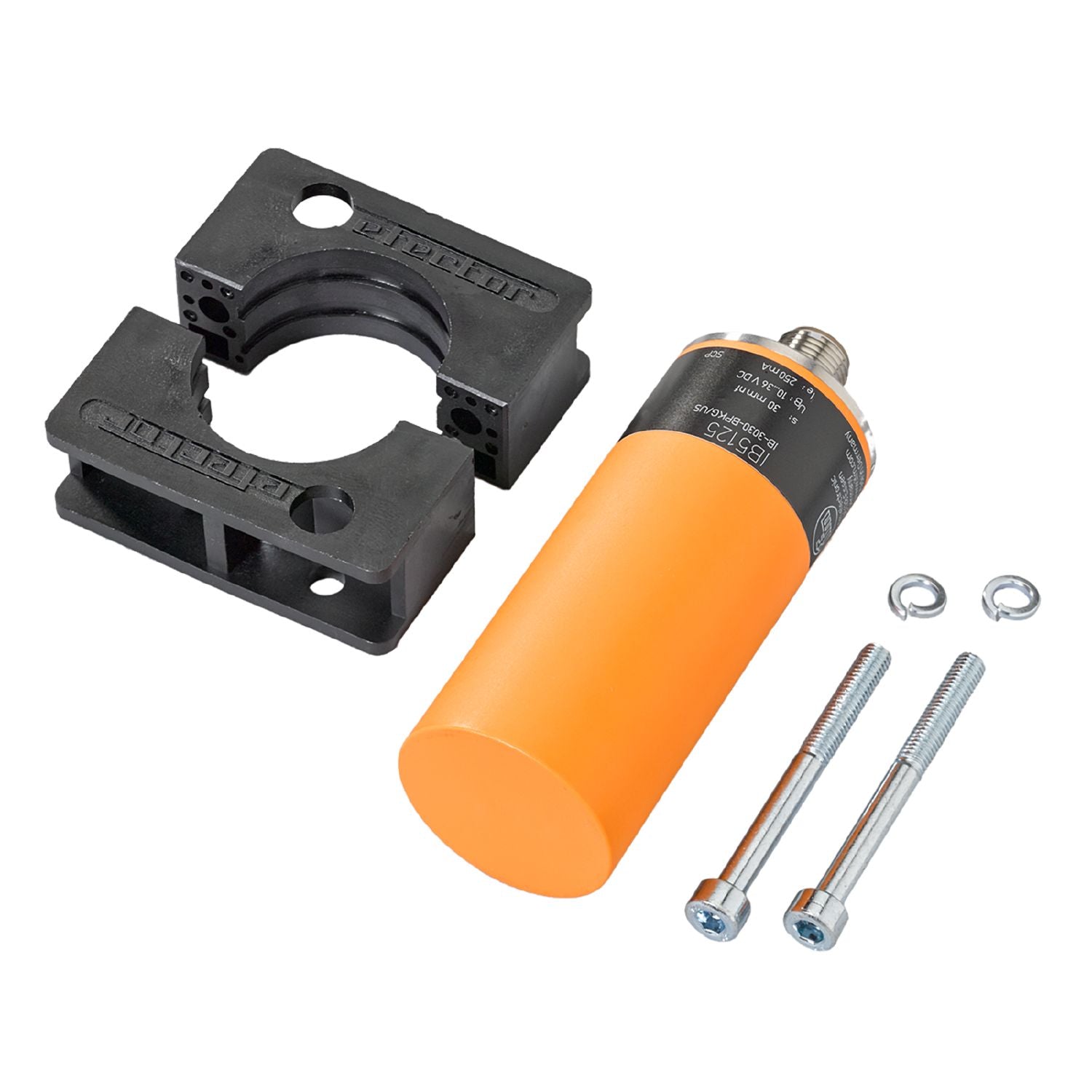

IFM IB5171 - Inductive sensor IB-4030-CPKG/US

Complementary output function NO/NC.
Very long sensing range.
With robust M12 connector.
Smooth plastic housing to protect against deposits.
PBT housing resistant against pickling solutions

Electrical design	PNP
Output function	complementary
Sensing range [mm]	30
Housing	cylindrical
Dimensions [mm]	Ø 34 / L = 96

Special feature	Gold-plated contacts

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	350
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	30
Real sensing range Sr [mm]	30 ± 10 %
Operating distance [mm]	0...24.3

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	1334

Weight [g]	247
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 34 / L = 96
Materials	housing: PBT; sensing face: PBT orange; clamp: PBT black

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated
