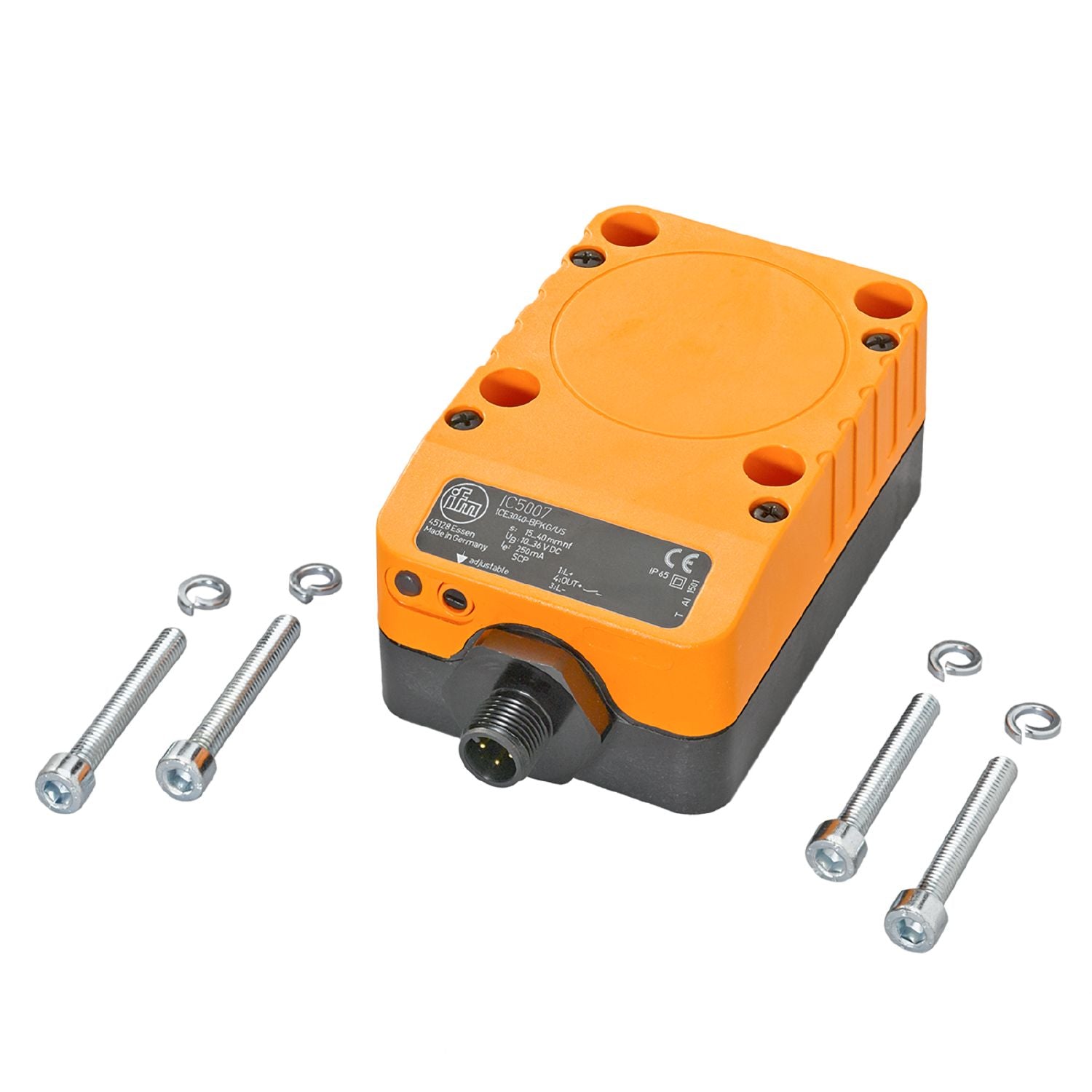

IFM IC5007 - Inductive sensor ICE3040-BPKG/US-100-DPS

Very long sensing range.
Easy setting of the sensing range via potentiometer.
Large active sensor face.
Output function normally open / normally closed programmable.
Robust housing for use in harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	40
Housing	rectangular

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	6
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	40
Sensing range adjustable	yes
Factory setting sensing range [mm]	40
Real sensing range Sr [mm]	40 ± 10 %
Operating distance [mm]	0...32.4

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1261

Weight [g]	279.5
Housing	rectangular
Mounting	non-flush mountable
Materials	PPE modified

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	screwdriver: 1 spring washers: 4 cylinder screws: 4 x M5 x 35

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IC5007-00 — 13.04.2023 —
