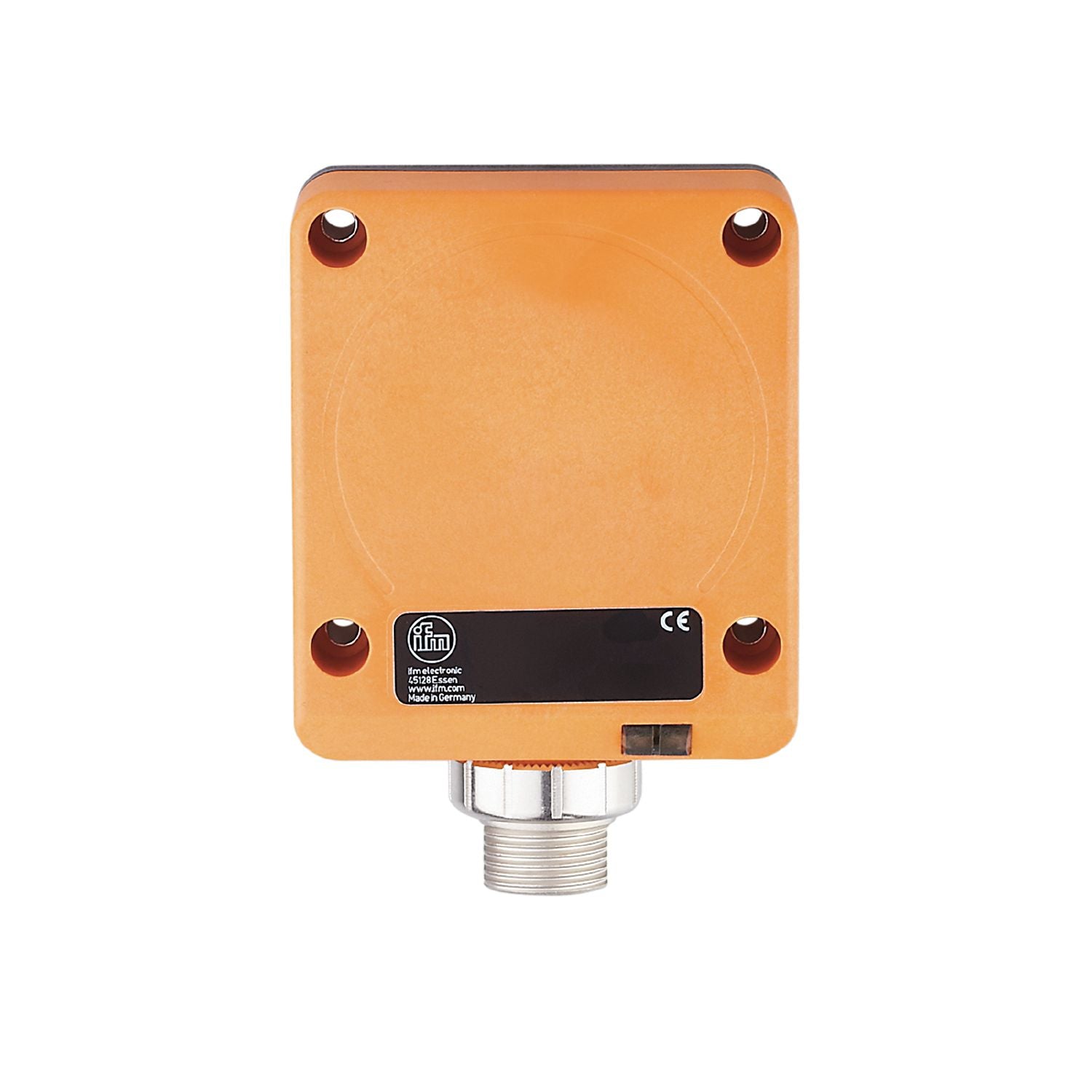

IFM ID0038 - Inductive sensor IDC2050BARKA/SL/LS-300BL

Very long sensing range.
Large active sensor face.
With combined AC/DC output and two-wire technology.
LED display to check operation, switching status and function.
Robust housing for use in harsh industrial environments

Output function	normally open
Sensing range [mm]	50
Housing	rectangular
Dimensions [mm]	92 x 80 x 40

Frequency AC [Hz]	47...63
Operating voltage [V]	20...140 AC / 10...140 DC
Protection class	I
Reverse polarity protection	yes

Outputs

Output function	normally open
Max. voltage drop switching output DC [V]	6
Max. voltage drop switching output AC [V]	6
Minimum load current [mA]	5.5
Max. leakage current [mA]	1.7 (140 V AC/DC)
Permanent current rating of switching output AC [mA]	450
Permanent current rating of switching output DC [mA]	450
Short-time current rating of switching output [mA]	2200;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	25
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	50
Operating distance [mm]	0...40.5;(mounted flush with mild steel (ST37))

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38
Hysteresis [% of Sr]	3...20
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	352
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	432.5
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	92 x 80 x 40
Materials	PPE; diecast zinc; brass nickel-plated

Displays / operating elements

Display	switching status 1 x LED, red operation 1 x LED, green short circuit 1 x LED, green/red alternately flashing

Accessories

Items supplied	sealing plug: 1

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x 7/8"; coding: A
