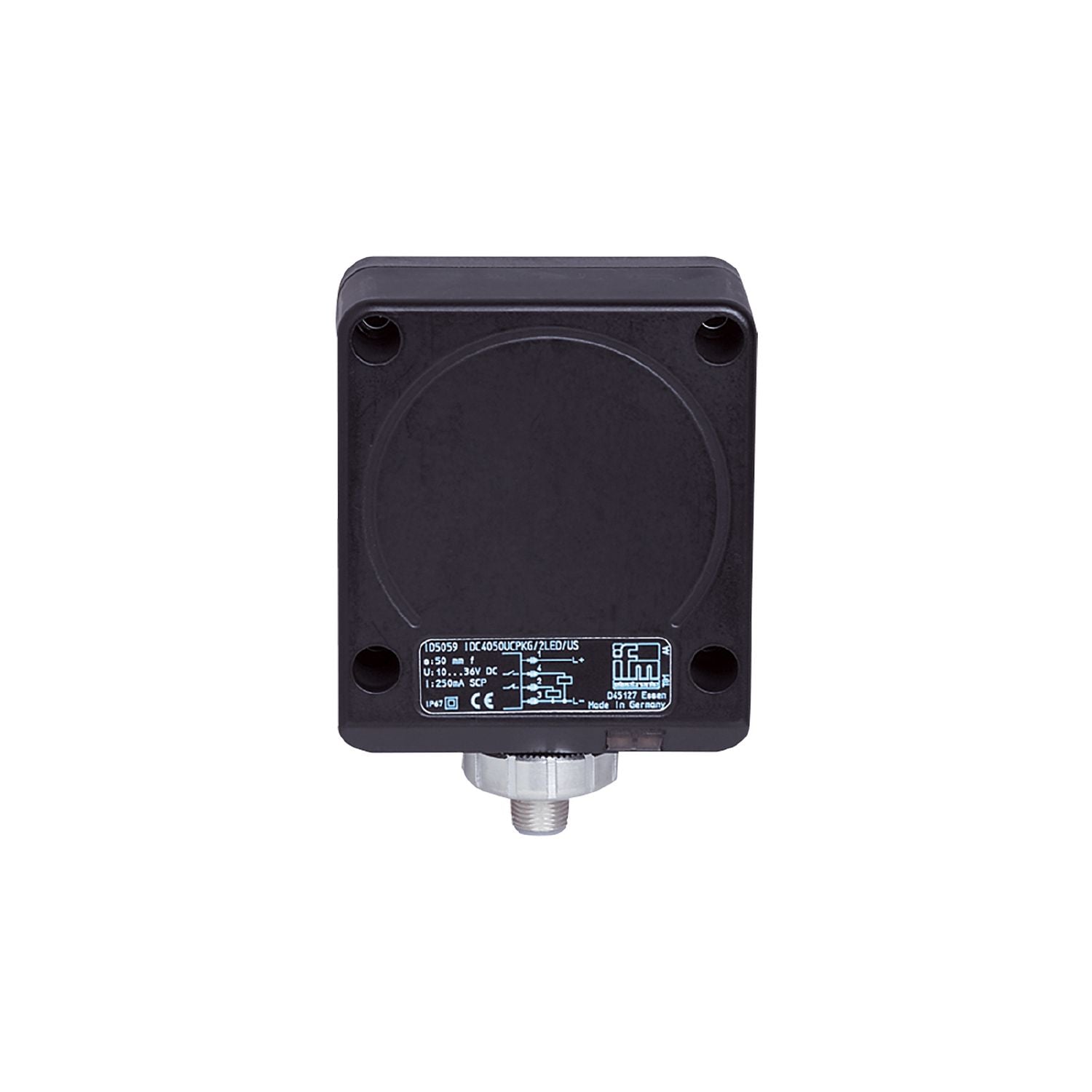

IFM ID5059 - Inductive sensor IDC4050UCPKG/SC/2LED/US-100DPA

Magnetic-field immune for welding applications.
Very long sensing range and large active sensor face.
LED display to check switching status and operation.
Robust housing for use in harsh industrial environments.
Complementary output function NO/NC

Electrical design	PNP
Output function	complementary
Sensing range [mm]	50
Housing	rectangular
Dimensions [mm]	92 x 80 x 40

Special feature	anti-spatter

Operating voltage [V]	10...36 DC
Current consumption [mA]	20;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	70
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	50
Operating distance [mm]	0...40.5;(mounted flush with mild steel (ST37))

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38
Hysteresis [% of Sr]	3...20
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1162
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	422.5
Housing	rectangular
Mounting	flush mountable
Type of mounting	rail;(TH35 (EN 60715))
Dimensions [mm]	92 x 80 x 40
Materials	PPE anti-spatter; brass white bronze coated; diecast zinc

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	sealing plug: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
