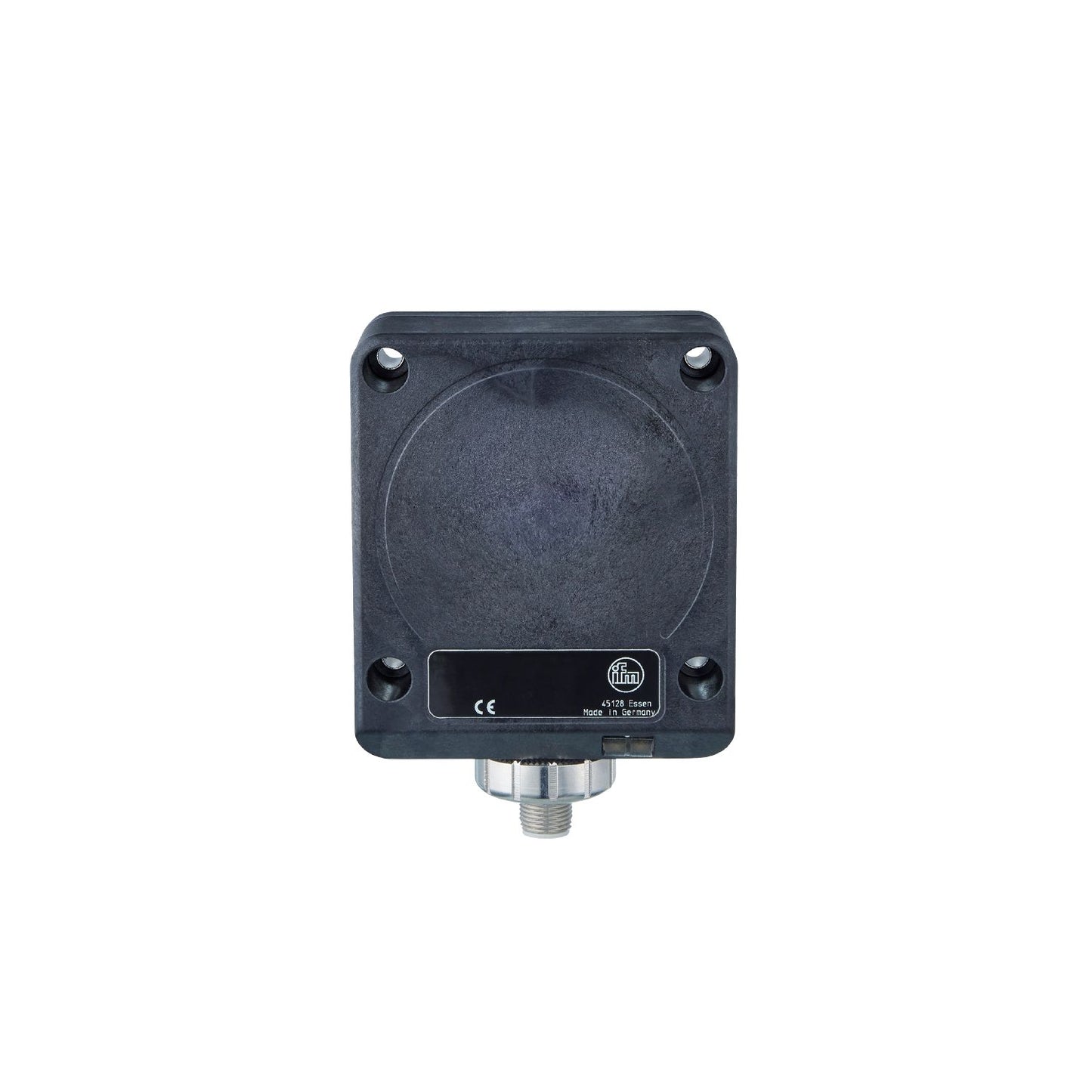

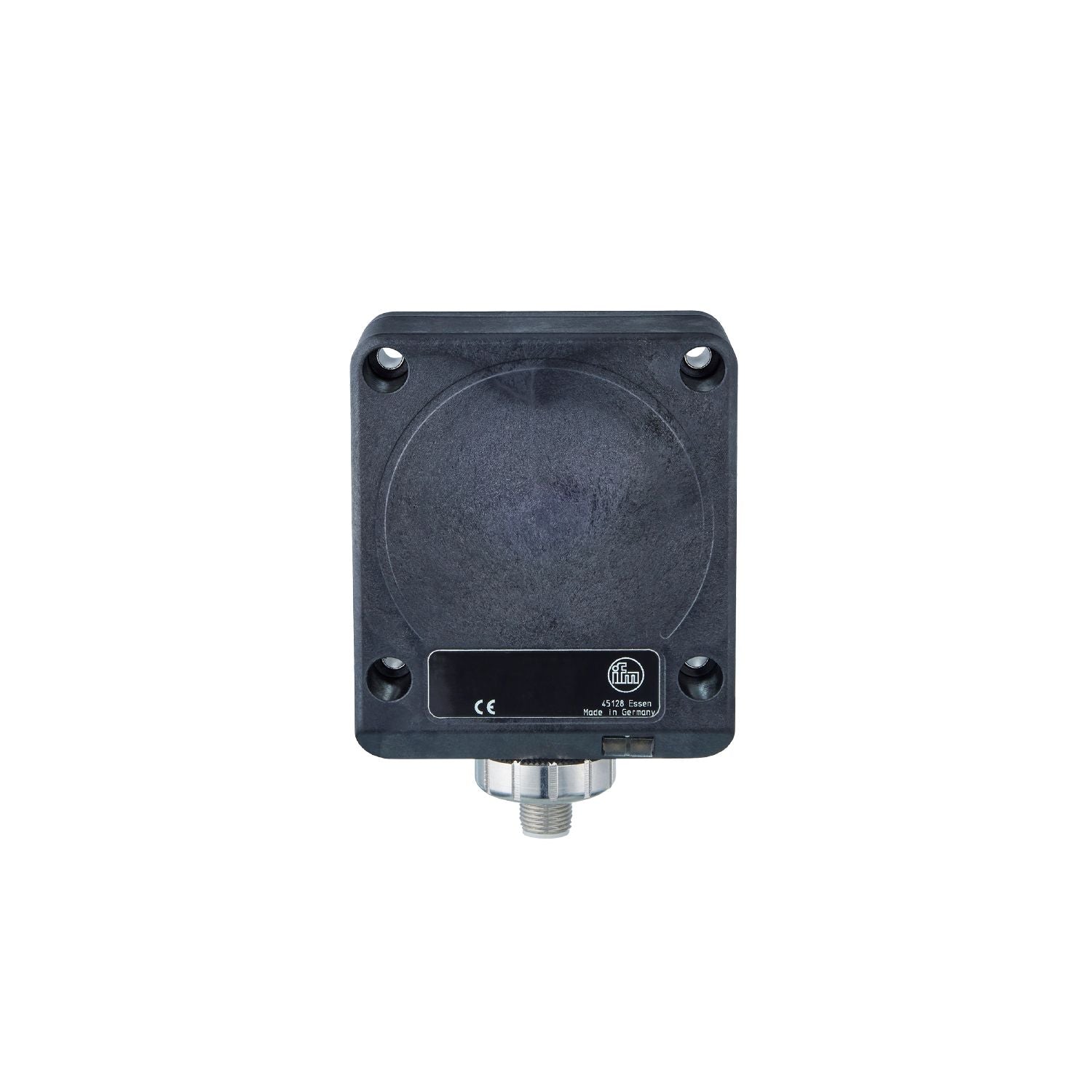

IFM ID5072 - Inductive sensor IDC4050BCPKG/F/2LED/US-100-DPA

Long sensing range for use in conveying.
Robust housing for use in harsh industrial environments.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	complementary
Sensing range [mm]	50
Housing	rectangular
Dimensions [mm]	92 x 80 x 40

Operating voltage [V]	10...36 DC
Current consumption [mA]	20;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	70
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	50
Real sensing range Sr [mm]	50; (mounted flush with mild steel (ST37))
Operating distance [mm]	0...40.5;(mounted flush with mild steel (ST37); non flush: operating distance reduced by max. 5.5 mm)

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38
Hysteresis [% of Sr]	3...20
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2

Weight [g]	423.5
Housing	rectangular
Mounting	flush mountable
Type of mounting	rail;(TH35 (EN 60715))
Dimensions [mm]	92 x 80 x 40
Materials	PPE black; brass white bronze coated; diecast zinc

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	sealing plug: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ID5072-00 — 14.01.2019 —
