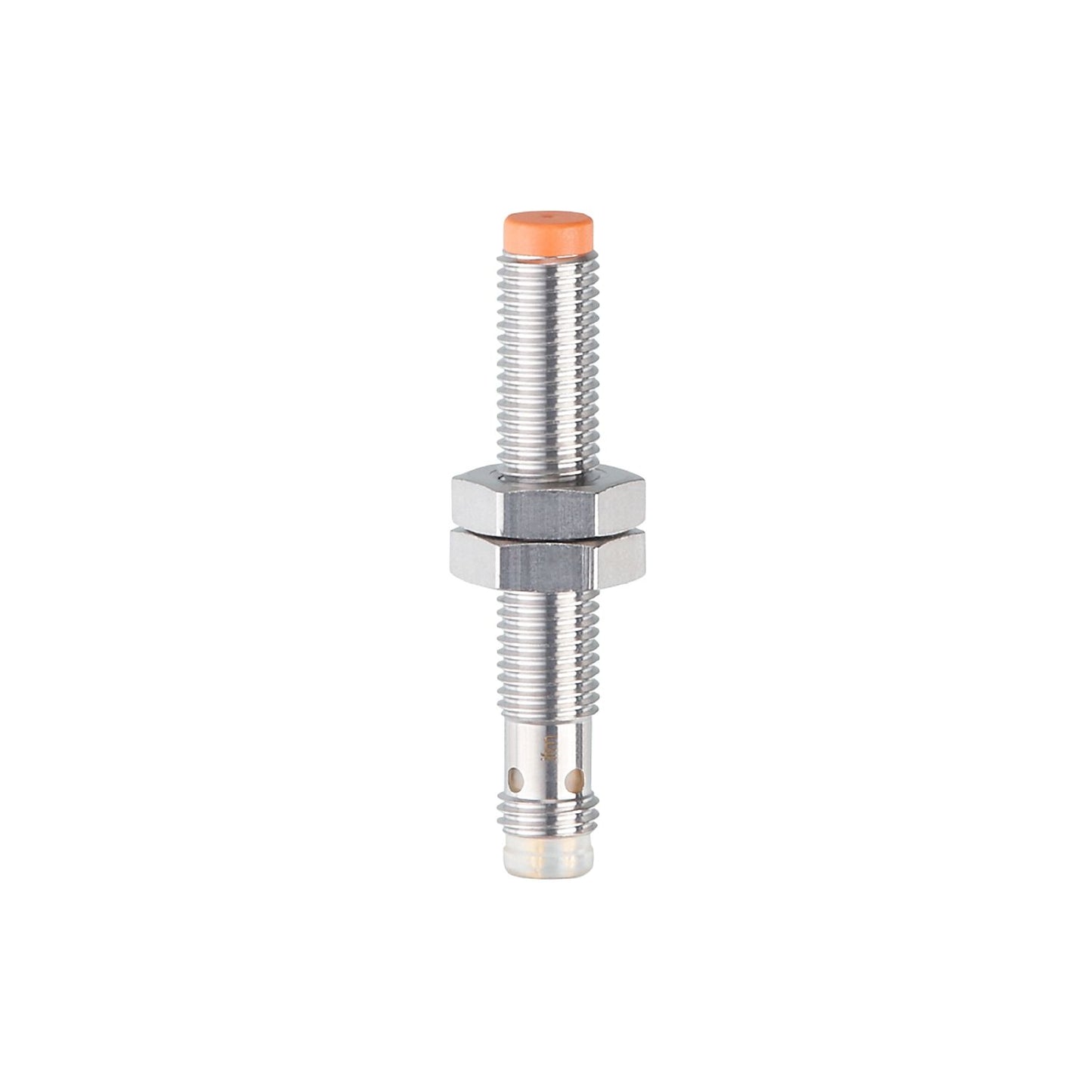

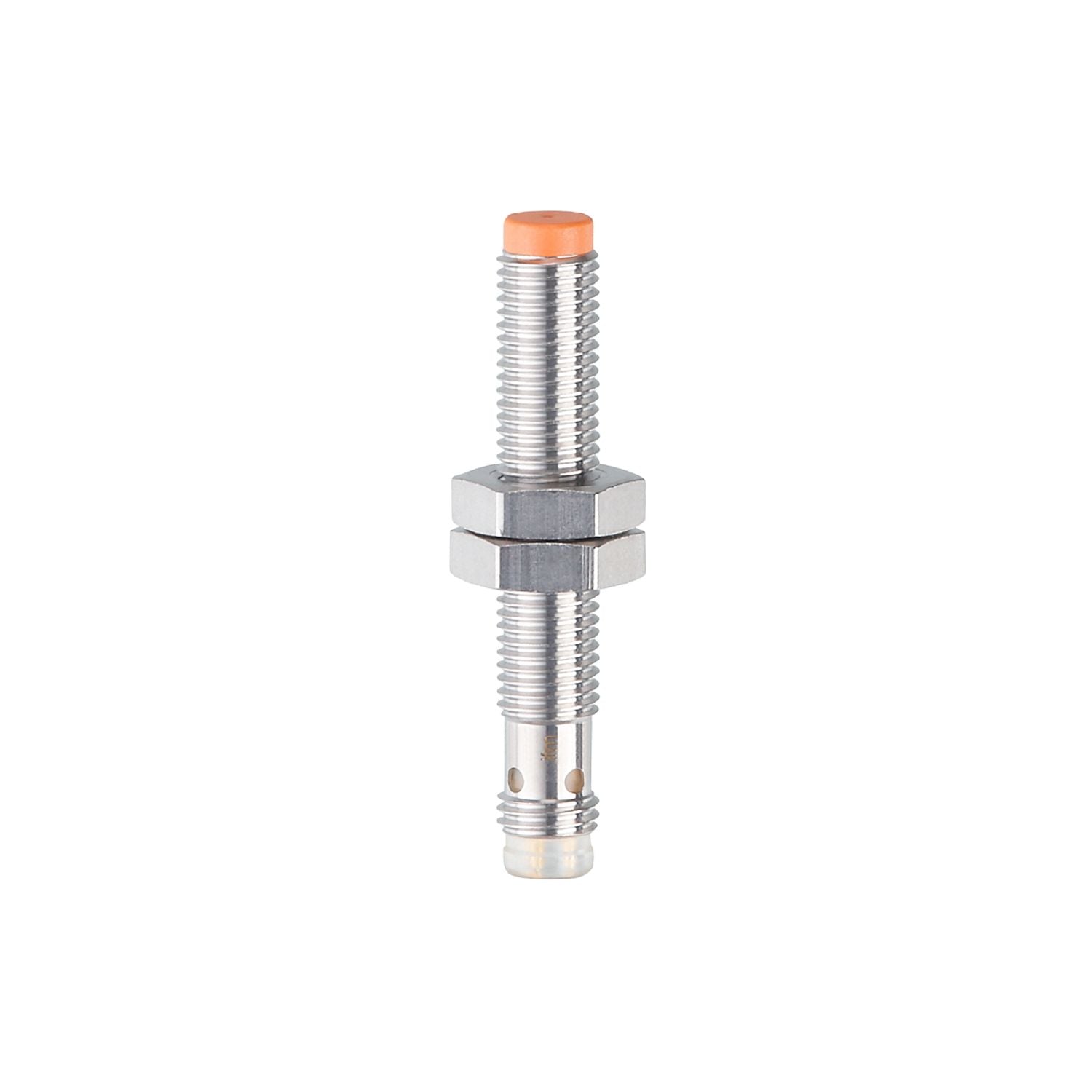

IFM IE5339 - Inductive sensor IEB30,2-BPKG/AS

For use where space is restricted.
Clearly visible indication of the switching status.
Robust metal housing for use in harsh industrial environments.
Very high switching frequency.
Short sensing range with very high precision

Electrical design	PNP
Output function	normally open
Sensing range [mm]	0.2;(for target made of mild steel)
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 50

Special feature	Increased sensing range

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	0.2;(for target made of mild steel)
Real sensing range Sr [mm]	0.2 ± 10 %
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [mm]	0.002...0.025
Switch point drift [mm]	> 0.04
Repeatability [mm]	< 0.015

Operating conditions

Ambient temperature [°C]	0...80
Protection	IP 65; IP 67;(with ifm socket duly screwed on)

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Impact resistance	EN 60068-2-75 Ehc
Vibration resistance	EN 60068-2-6 Fc
Shock resistance	EN 60068-2-27 Ea
Continuous shock resistance	EN 60068-2-29 Eb
Fast temperature change	EN 60068-2-14 Na
Salt spray test	EN 60068-2-52 Kb
MTTF [years]	1379
Embedded software included	yes
UL approval	Ta 0...80 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A017 File number UL E174191

Weight [g]	18.8
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M8 x 1 / L = 50
Thread designation	M8 x 1
Materials	brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated
Tightening torque [Nm]	A = 5 mm: 1,5 Nm; B = 2 Nm

Displays / operating elements

Display	switching status 4 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

Installation
