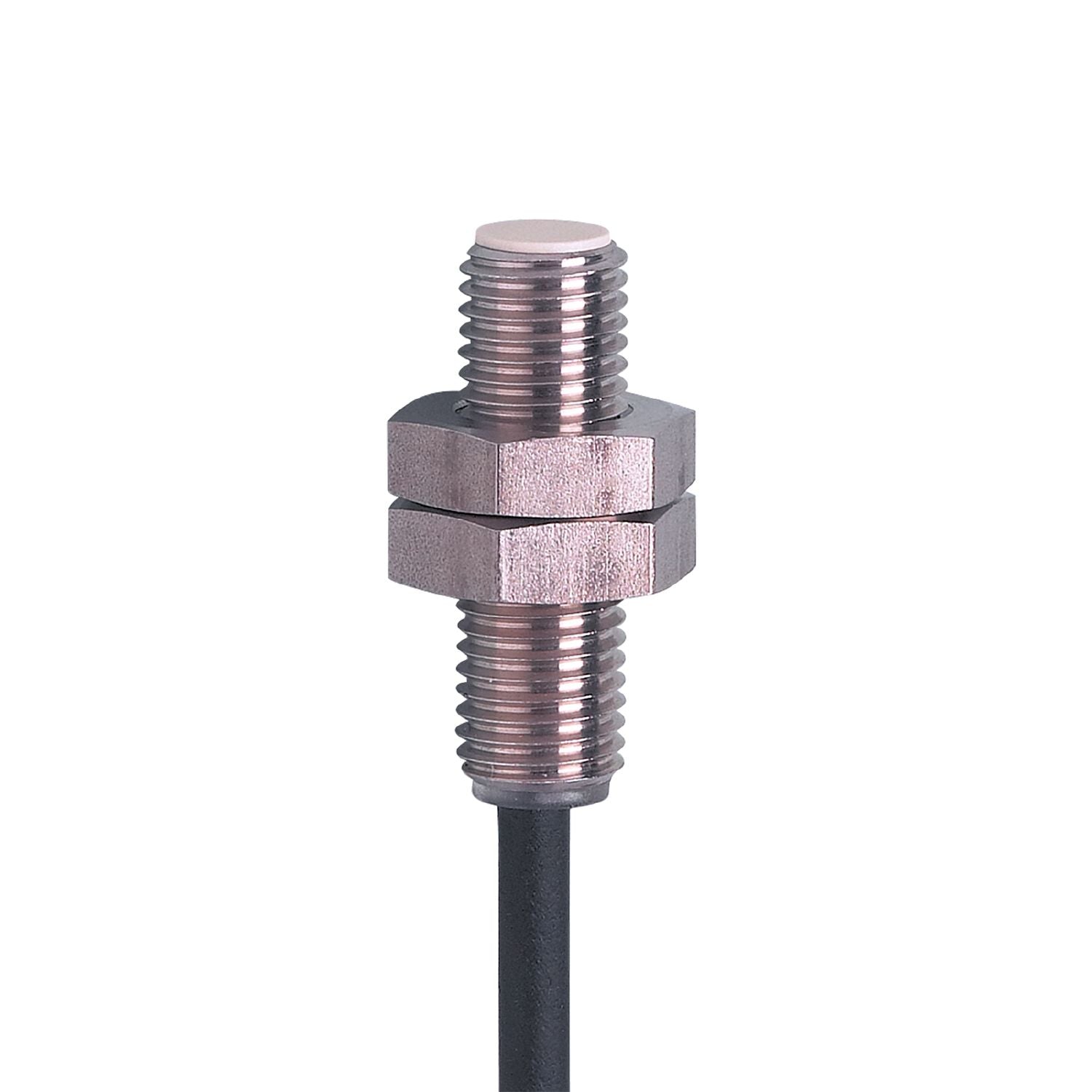

IFM IE5368 - Inductive sensor IEB3002BBPKG/V4A/2M

Particularly short housing.
For use where space is restricted.
Space-saving connection technology.
Very high switching frequency.
Robust stainless steel housing for use in harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 27

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	3408
UL approval	Ta -20...70 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	46.2
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 27
Thread designation	M8 x 1
Materials	stainless steel; sensing face: LCP

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.14 mm²
