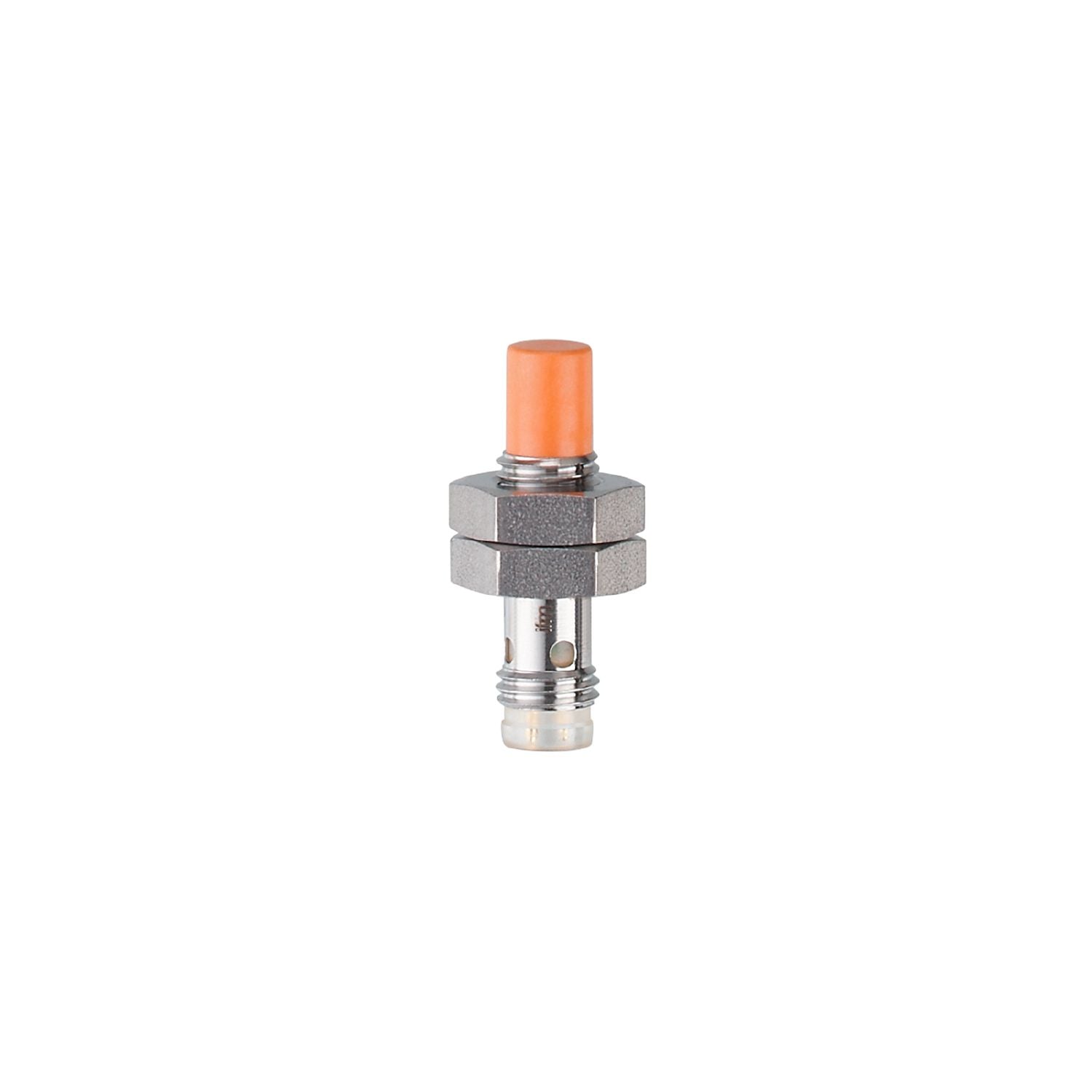

IFM IE5422 - Inductive sensor IEB3004-APKG/V4A/AS

Particularly short housing.
For use where space is restricted.
Space-saving M8 connector.
Long sensing range for high uptime.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	4
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 30

Special feature	Gold-plated contacts; Increased sensing range

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.25
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65; IP 67;(with ifm socket duly screwed on)

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B
MTTF [years]	1443
Embedded software included	yes
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A017 File number UL E174191

Weight [g]	15
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M8 x 1 / L = 30
Thread designation	M8 x 1
Materials	stainless steel; sensing face: LCP orange; LED window: PPSU; lock nuts: stainless steel (316 / 1.4401)
Tightening torque [Nm]	A = 5 mm: 2 Nm; B = 5 Nm

Displays / operating elements

Display	switching status 4 LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A; Contacts: gold-plated

Diagrams and graphs

Installation
