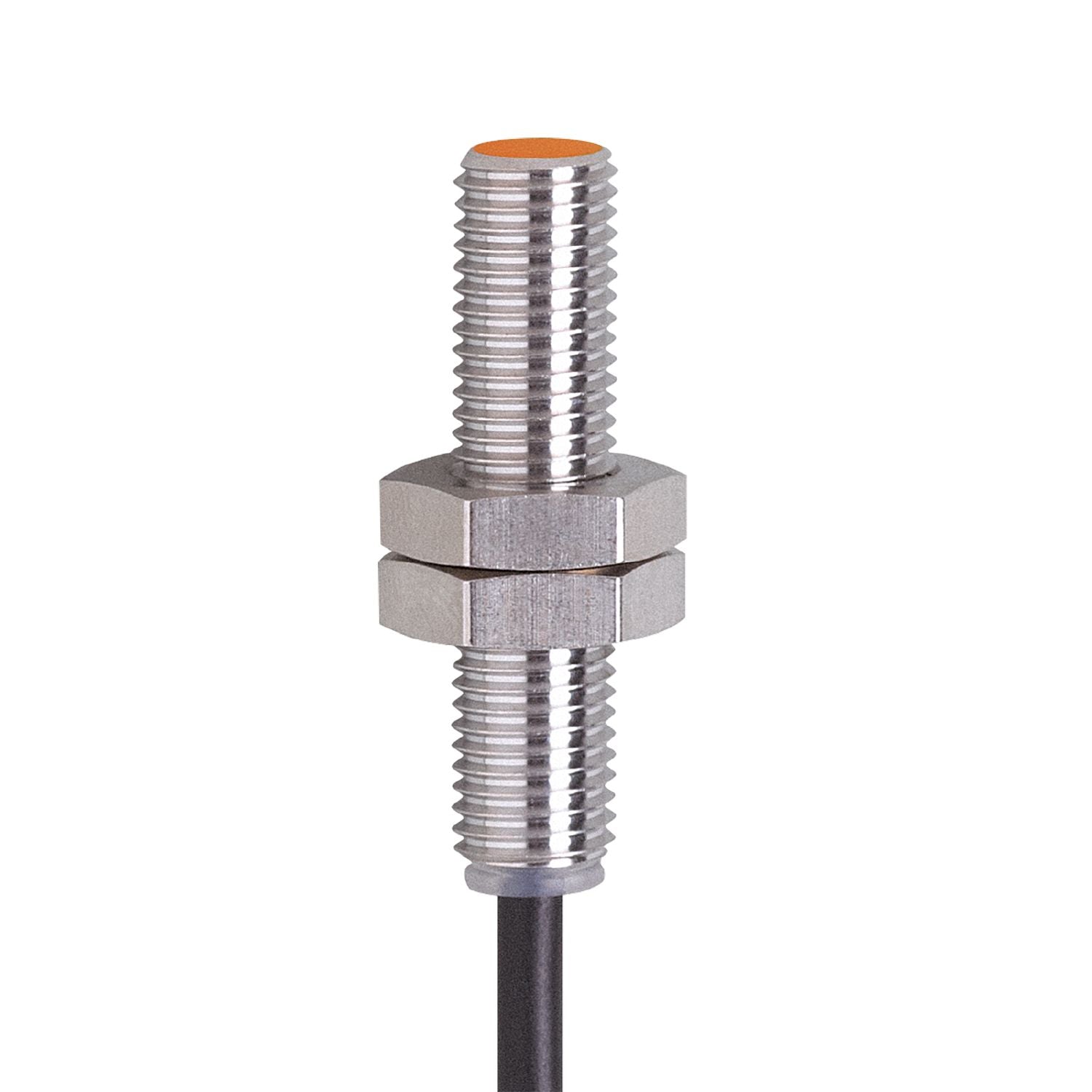

IFM IE5430 - Inductive sensor IEB3001-BPKG/3M/ZH/RT

Particularly short housing for use where space is restricted.
Robust metal housing for use in harsh industrial environments.
Clearly visible indication of the switching status.
Very high switching frequency.
Long sensing range for high uptime

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 35

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	1
Real sensing range Sr [mm]	1 ± 10 %
Operating distance [mm]	0...0.81

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	2804

Weight [g]	61.7
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 35
Thread designation	M8 x 1
Materials	threaded sleeve: brass white bronze coated; sensing face: PBT; end cap: TPU
Tightening torque [Nm]	A = 5 mm: 1 Nm; B: 2 Nm

Displays / operating elements

Display	switching status 1 x LED, red

Accessories

Items supplied	lock nuts: 2

Remarks
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 3 m, PUR; 3 x 0.14 mm²

Diagrams and graphs

Installation
