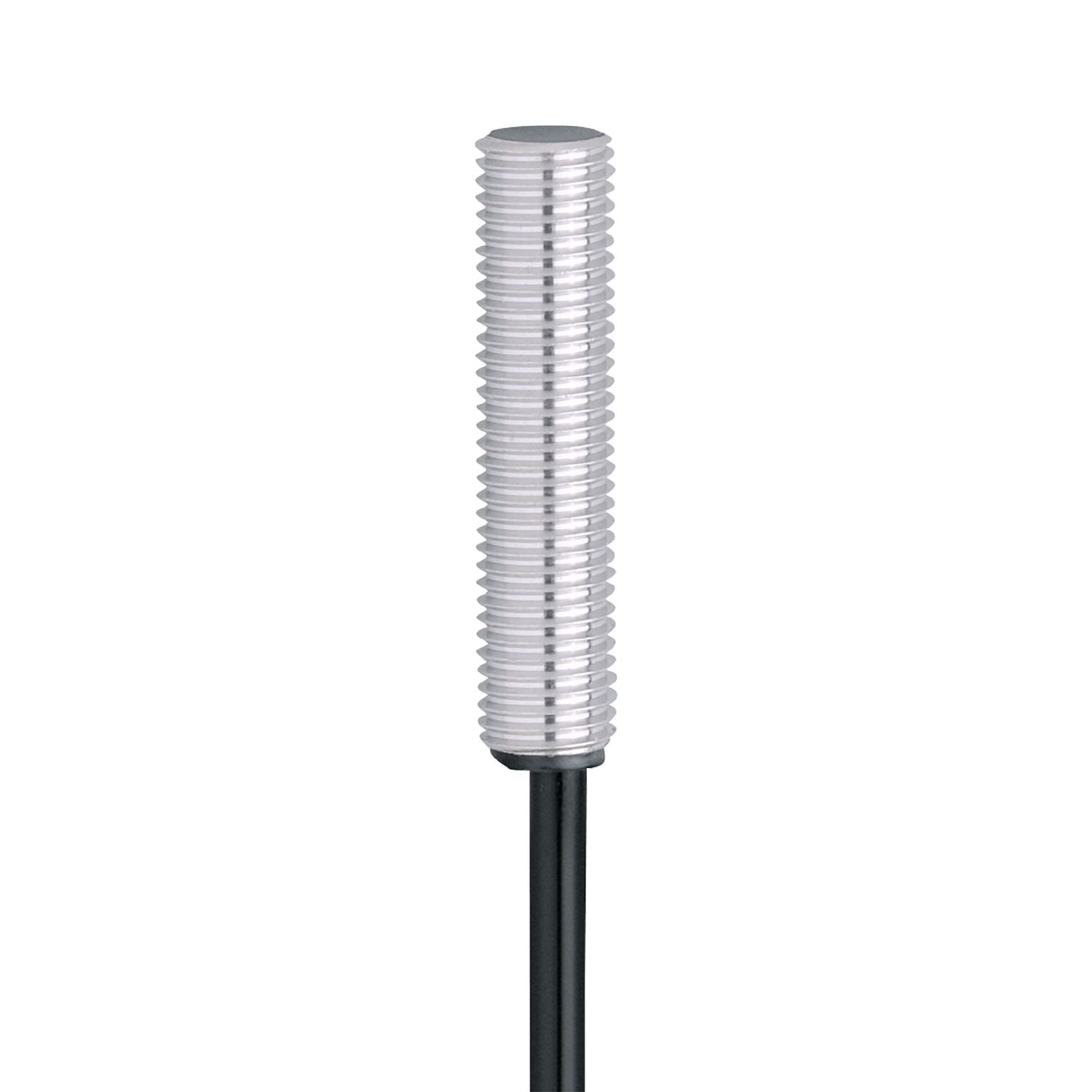

IFM IE5440 - Inductive sensor IEBC003BASKG/0,27M/XHP-4

Particularly short housing for use where space is restricted.
Robust metal housing for use in harsh industrial environments.
Clearly visible indication of the switching status.
Very high switching frequency.
Long sensing range for high uptime

Electrical design	PNP/NPN
Output function	normally open
Sensing range [mm]	3
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 37

Operating voltage [V]	10...30 DC;("supply class 2" to cURus)
Current consumption [mA]	< 10;(only in 3-wire operation)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.8
Minimum load current [mA]	2;(only in 2-wire operation)
Max. leakage current [mA]	0.5;(only in 2-wire operation)
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	3
Operating distance [mm]	0...2.4

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	0...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1517
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	21
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 37
Thread designation	M8 x 1
Materials	brass white bronze coated; sensing face: LCP

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.23 m, PVC; 3 x 0.14 mm²
Connection	Connector: 1 x JST (XHP-4)
