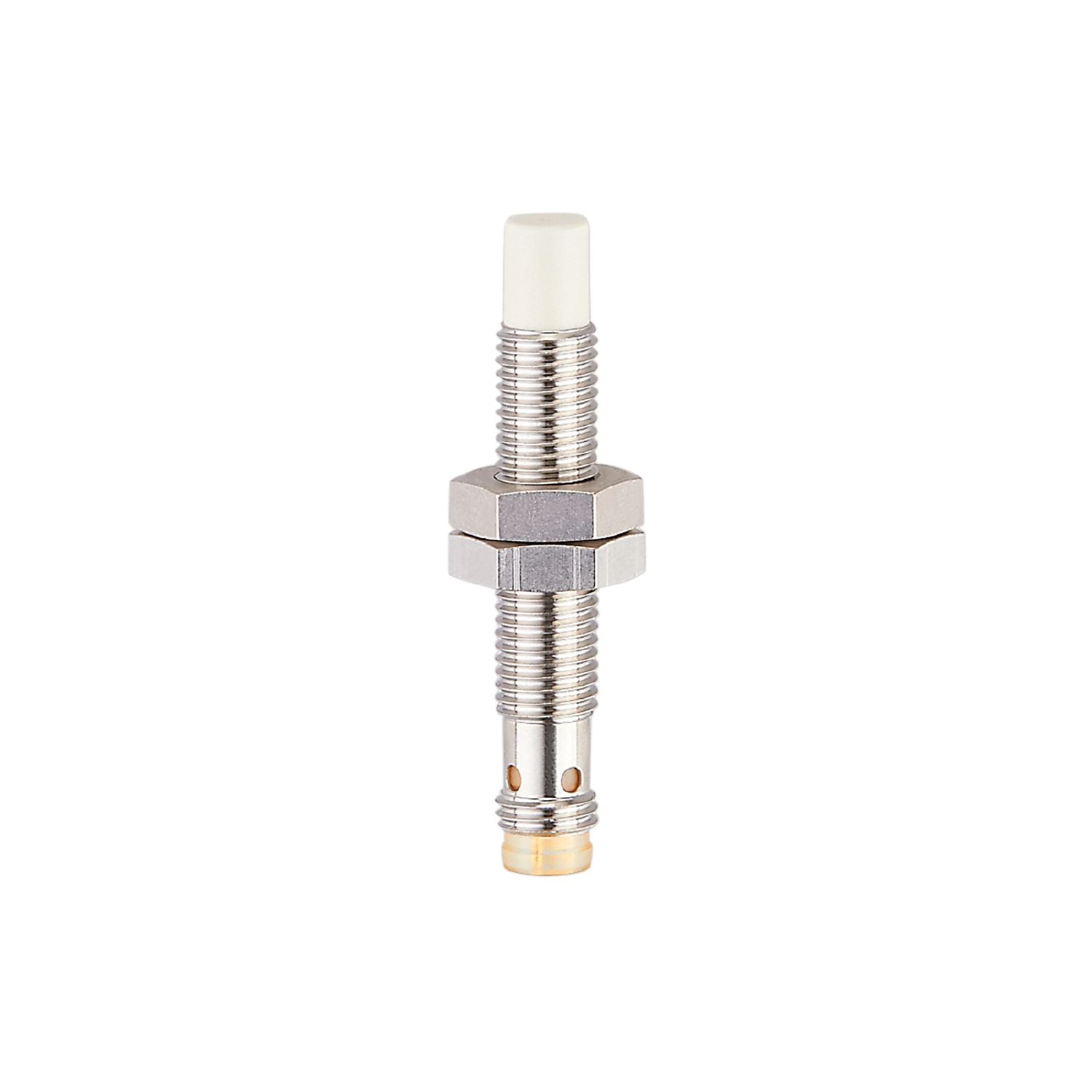

IFM IE5456 - Inductive sensor with IO-Link IEK3006-FRKG/IO/AS

Clearly visible indication of the readiness for operation.
Long sensing range for high uptime.
High protection rating for the requirements of harsh industrial environments

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 50

Special feature	Gold-plated contacts

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	600
Short-circuit protection	yes
Overload protection	yes

Detection zone

Switch point IO-Link [mm]	1.13...5.61;(parameterisable)
Measuring range IO-Link [mm]	0.6...6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]	3...15
Note on hysteresis	parameterisable
Linearity error IO-Link [%]	± 3;(of the final value of the measuring range)
Repeatability IO-Link [%]	± 2;(of the final value of the measuring range)
Temperature drift	± 10 %;(of the final value of the measuring range)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.2
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 2
IO-Link functions (acyclical)	switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDs	Type of operation DeviceID default 1274
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-40...75
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K;(with ifm socket duly screwed on)

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Vibration resistance	EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance	EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 Eb 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles
Salt spray test	EN 60068-2-52 Kb severity level 5 (4 test cycles)
MTTF [years]	778
Embedded software included	yes
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A031 File number UL E174191

Weight [g]	15.3
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M8 x 1 / L = 50
Thread designation	M8 x 1
Materials	stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	A = 5 mm: < 3 Nm; B: < 5 Nm

Displays / operating elements

Display	switching status 4 x LED, yellow lights

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A; Contacts: gold-plated

Diagrams and graphs

Installation
