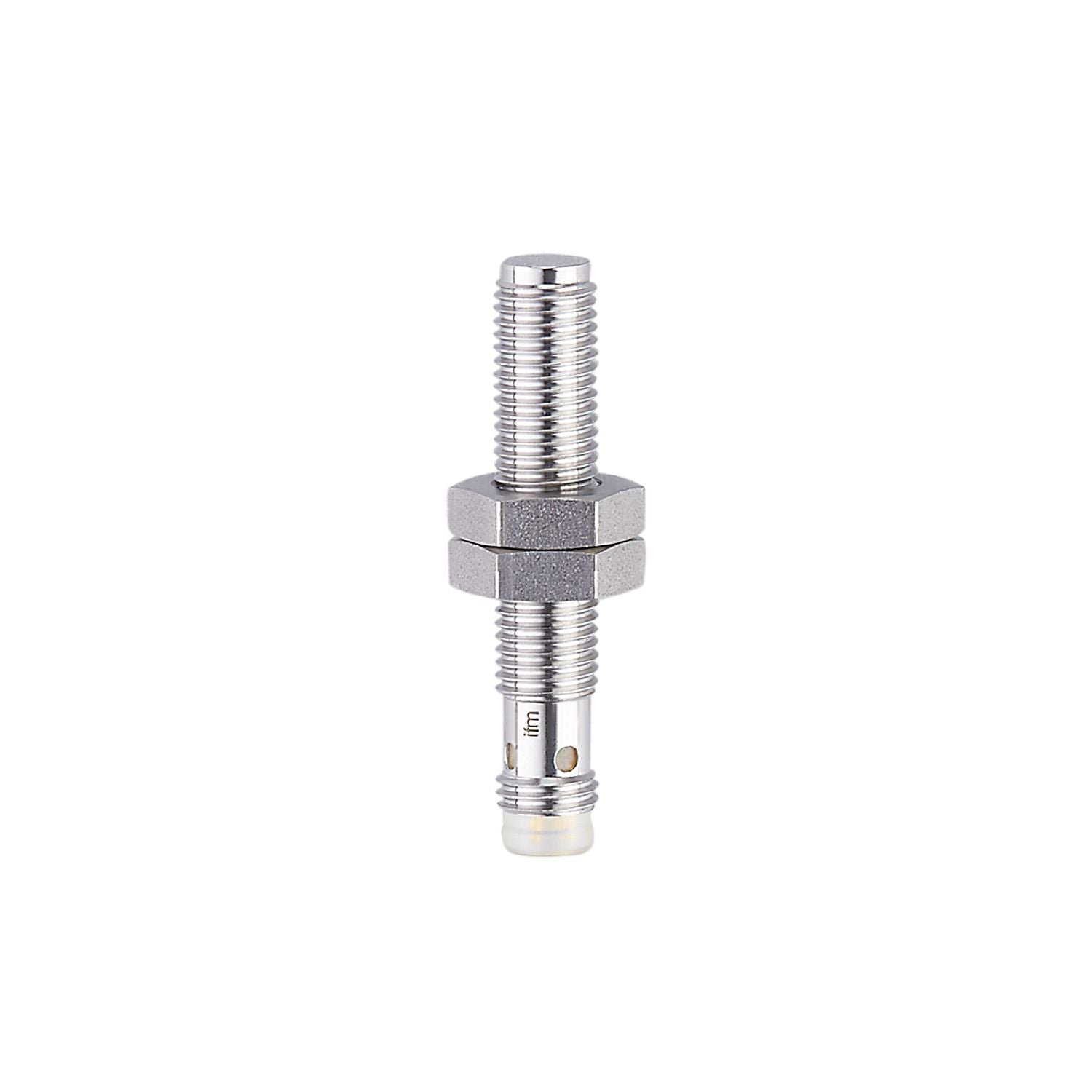

IFM IEC211 - Inductive full-metal sensor IEB3003QBPKG/AM/P/AS

For use in machine tools and metalworking.
Resistant to oils and coolants.
Metal sensing face for heavy duty.
Clearly visible indication of the switching status.
Safe detection due to large sensing range and low sensor tolerances

Electrical design	PNP
Output function	normally open
Sensing range [mm]	3
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 45

Special feature	Gold-plated contacts; Increased sensing range; Full-metal housing
Application	Use in machine tools, coolants and lubricants
Pressure rating [bar]	50
Note on pressure rating	sensing face

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	250
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	3
Real sensing range Sr [mm]	3 ± 10 %
Operating distance [mm]	0...2.43
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.9 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K;(with ifm socket duly screwed on)

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Vibration resistance	EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance	EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles
Salt spray test	EN 60068-2-52 Kb severity level 5 (4 test cycles)
MTTF [years]	1261
Embedded software included	yes
UL approval	Ta -25...85 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A017 File number UL E174191

Weight [g]	15.7
Housing	threaded type
Mounting	quasi flush
Dimensions [mm]	M8 x 1 / L = 45
Thread designation	M8 x 1
Materials	stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PPSU; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	5
Full-metal housing	yes

Displays / operating elements

Display	switching status 4 x 90° LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A; Contacts: gold-plated

Diagrams and graphsifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IEC211-00 — 05.11.2020 —
