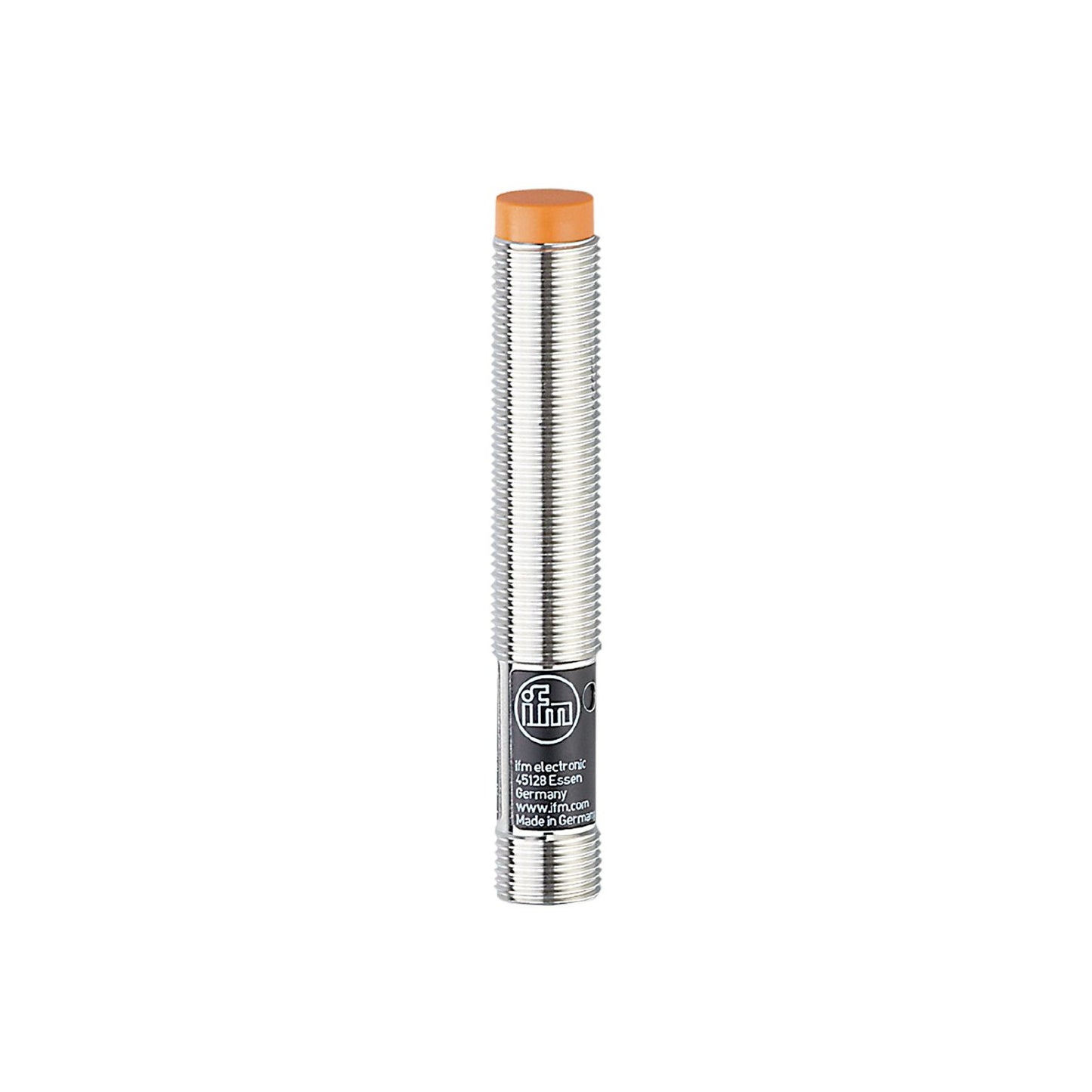

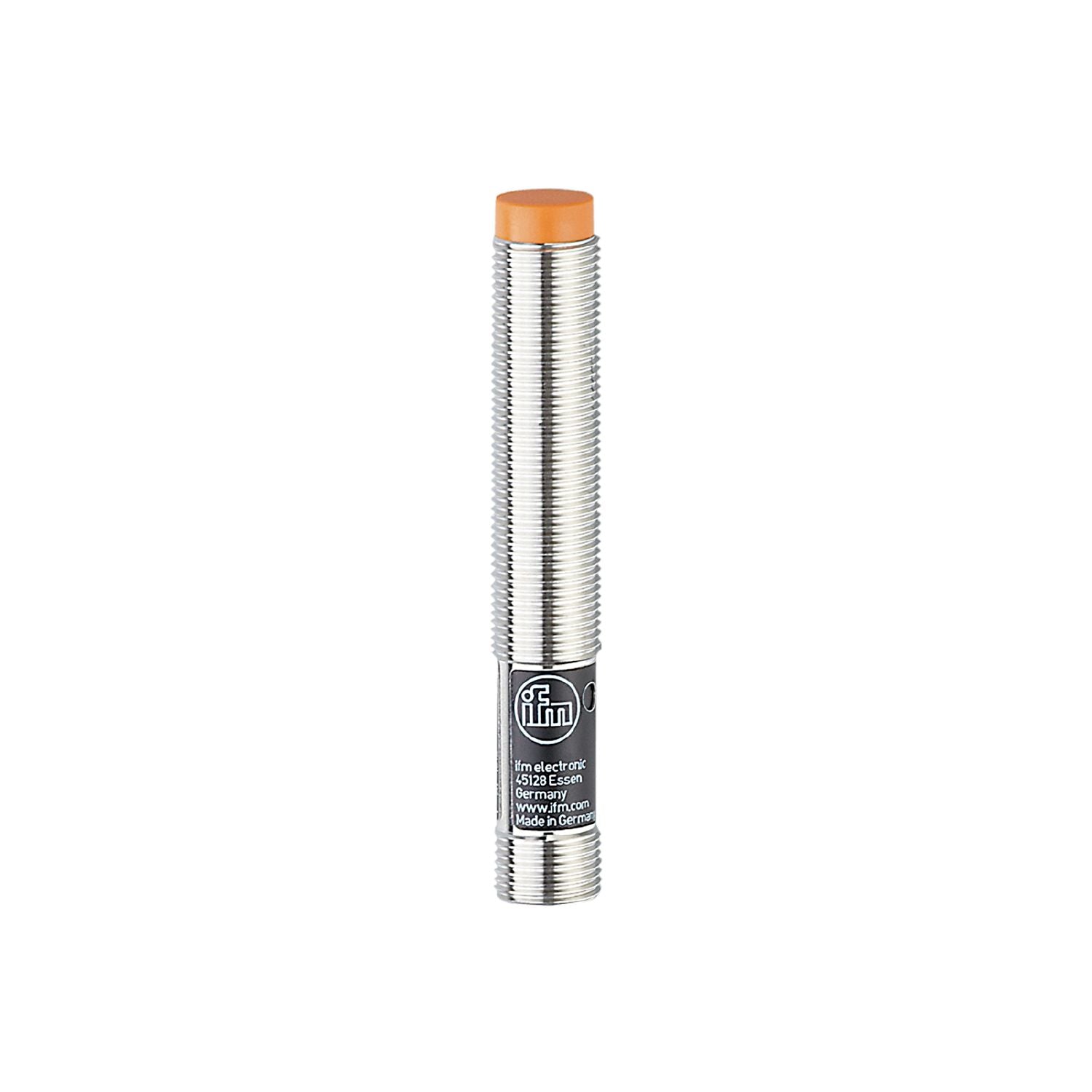

IFM IF0300 - Inductive sensor IFA2004-ABOW/SL/BS-400B

With AC output for use in AC power mains.
Wide AC operating voltage range.
Robust metal housing for use in harsh industrial environments.
Clearly visible indication of the switching status.
For a precise position detection on machines

Output function	normally open
Sensing range [mm]	4
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 77

Frequency AC [Hz]	45...65
Operating voltage [V]	20...250 AC
Protection class	I
Reverse polarity protection	no

Outputs

Output function	normally open
Max. voltage drop switching output AC [V]	8.5
Minimum load current [mA]	8
Max. leakage current [mA]	2
Permanent current rating of switching output AC [mA]	200;(250 (...50 °C))
Short-time current rating of switching output [mA]	900;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.24

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	932

Weight [g]	33.1
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1 / L = 77
Thread designation	M12 x 1
Materials	brass white bronze coated; sensing face: PBT natural; LED window: PBT natural; Nuts: brass white bronze coated
Tightening torque [Nm]	A = 3 mm: 3,5 Nm; B: 7 Nm

Displays / operating elements

Display	switching status 1 x LED, red

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied	lock nuts: 2

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: B

Diagrams and graphs

Installation
