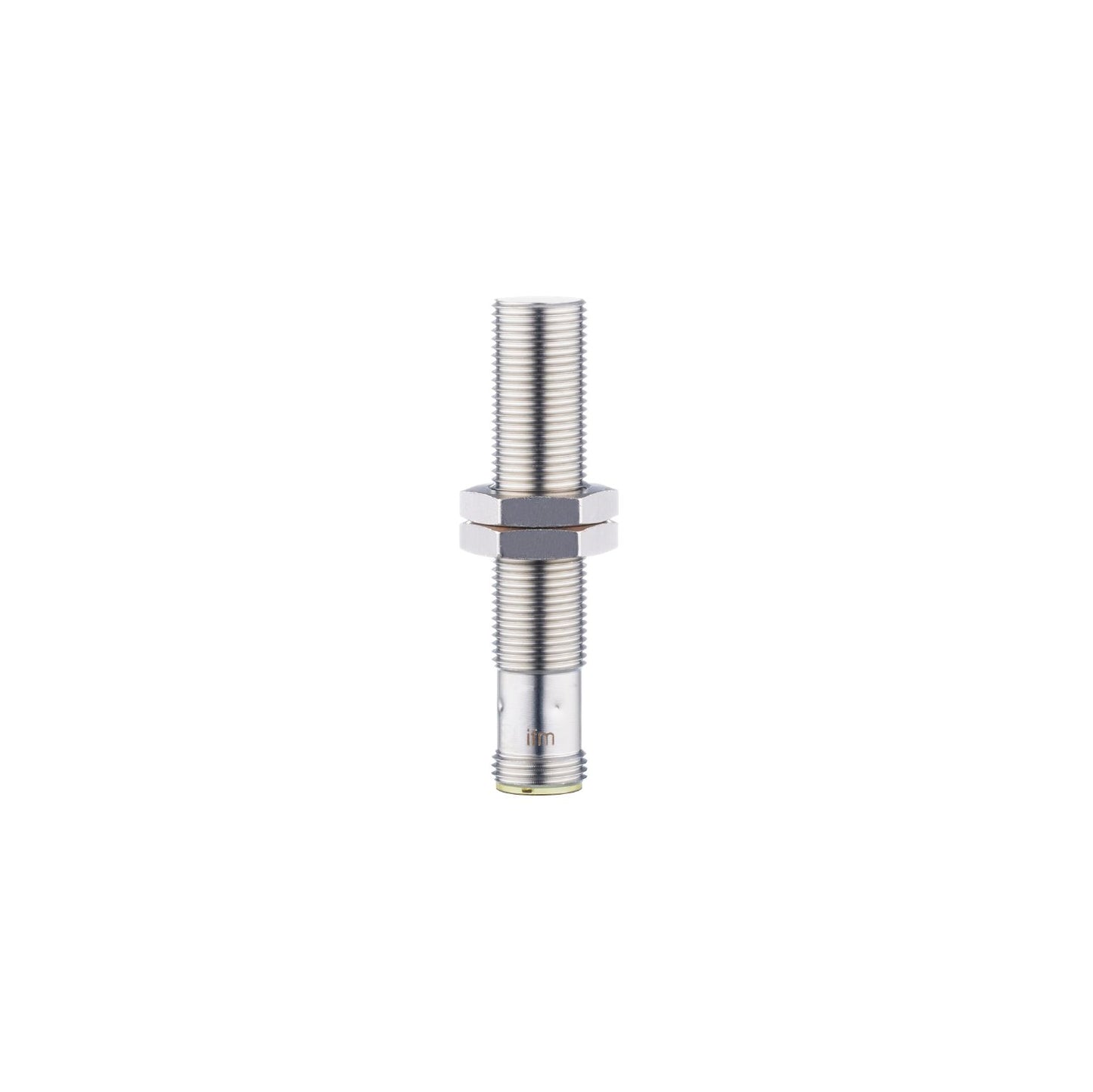

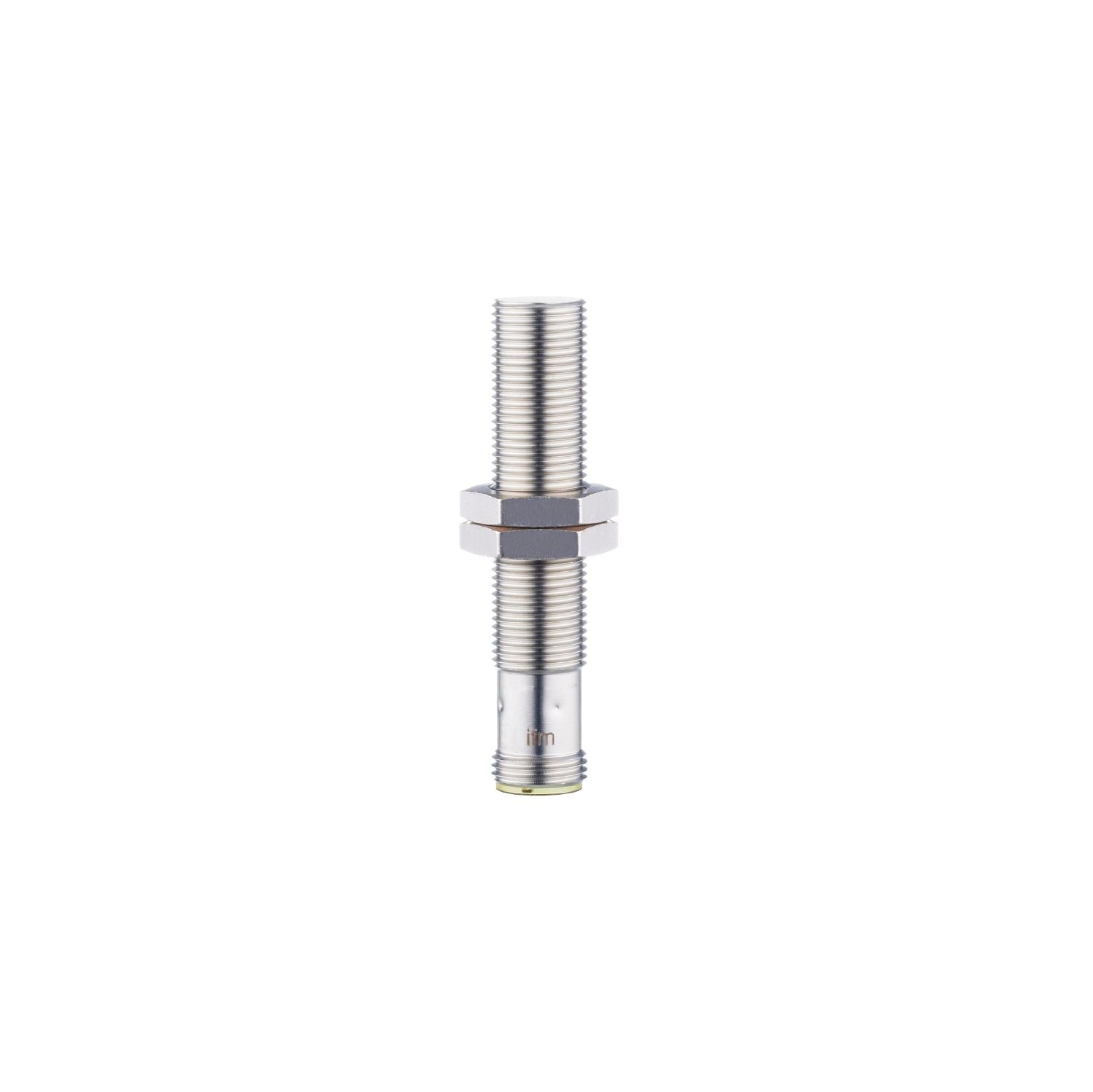

IFM IF5514 - Inductive sensor IFK3002-BPKG/V4A/US-100/OLED

Wide operating temperature range.
Food-grade housing materials.
Very high switching frequency.
High protection rating for the requirements of harsh industrial environments.
Robust stainless steel housing for use in the food and beverage industry

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 59

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Short-time current rating of switching output [mA]	200
Switching frequency DC [Hz]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	1083

Weight [g]	28.2
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M12 x 1 / L = 59
Thread designation	M12 x 1
Materials	stainless steel (1.4571/316Ti ); sensing face: PBT
Tightening torque [Nm]	10

Accessories

Items supplied	lock nuts: 2, stainless steel

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

Installation
