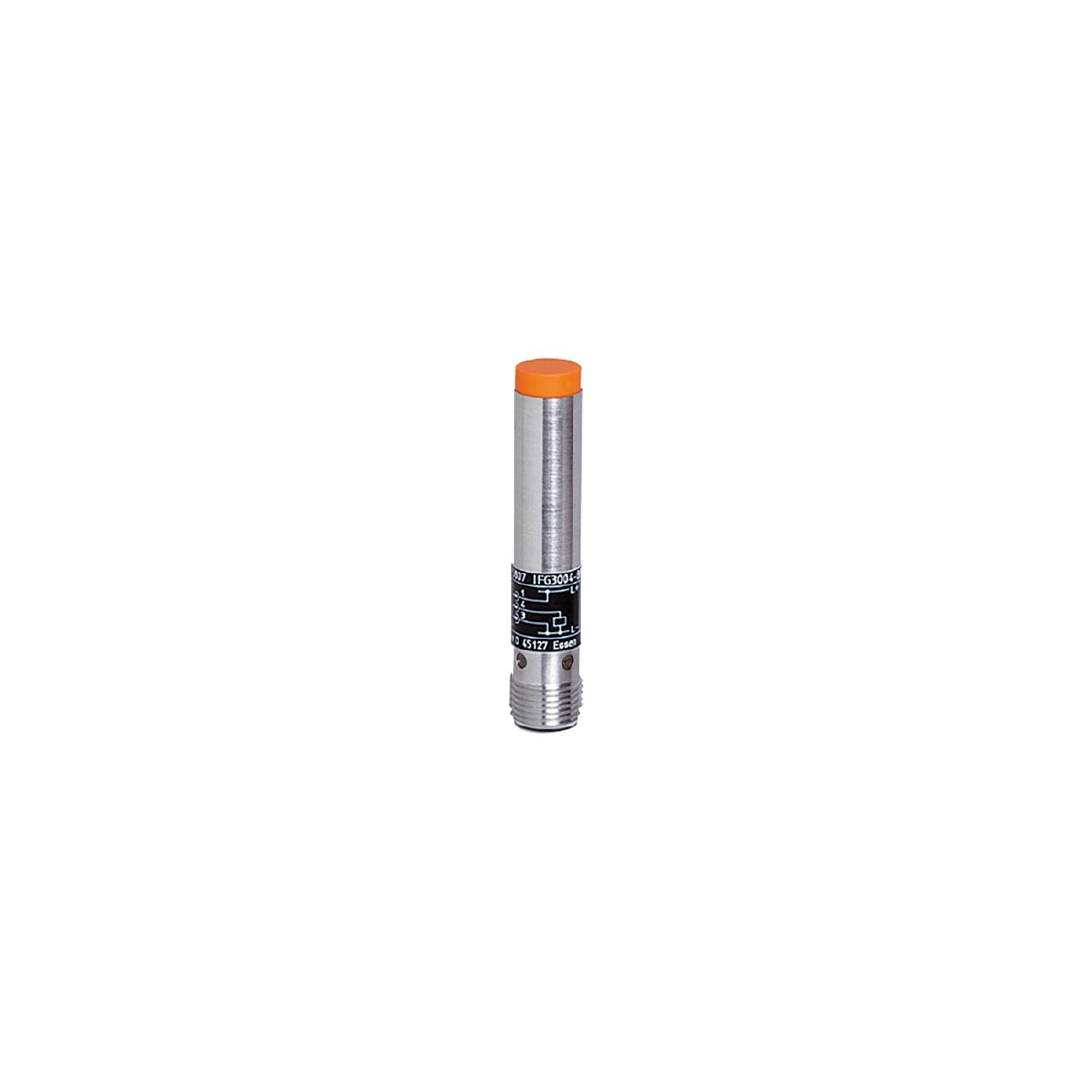

IFM IF5807 - Inductive sensor IFG3004-BPKG/V4A/US-104-DPS

Smooth stainless steel housing for use in the food and beverage industry.
Wide operating temperature range.
Very high switching frequency.
Clearly visible indication of the switching status.
High protection rating for the requirements of harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	4
Housing	cylindrical
Dimensions [mm]	Ø 11 / L = 60

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	1400
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.25

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1971

Weight [g]	15.4
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 11 / L = 60
Materials	stainless steel (1.4571/316Ti ); PC

Displays / operating elements

Display	switching status 4 x 90° LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
