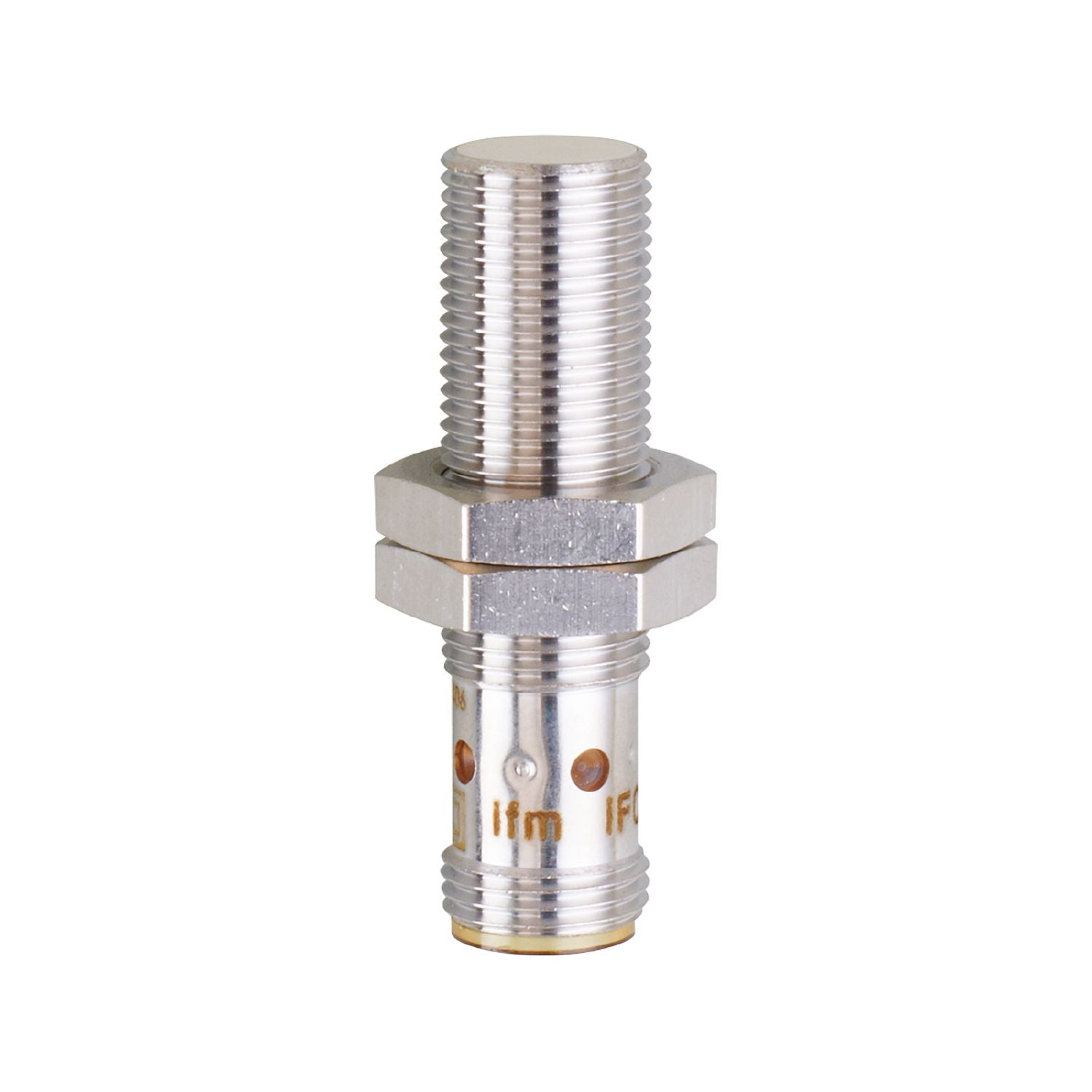

IFM IF5815 - Inductive sensor IFB3002-BPKG/V4A/US-100-DPS/AU

Wide operating temperature range.
Robust stainless steel housing for use in the food and beverage industry.
Very high switching frequency.
High protection rating for the requirements of harsh industrial environments.
For a precise position detection on machines

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	threaded type
Dimensions [mm]	M12 x 1 / L = 44

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	1200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	2778

Weight [g]	24.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M12 x 1 / L = 44
Thread designation	M12 x 1
Materials	stainless steel (1.4571/316Ti ); sensing face: PBT uncoloured

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IF5815-00 — 13.04.2023 —
