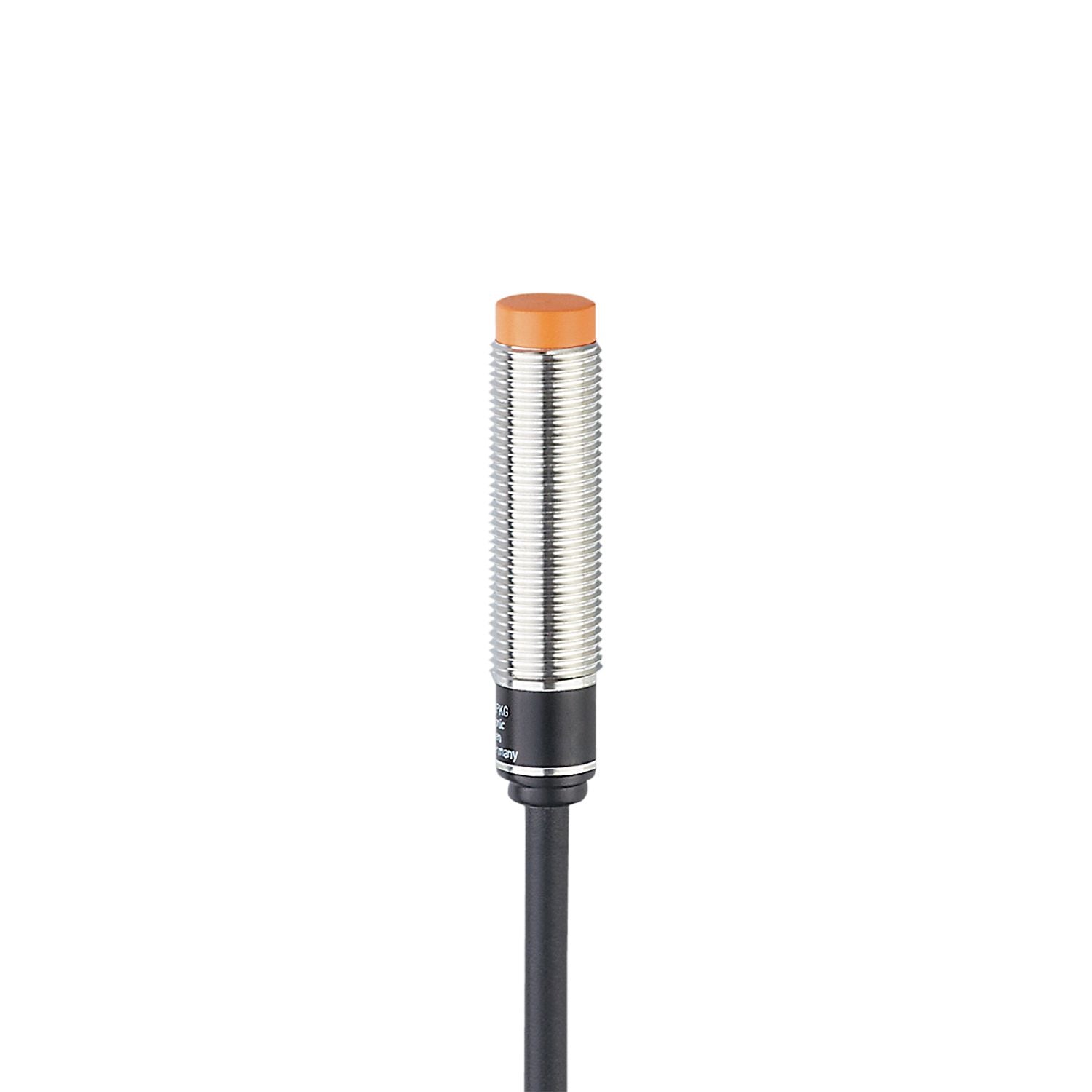

IFM IF5933 - Inductive sensor IFK3007-BPKG/6M/BH

Robust metal housing for use in harsh industrial environments.
With long PVC cable.
Clearly visible indication of the switching status.
Very high switching frequency.
Long sensing range for high uptime

Electrical design	PNP
Output function	normally open
Sensing range [mm]	7
Housing	threaded type
Dimensions [mm]	M12 x 1

Special feature	Halogen-free; Increased sensing range

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	7
Real sensing range Sr [mm]	7 ± 10 %
Operating distance [mm]	0...5.7
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1865

Weight [g]	227.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1
Thread designation	M12 x 1
Materials	brass nickel-plated; PC

Displays / operating elements

Display	switching status 1 x LED, red

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, PUR, Halogen-free; 3 x 0.34 mm²
