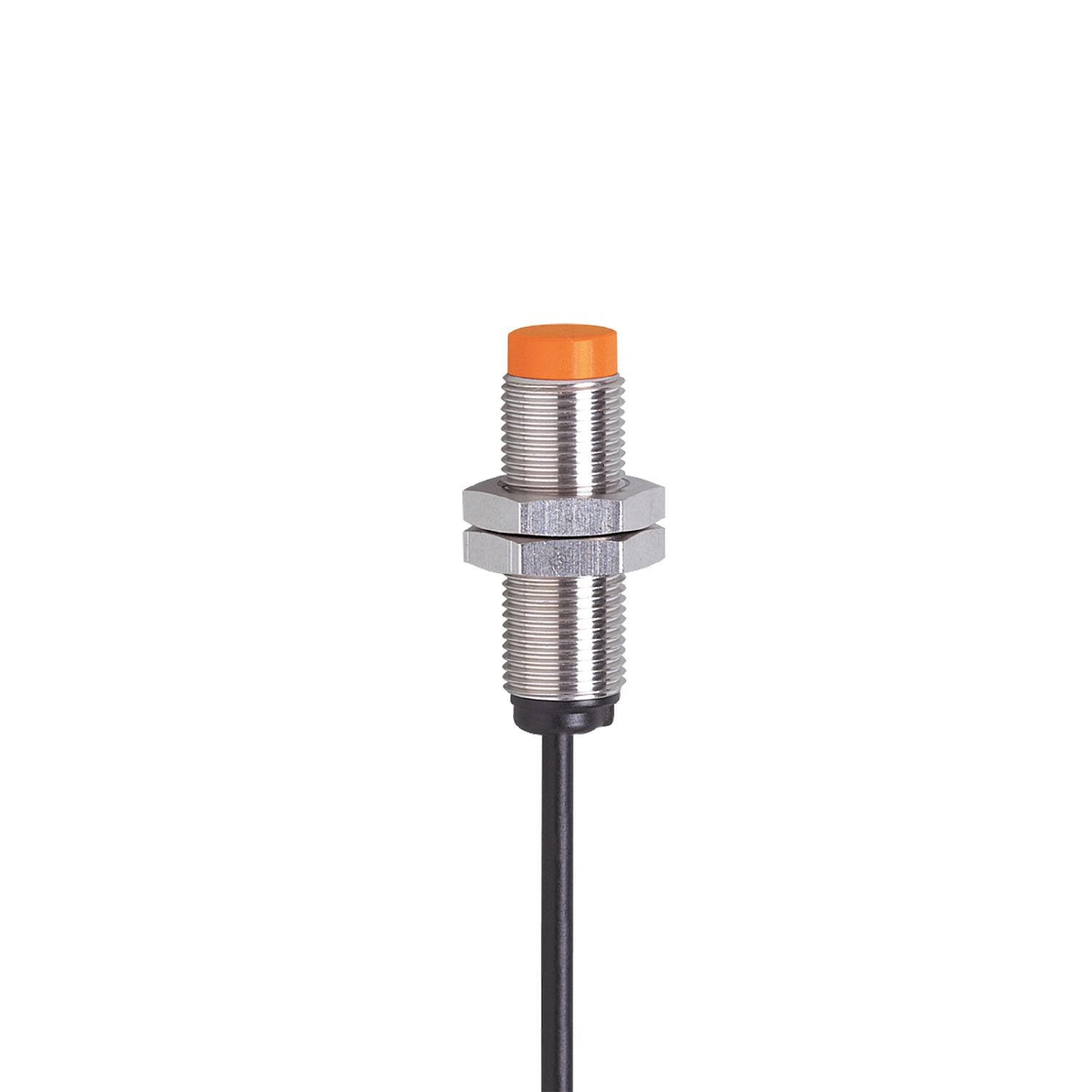

IFM IF6024 - Inductive sensor IFB35,5-APKG/O.LED

Particularly short housing.
For use where space is restricted.
Robust metal housing for use in harsh industrial environments.
Very high switching frequency.
For a precise position detection on machines

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	5.5
Housing	threaded type
Dimensions [mm]	M12 x 1

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	5.5
Real sensing range Sr [mm]	5.5 ± 10 %
Operating distance [mm]	0...4.45

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	10...50
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	3069

Weight [g]	58.2
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M12 x 1
Thread designation	M12 x 1
Materials	brass white bronze coated; PBT

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
