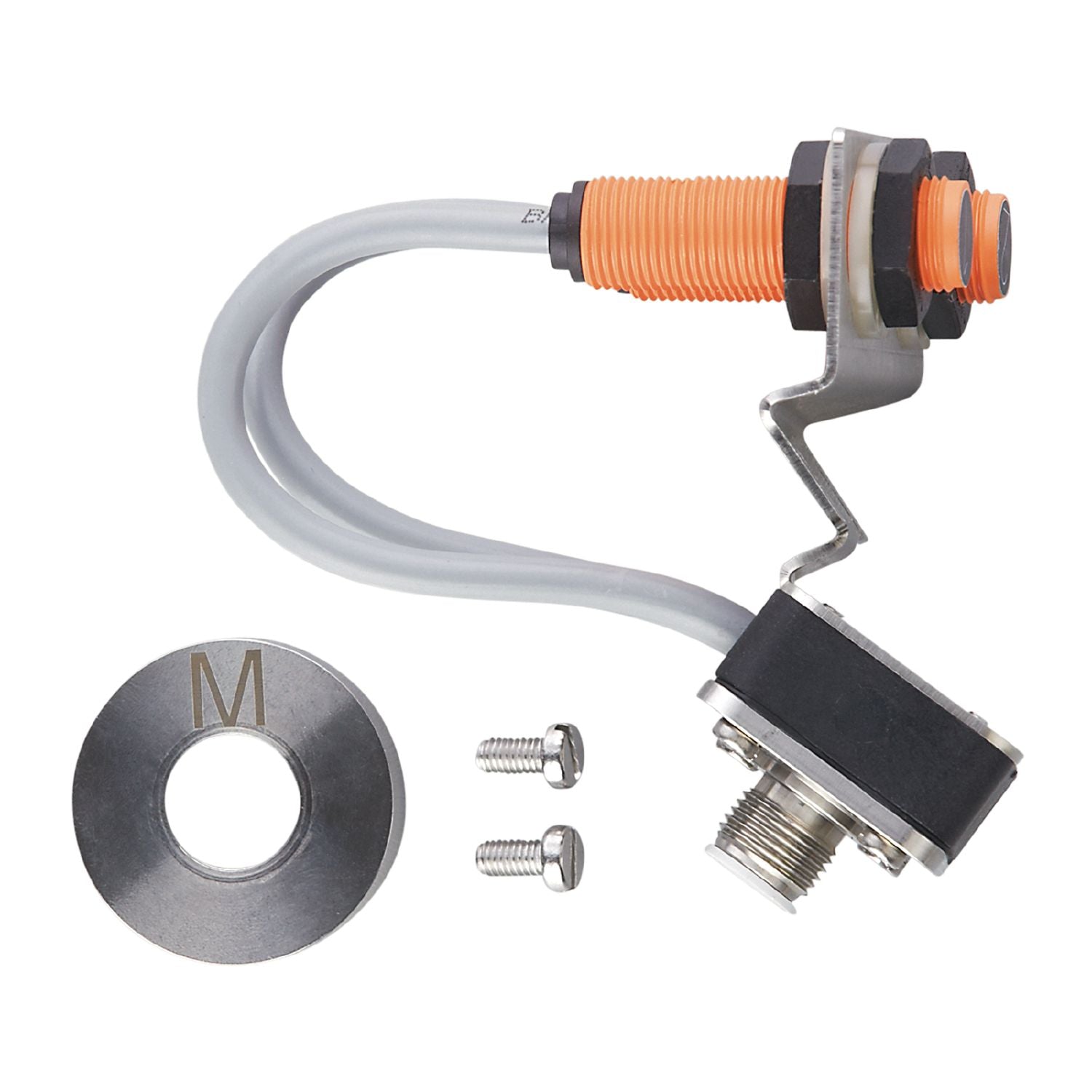

IFM IF7003 - Inductive sensor IFC2004DARKG/US-D-S

For position detection on rising stem valves.
Target puck supplied with the unit.
Very high switching frequency.
Wide operating temperature range.
With only one connector for both switching signals

Dimensions [mm]	M12 x 1

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1356

Weight [g]	143
Dimensions [mm]	M12 x 1
Thread designation	M12 x 1

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IF7003-01 — 13.04.2023 —
