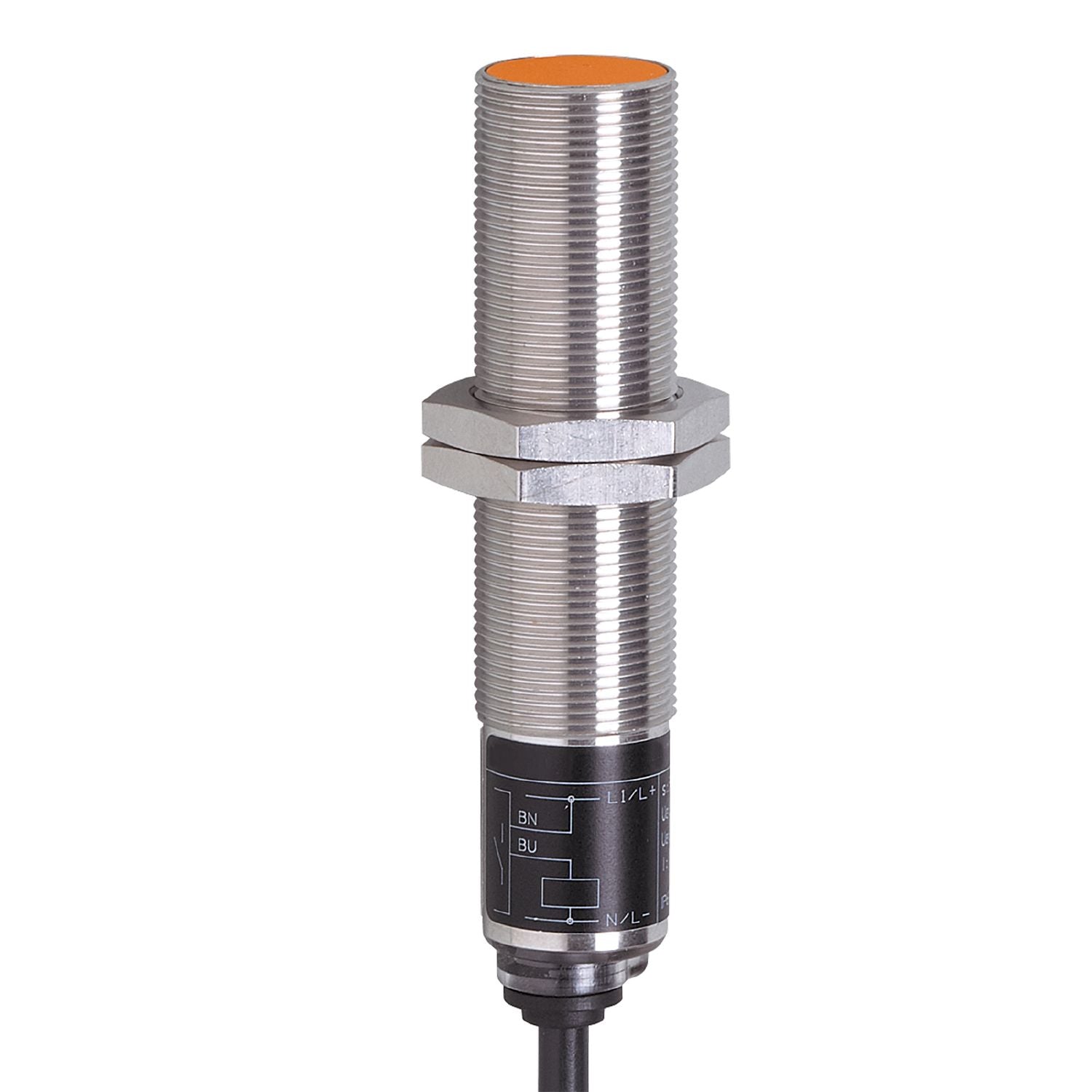

IFM IG0400 - Inductive sensor IGA2005-ARKA

With combined AC/DC output stage.
Large operating voltage range.
Two-wire technology.
Wide operating temperature range.
Robust metal housing for use in harsh industrial environments

Output function	normally open
Sensing range [mm]	5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 82

Operating voltage [V]	75...250 AC / 20...250 DC
Protection class	II
Reverse polarity protection	yes

Outputs

Output function	normally open
Max. voltage drop switching output DC [V]	5.5
Max. voltage drop switching output AC [V]	5.5
Minimum load current [mA]	4
Max. leakage current [mA]	4
Permanent current rating of switching output AC [mA]	100
Permanent current rating of switching output DC [mA]	100
Short-time current rating of switching output [mA]	900;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	50
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	5
Real sensing range Sr [mm]	5 ± 10 %
Operating distance [mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 emission class B
MTTF [years]	397
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	129
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 82
Thread designation	M18 x 1
Materials	threaded sleeve: brass white bronze coated; sensing face: PBT; end cap: PC / TPE

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC, Ø 4.9 mm; 2 x 0.34 mm²
