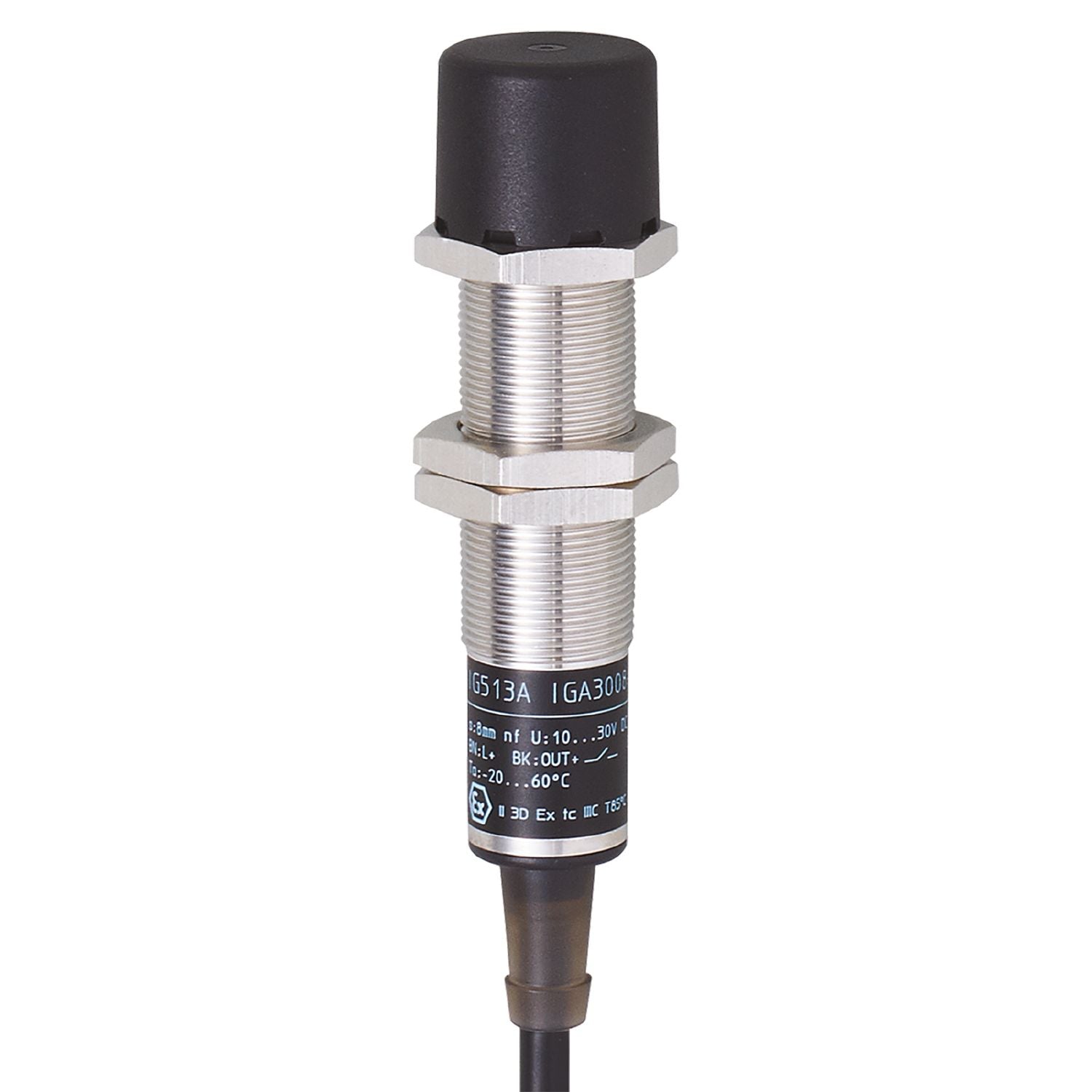

IFM IG513A - Inductive sensor IGA3008-BPKG/3D

For applications in hazardous areas.
High protection rating for the requirements of harsh industrial environments.
Direct connection to plant control without switching amplifier.
With preinstalled protective cover.
Robust metal housing for use in harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 80

Installation	use in hazardous areas only with installed protective cover

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %
Operating distance [mm]	0...6.48

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 67

Tests / approvals

ATEX marking	II 3D Ex tc IIIC T80°C Dc X
EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V IEC 60255-5 1 kV line to line, Ri: 500 Ohm EN 55011 emission class B
MTTF [years]	1853

Weight [g]	193.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 80
Thread designation	M18 x 1
Materials	brass white bronze coated; sensing face: PBT; lock nuts: brass white bronze coated; Protective cover: PA

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 3 Protective cover: 1

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.50 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IG513A — 24.04.2023 —
