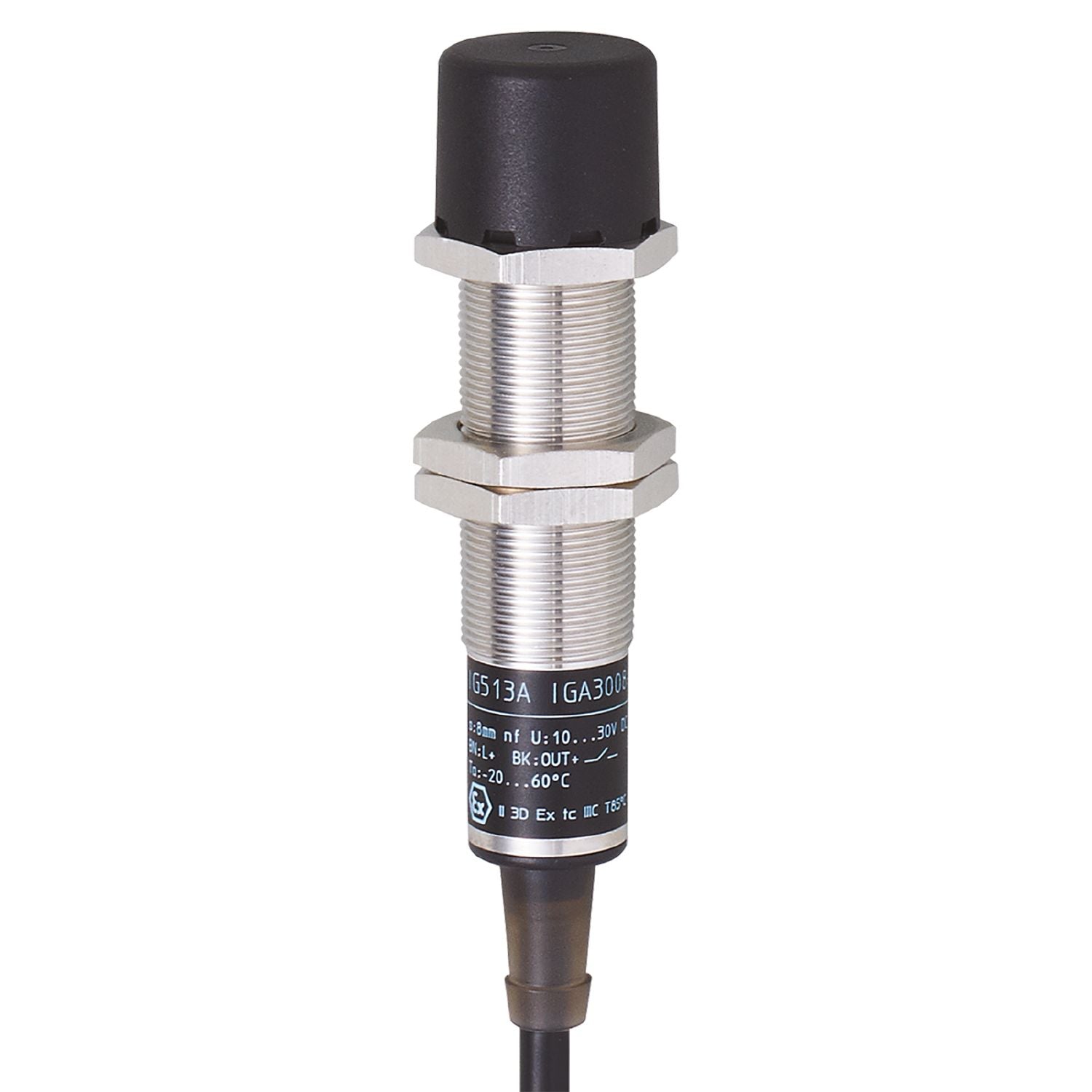

IFM IG515A - Inductive sensor IGA2008-FRKG/3D

For applications in hazardous areas.
Output function normally open / normally closed programmable.
Direct connection to plant control without switching amplifier.
With preinstalled protective cover.
Robust metal housing for use in harsh industrial environments

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 80

Installation	use in hazardous areas only with installed protective cover

Operating voltage [V]	10...30 DC
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	4.6
Minimum load current [mA]	4
Max. leakage current [mA]	0.5
Permanent current rating of switching output DC [mA]	150
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %
Operating distance [mm]	0...6.48

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 67

Tests / approvals

ATEX marking	II 3D Ex tc IIIC T80°C Dc X
EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V IEC 60255-5 1 kV line to line, Ri: 500 Ohm EN 55011 emission class B
MTTF [years]	1674

Weight [g]	179
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 80
Thread designation	M18 x 1
Materials	brass white bronze coated; sensing face: PBT; lock nuts: brass white bronze coated; Protective cover: PA

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 3 Protective cover: 1

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 2 x 0.5 mm²
