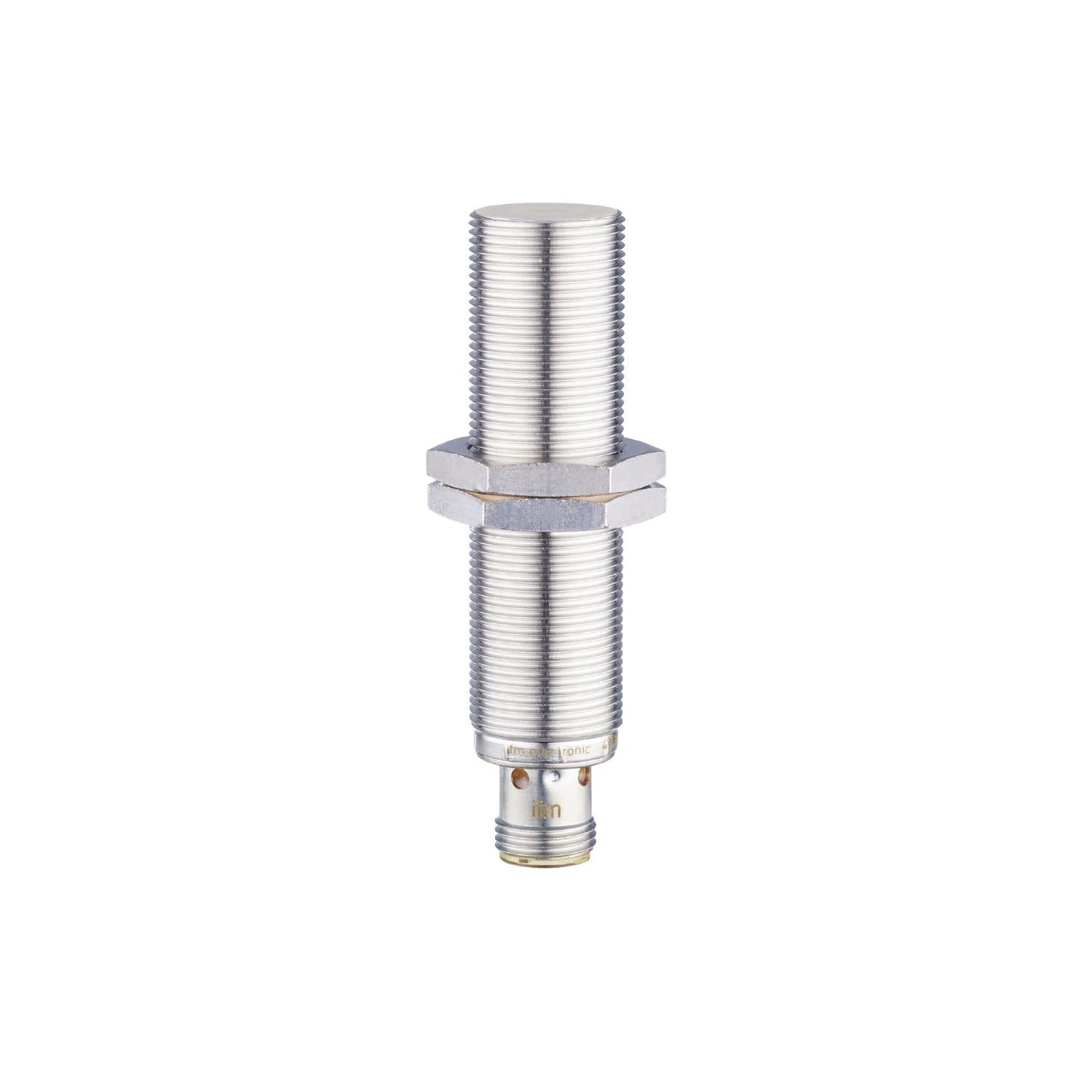

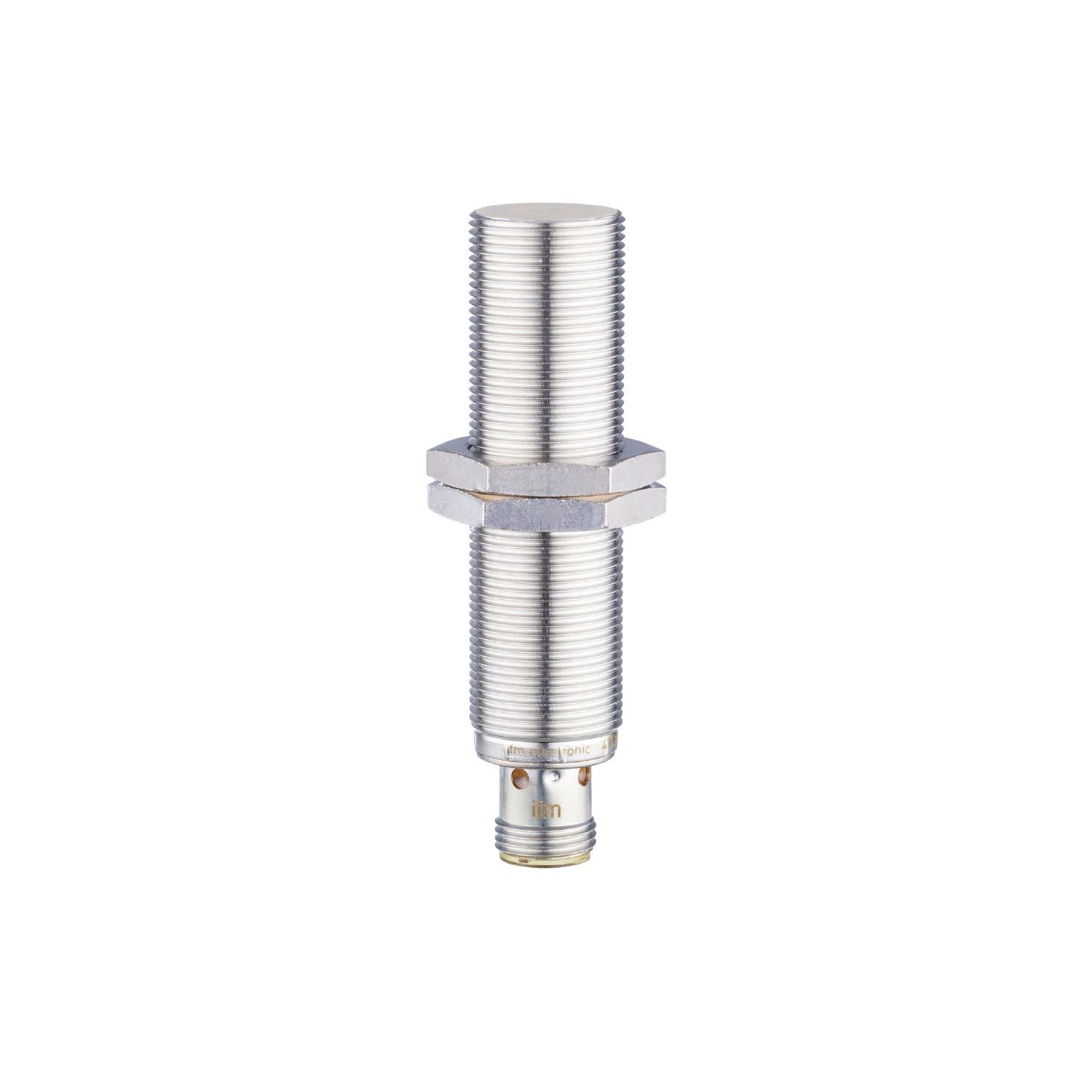

IFM IG5790 - Inductive sensor IGA3005ZBPKG/US-100-DPS

Robust metal housing for use in harsh industrial environments.
Wide operating temperature range.
Very high switching frequency.
High protection rating for the requirements of harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 76

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	700
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	5
Real sensing range Sr [mm]	5 ± 10 %
Operating distance [mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...100
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1884

Weight [g]	37.6
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 76
Thread designation	M18 x 1
Materials	brass nickel-plated; PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
