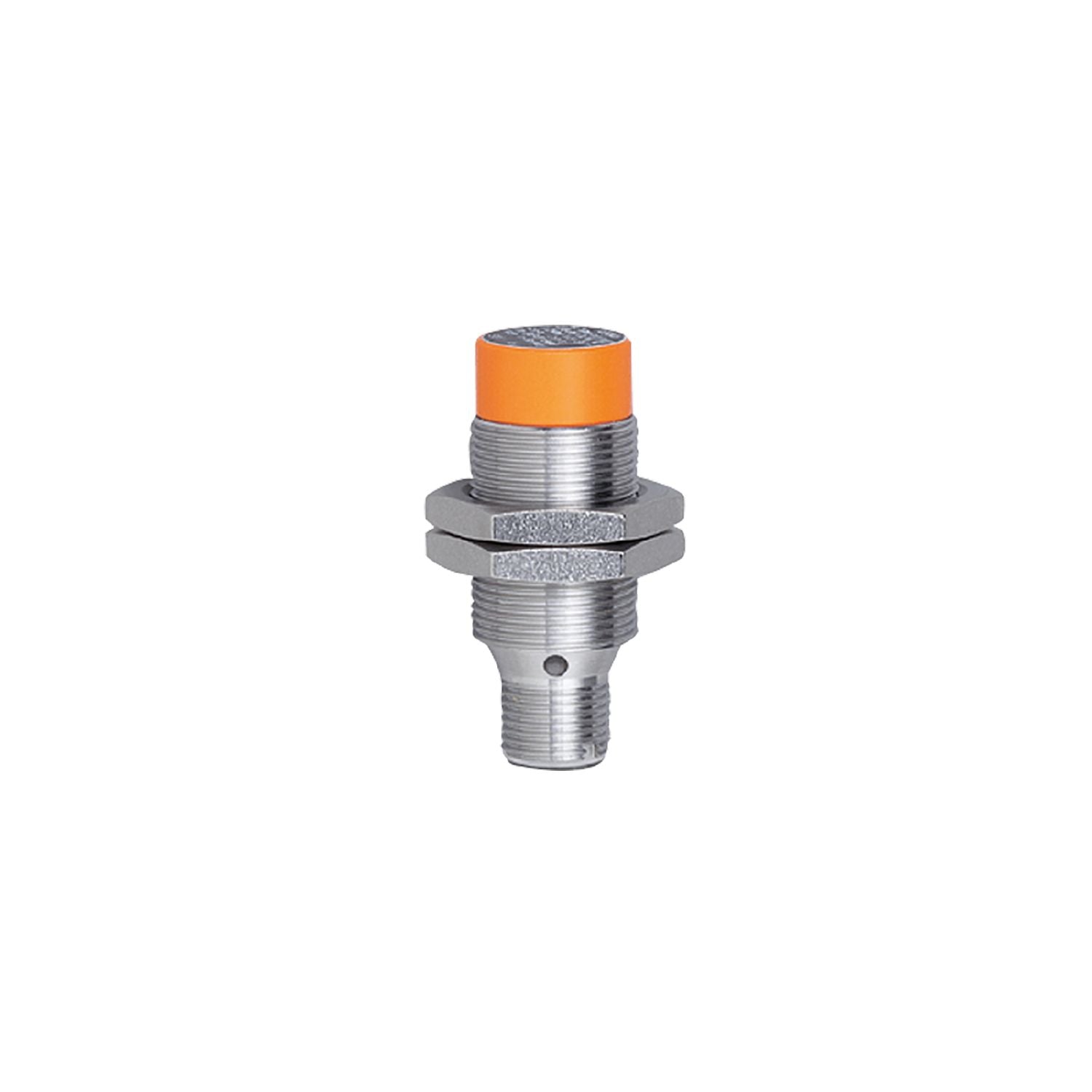

IFM IG5846 - Inductive sensor IGB4010-CPKG/V4A/US-104-DPA

Robust stainless steel housing for use in the food and beverage industry.
Wide operating temperature range.
High protection rating for the requirements of harsh industrial environments.
Complementary output function NO/NC.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	complementary
Sensing range [mm]	10
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 45

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	10
Real sensing range Sr [mm]	10 ± 10 %
Operating distance [mm]	0...8.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 3 V EN 55011 emission class B
MTTF [years]	1447

Weight [g]	41.6
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 45
Thread designation	M18 x 1
Materials	stainless steel (1.4571/316Ti ); sensing face: PBT

Displays / operating elements

Display	switching status 4 x 90° LED, red

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
