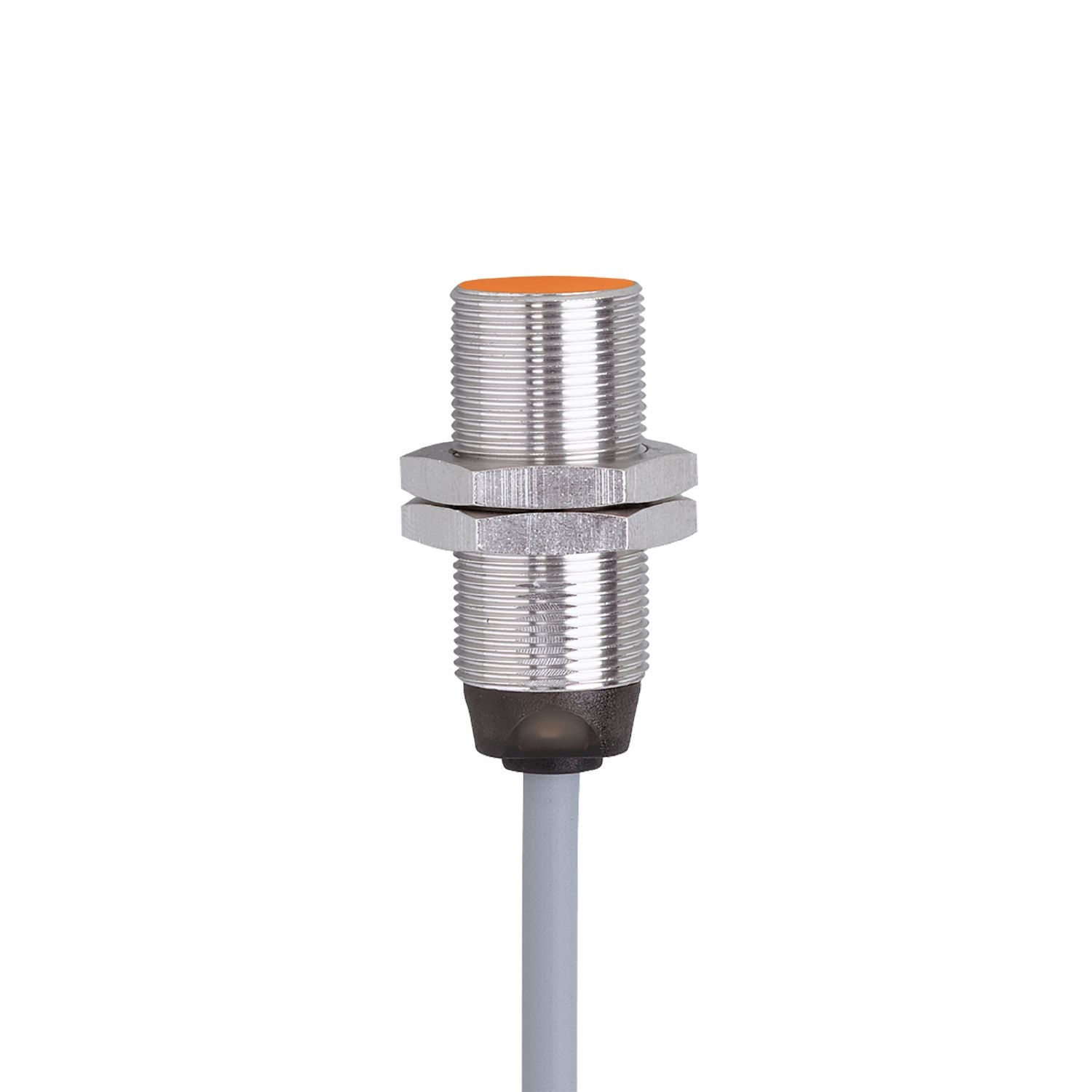

IFM IG5899 - Inductive sensor IGB2008BBROG/UP/6M/PH

Robust metal housing for use in harsh industrial environments.
Two-wire technology.
With long cable

Electrical design	PNP/NPN
Output function	normally closed
Sensing range [mm]	8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 43

Operating voltage [V]	10...36 DC
Protection class	II
Reverse polarity protection	no

Outputs

Electrical design	PNP/NPN
Output function	normally closed
Max. voltage drop switching output DC [V]	5
Minimum load current [mA]	5
Max. leakage current [mA]	1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Short-circuit protection	no
Overload protection	no

Detection zone

Sensing range [mm]	8

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	2673

Weight [g]	303
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 43
Thread designation	M18 x 1
Materials	brass white bronze coated; PC

Displays / operating elements

Display	switching status 1 x LED, red

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, PUR / PVC; 2 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IG5899-00 — 13.04.2023 —
