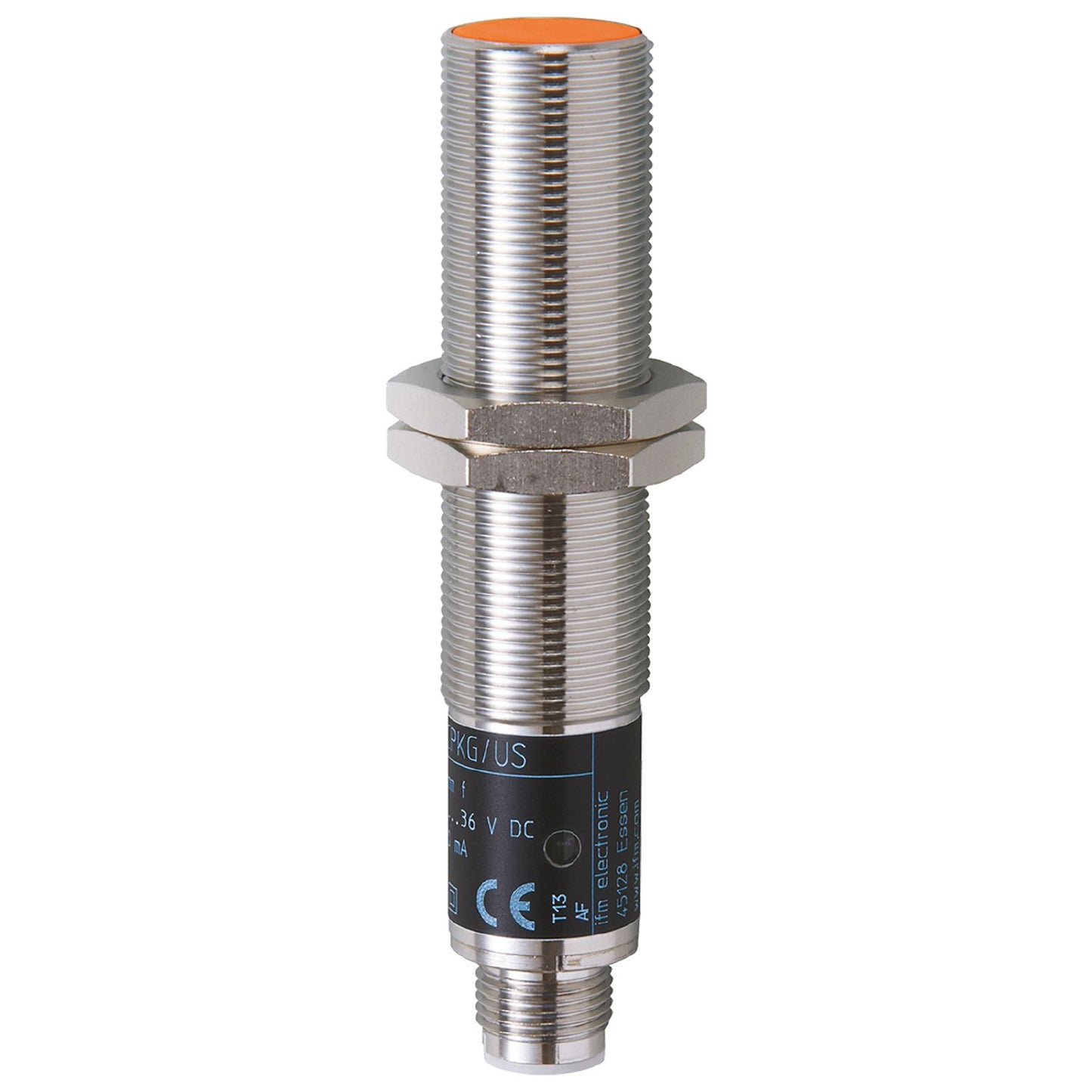

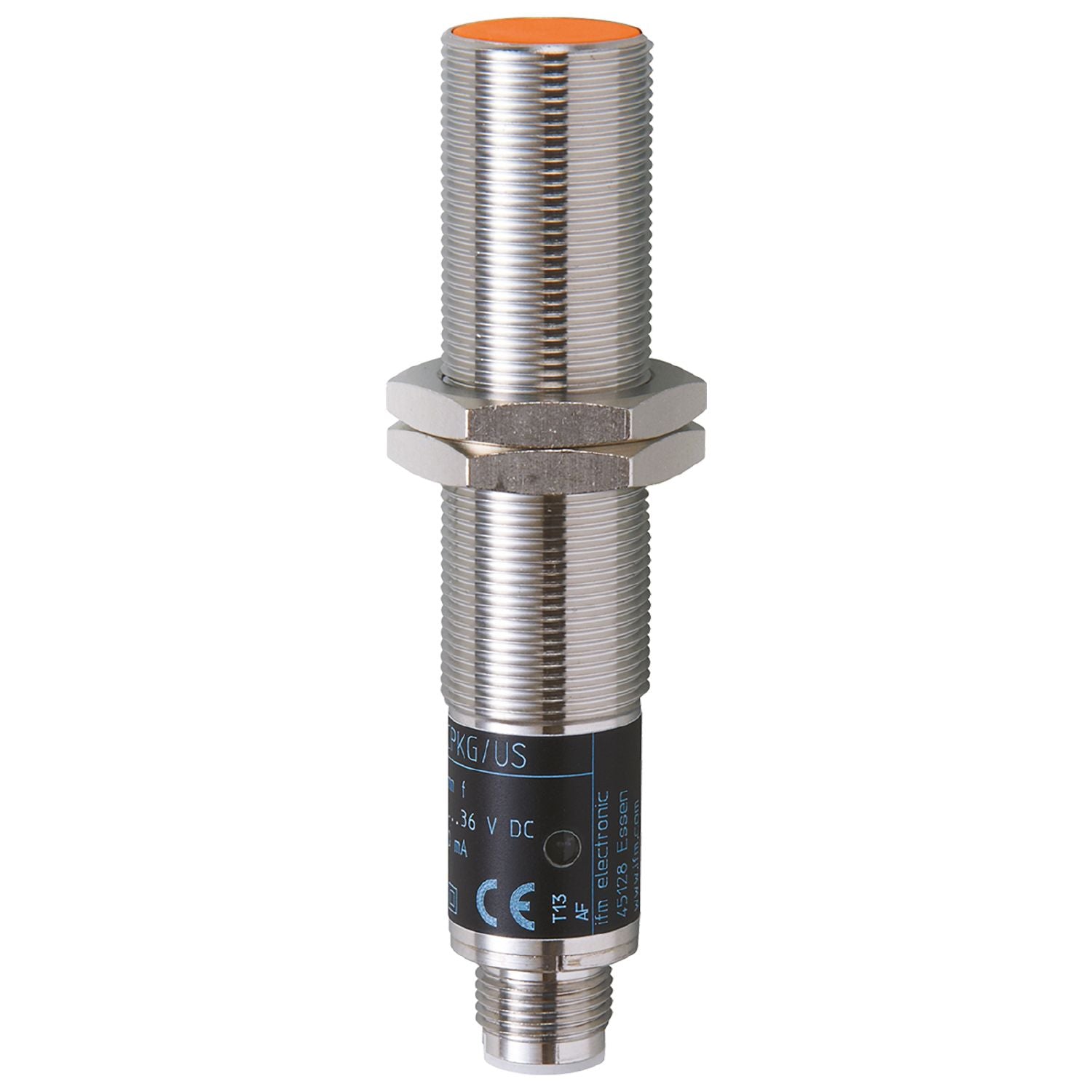

IFM IG6062 - Inductive sensor IGA2005-FRKG/US-100-IRF

Output function normally open / normally closed programmable.
Two-wire technology.
Robust metal housing for use in harsh industrial environments.
Wide operating temperature range.
High noise immunity

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 89

Operating voltage [V]	10...36 DC
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	5.5
Minimum load current [mA]	4
Max. leakage current [mA]	0.8
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	5
Real sensing range Sr [mm]	5 ± 10 %
Operating distance [mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67
Increased immunity	yes

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B VG95373 VDE0160
MTTF [years]	1483

Weight [g]	74.6
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 89
Thread designation	M18 x 1
Materials	brass white bronze coated; PC

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A
