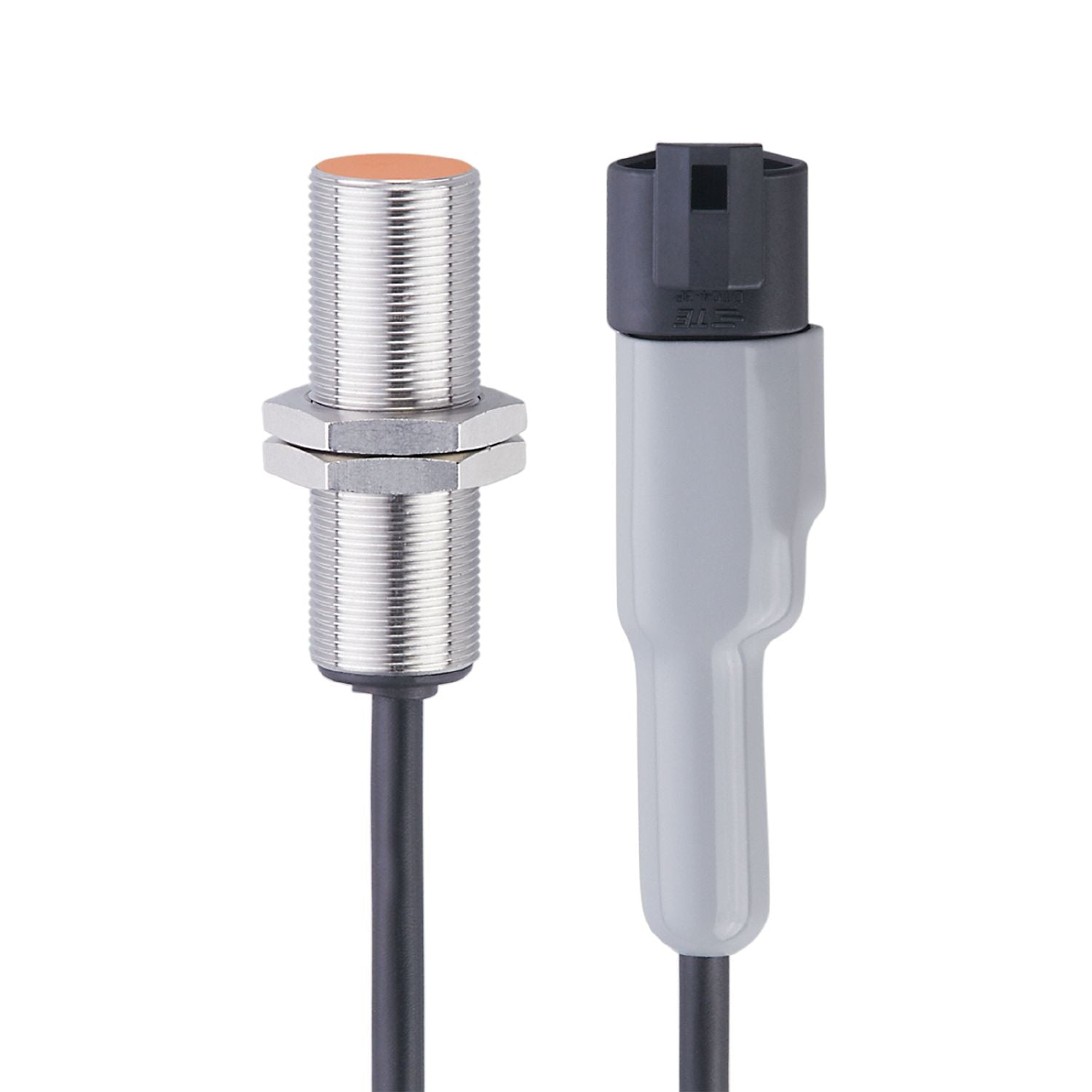

IFM IG6118 - Inductive sensor IGK3008BBPKG/0,47M/PH/DT04-3P

High protection rating for the requirements of harsh industrial environments.
Clearly visible indication of the switching status.
Robust metal housing.
Long sensing range for high uptime.
For a precise position detection on machines

Electrical design	PNP
Output function	normally open
Sensing range [mm]	8
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 54

Special feature	Increased sensing range

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	8
Operating distance [mm]	0...6.48
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...20

Operating conditions

Ambient temperature [°C]	-40...70
Protection	IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV mains line to line EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	1610

Weight [g]	123
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 54
Thread designation	M18 x 1
Materials	housing: brass white bronze coated; sensing face: PBT; end cap: TPU

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.47 m, PUR, Ø 5.4 mm; 3 x 0.5 mm²
Connection	Connector: 1 x DEUTSCH connector (DT04-3P)
