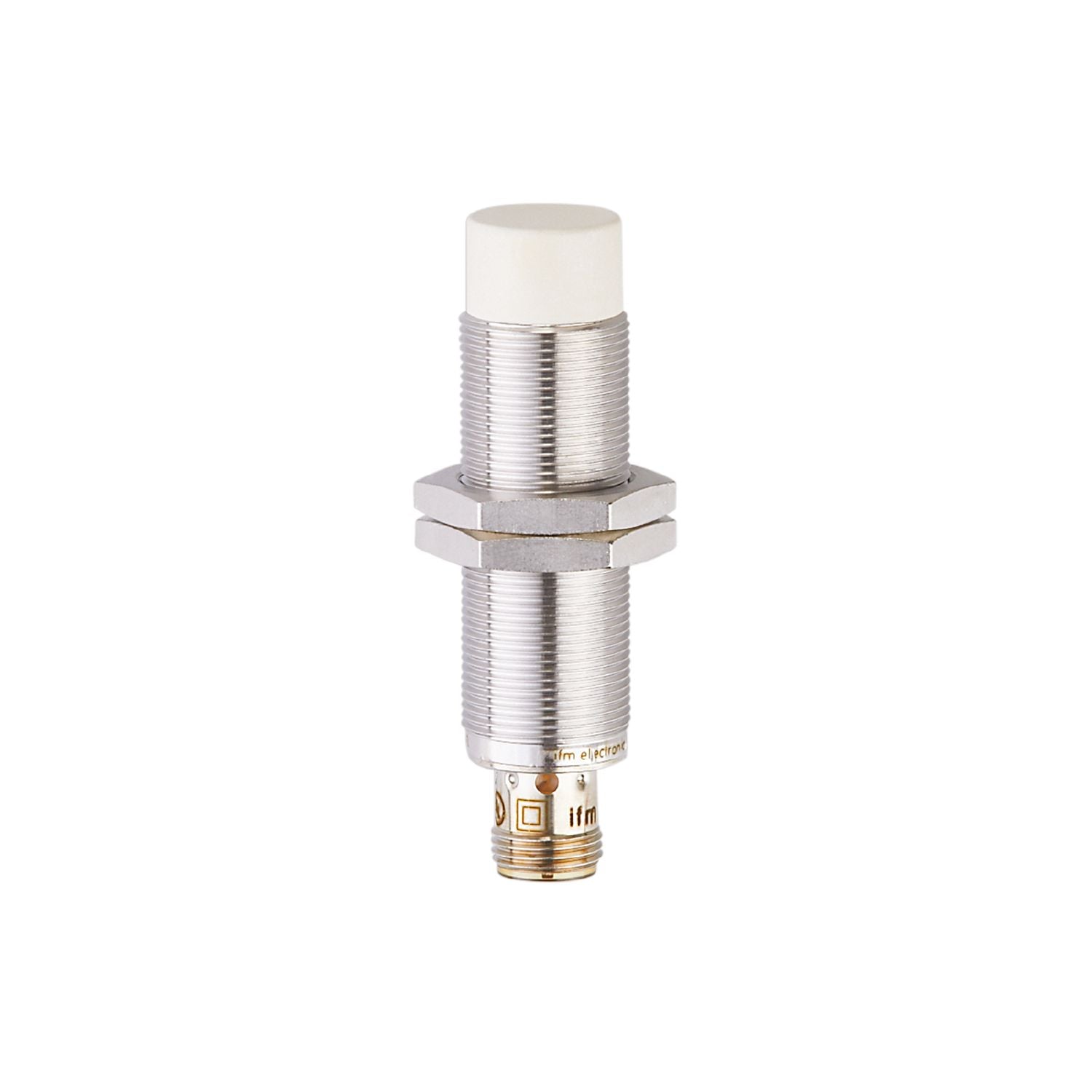

IFM IGC213 - Inductive sensor IGKC012-ASKG/M/US-104-DRS/2LED

For use in machine tools and metalworking.
Resistant to oils and coolants.
High protection rating for the requirements of harsh industrial environments.
With optical mounting and setting aid.
Operation as three-wire or two-wire possible

Electrical design	PNP/NPN
Output function	normally open
Sensing range [mm]	12
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 70

Special feature	Gold-plated contacts; Increased sensing range; Optical setting aid
Application	Use in machine tools, coolants and lubricants

Operating voltage [V]	10...30 DC
Current consumption [mA]	12;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.8
Minimum load current [mA]	4
Max. leakage current [mA]	0.9;(only in 2-wire operation)
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	12
Real sensing range Sr [mm]	12 ± 10 %
Operating distance [mm]	0...9.7
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 68;("Coolant")

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	1056
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	50.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 70
Thread designation	M18 x 1
Materials	brass white bronze coated; sensing face: PBT

Displays / operating elements

Display	switching status 4 x 90° LED, yellow setting aid 1 x LED, red
Optical setting aid	yes

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Contacts: gold-plated
