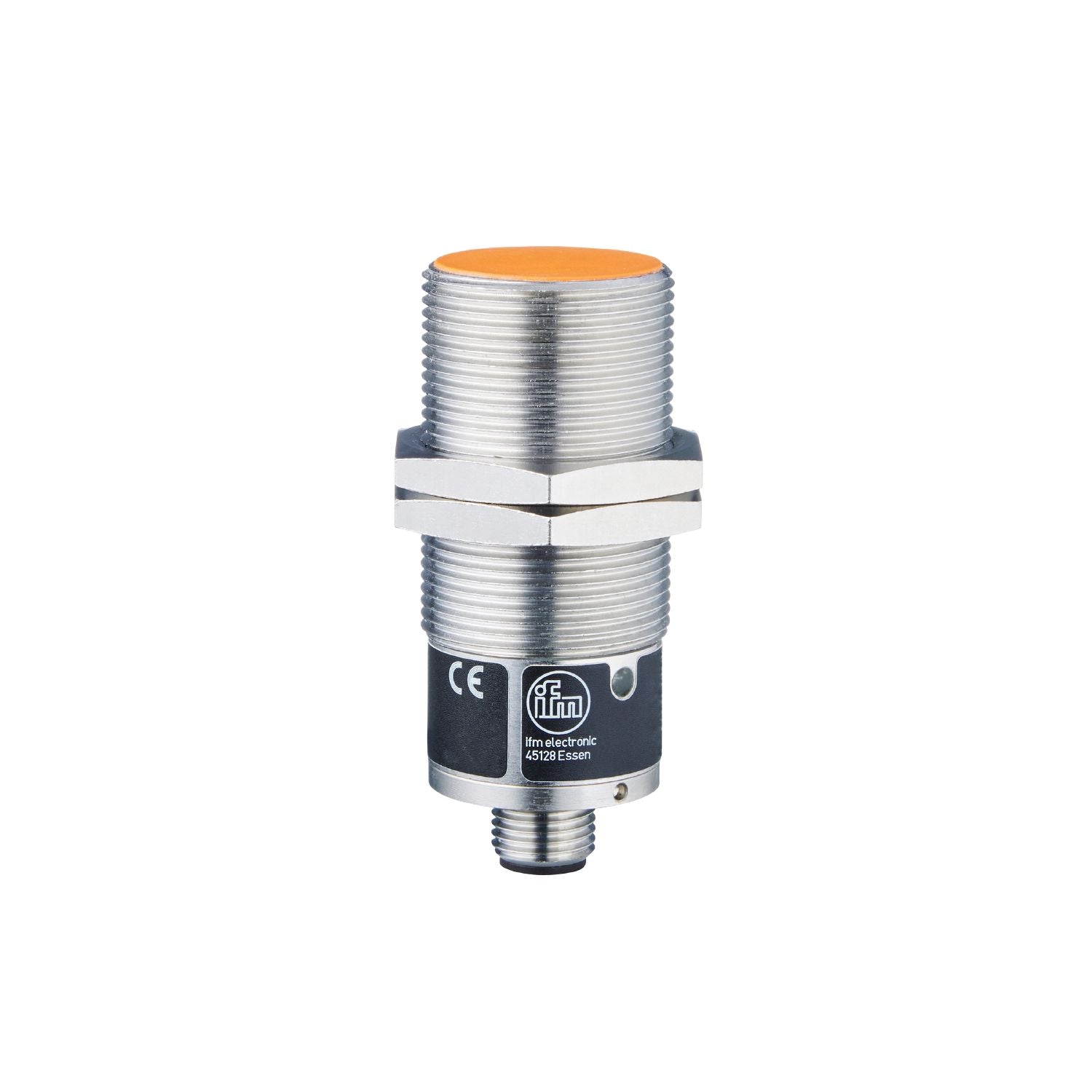

IFM II0359 - Inductive sensor IIA2015RARKA/SL/LS-100AK

series connection possible.
Two-wire technology.
With combined AC/DC output stage.
Large operating voltage range.
Robust metal housing for use in harsh industrial environments

Electrical design	series connection possible
Output function	normally open
Sensing range [mm]	15
Housing	threaded type
Dimensions [mm]	M30 x 1.5

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Protection class	I
Reverse polarity protection	yes

Outputs

Electrical design	series connection possible
Output function	normally open
Max. voltage drop switching output DC [V]	5.5
Max. voltage drop switching output AC [V]	5.5
Minimum load current [mA]	4
Max. leakage current [mA]	4
Permanent current rating of switching output AC [mA]	100
Permanent current rating of switching output DC [mA]	100
Short-time current rating of switching output [mA]	900;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	25
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	15
Operating distance [mm]	0...12.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	398

Weight [g]	179.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5
Thread designation	M30 x 1.5
Materials	brass white bronze coated; PBT

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x 1/2"; coding: C

Diagrams and graphs

Installation	steel X ≥ 3 mm non-ferrous metal and stainless steel X = 0
