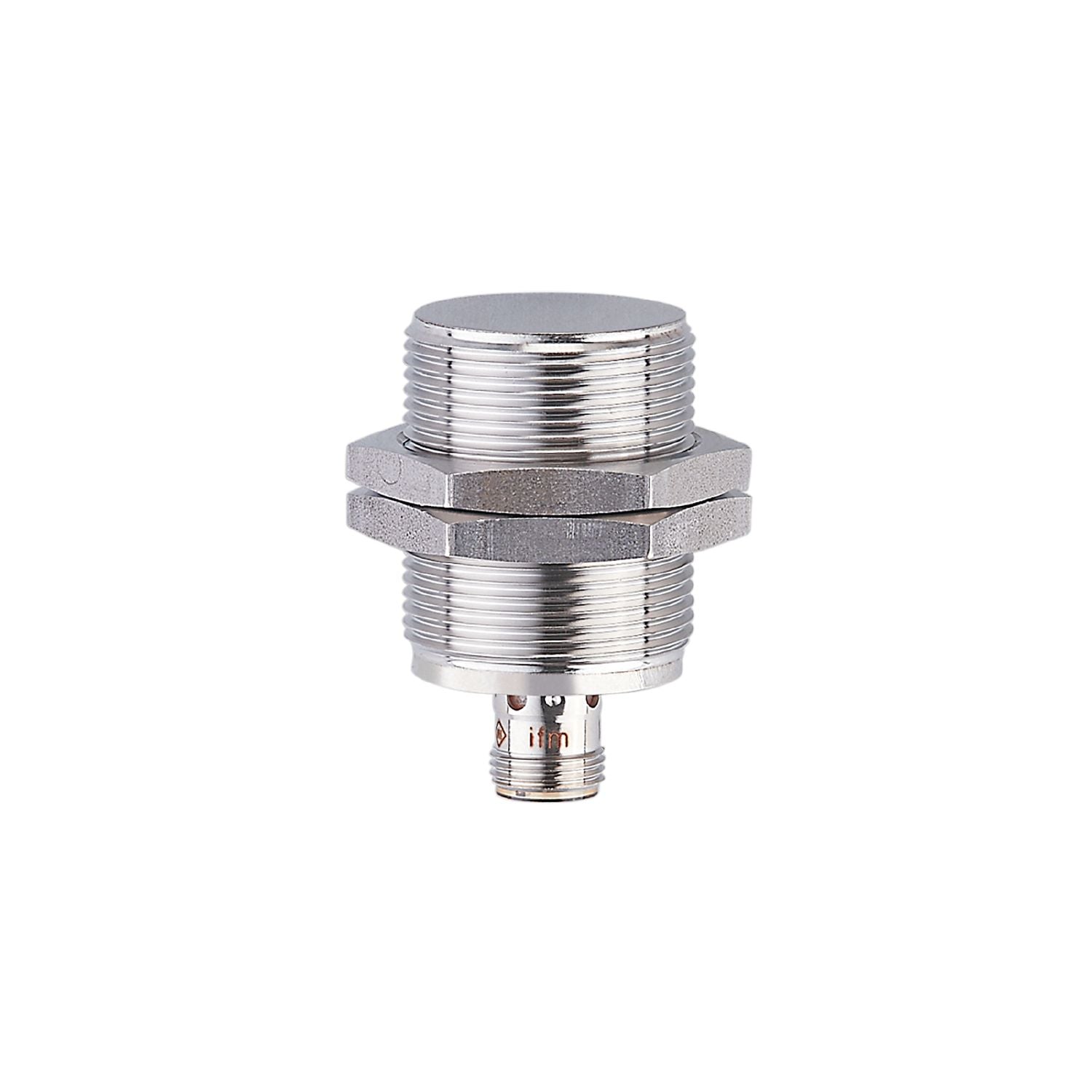

IFM II505A - Inductive full-metal sensor IIB3015BBPKG/AM/US-104/3G/3D

For applications in hazardous areas.
High protection rating for the requirements of harsh industrial environments.
Metal sensing face for heavy duty.
Special mechanical stability ensures high plant safety.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally open
Sensing range [mm]	15
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 50

Special feature	Gold-plated contacts; Increased sensing range; Full-metal housing
Pressure rating [bar]	100
Note on pressure rating	sensing face

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	50
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	15
Real sensing range Sr [mm]	15 ± 10 %
Operating distance [mm]	0...12.15
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminium: 0.5 / copper: 0.2
Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	when used outside the hazardous area: -40...85°C
Protection	IP 67;(when used outside the hazardous area: IP 65, IP 66, IP 67, IP 68, IP 69K)

Tests / approvals

Approval	BVS 20 ATEX E 055 X; IECEx BVS 20.0042 X
ATEX marking	II 3G Ex ec IIC T6 Gc
	II 3D Ex tc IIIC T85°C Dc
EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B
MTTF [years]	1217

Weight [g]	134.4
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5 / L = 50
Thread designation	M30 x 1.5
Materials	stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	70
Full-metal housing	yes

Displays / operating elements

Display	switching status 4 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — II505A — 05.02.2024 —
