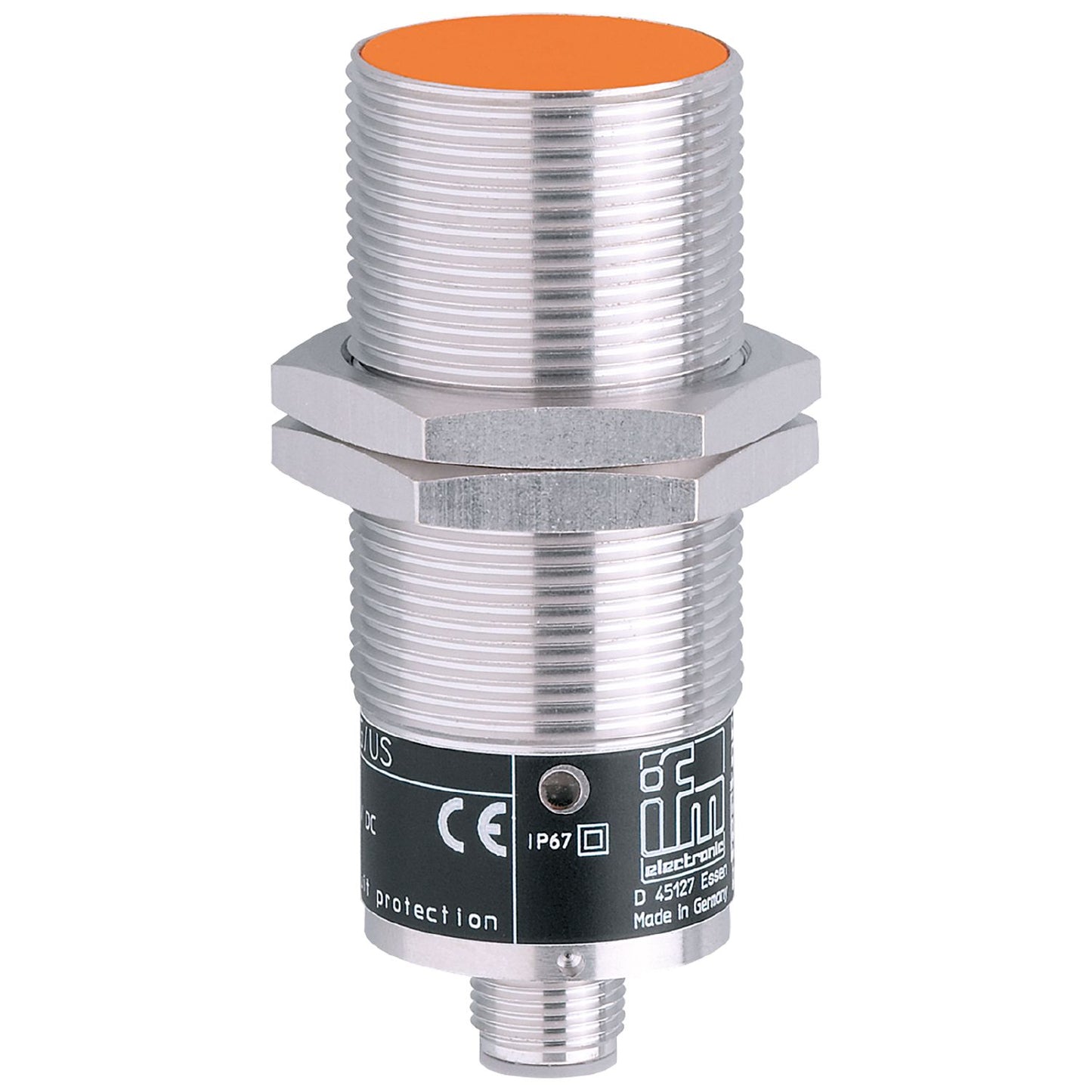

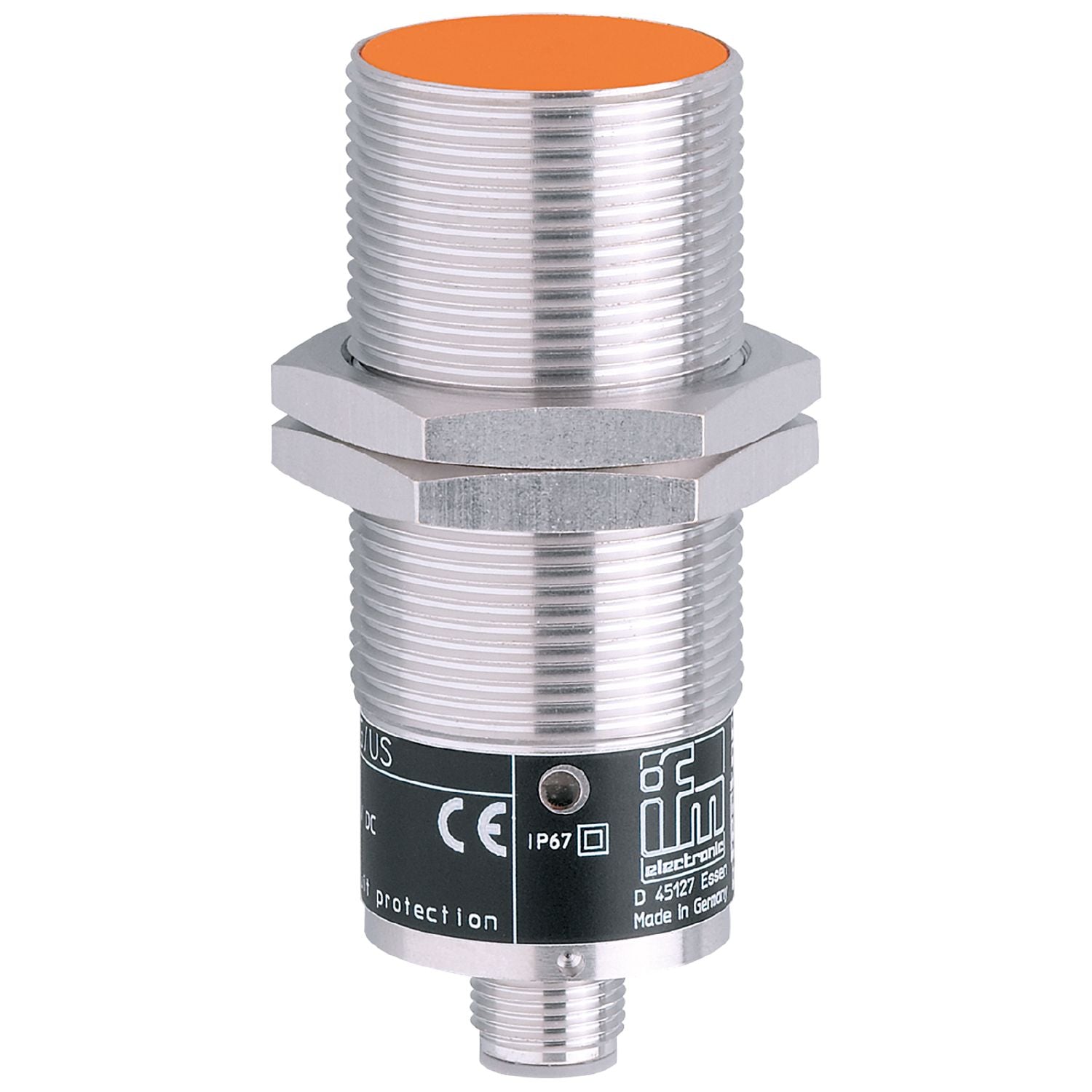

IFM II5751 - Inductive sensor IIA2010-FRKG/V4A/US-100-IRF/AU

Robust stainless steel housing for use in the food and beverage industry.
Wide operating temperature range.
High protection rating for the requirements of harsh industrial environments.
Output function normally open / normally closed programmable.
Two-wire technology

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	10
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 92

Special feature	Gold-plated contacts
Application	Industrial applications / factory automation

Operating voltage [V]	10...55 DC
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	4.6
Minimum load current [mA]	4
Max. leakage current [mA]	0.8
Permanent current rating of switching output DC [mA]	400
Switching frequency DC [Hz]	450
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	10
Real sensing range Sr [mm]	10 ± 10 %
Operating distance [mm]	0...8.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1835

Weight [g]	160
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5 / L = 92
Thread designation	M30 x 1.5
Materials	stainless steel (1.4571/316Ti ); sensing face: PC

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Contacts: gold-plated
