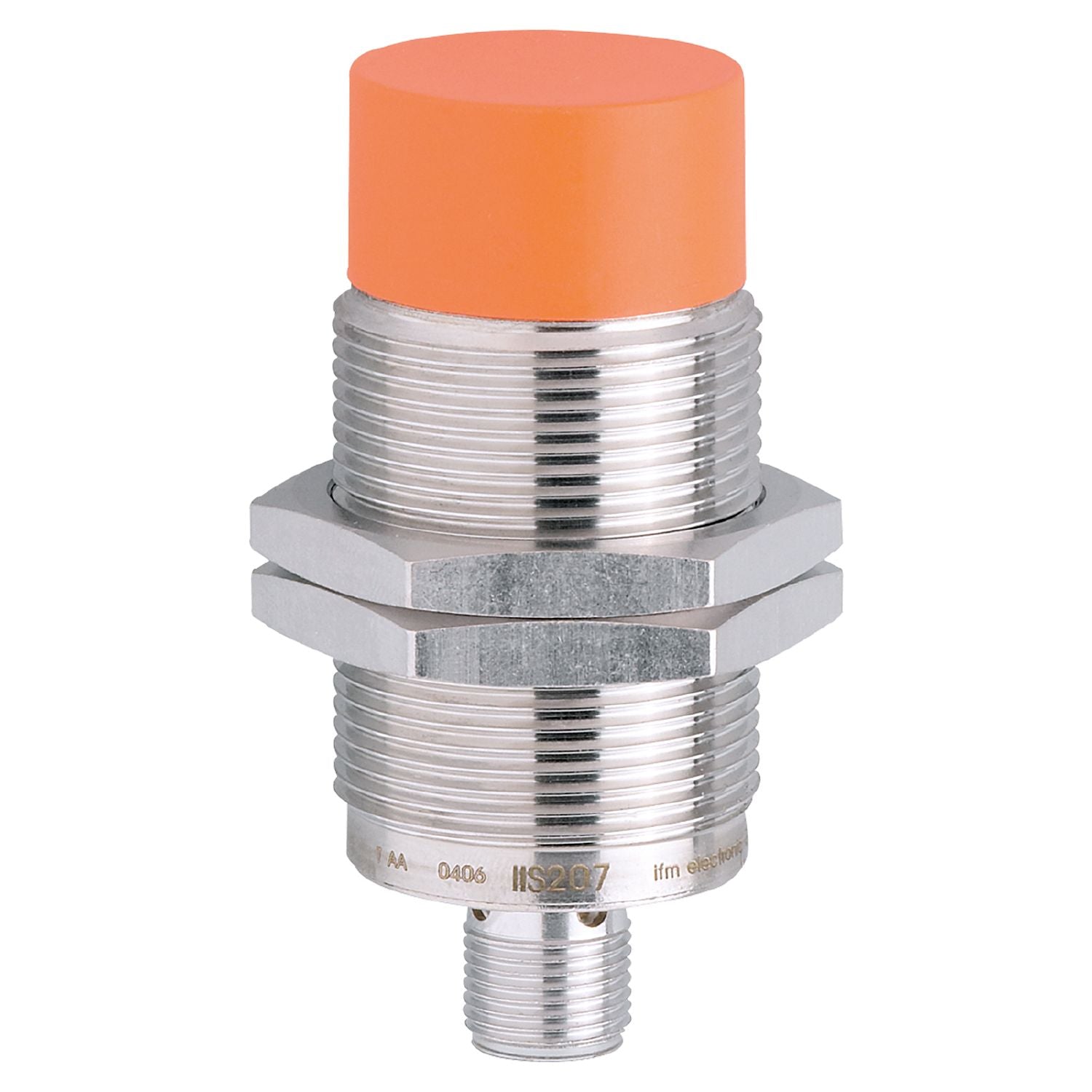

IFM II5913 - Inductive analogue sensor IIK3015A1PKG/US

Precise linearised output signal.
Very high repeatability.
For non-contact distance measurement.
Wide operating temperature range.
Robust metal housing for use in harsh industrial environments

Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 70

Operating voltage [V]	15...30 DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	yes

Outputs

Analogue current output [mA]	4...20; (linear; gradient: 1,143 mA/mm; for frontal approach and for target made of mild steel: 45 x 45 x 1 mm)
Max. load [Ω]	500
Short-circuit protection	yes
Overload protection	yes

Detection zone

Measuring range [mm]	1...15

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Linearity error of analogue output [%]	± 1 %;(of IA max)
Repeatability analogue output [%]	± 1 %;(of IA max)

Response times

Response time [ms]	< 20

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	964

Weight [g]	125.42
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 70
Thread designation	M30 x 1.5
Materials	housing: brass white bronze coated; sensing face: PBT
Tightening torque [Nm]	50

Displays / operating elements

Display	within the operating range 1 x LED, yellow lights outside the operating range 1 x LED, yellow flashing

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — II5913-00 — 13.04.2023 —
