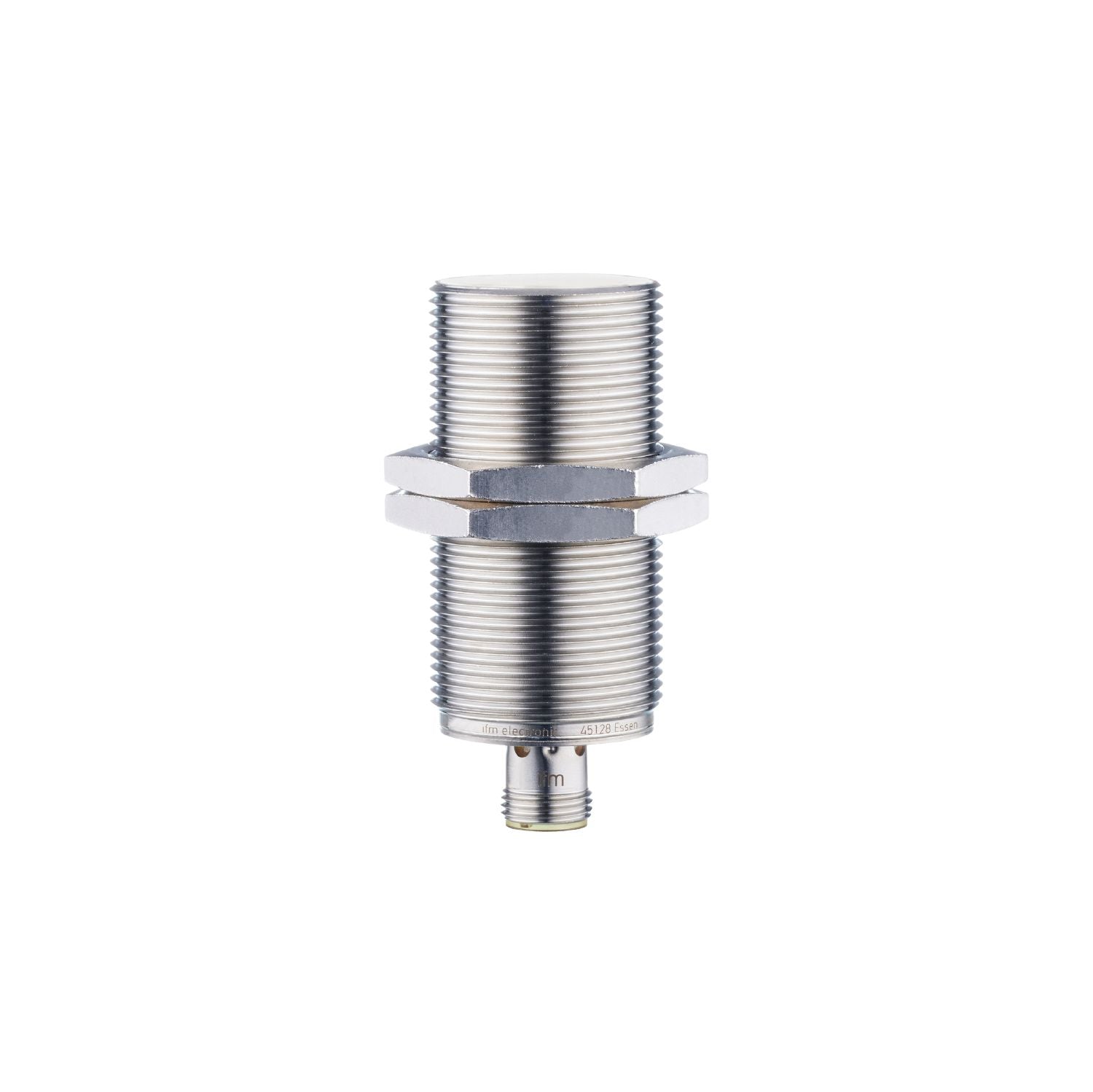

IFM IIT204 - Inductive sensor IIKC014BASKG/M/V4A/US-104-DRS

Wide operating temperature range.
Temperature shock resistant even in case of frequent temperature fluctuations.
Robust stainless steel housing for use in the food and beverage industry.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High protection rating for the requirements of harsh industrial environments

Electrical design	PNP/NPN
Output function	normally open
Sensing range [mm]	14
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 70

Special feature	Gold-plated contacts; Increased sensing range; Optical setting aid
Application	regular cleaning processes

Operating voltage [V]	10...36 DC
Current consumption [mA]	10;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Minimum load current [mA]	2;(only in 2-wire operation)
Max. leakage current [mA]	0.5;(only in 2-wire operation)
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	14
Real sensing range Sr [mm]	14 ± 10 %
Operating distance [mm]	0...11.34
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	0...100
Protection	IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	1473
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191

Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5 / L = 70
Thread designation	M30 x 1.5
Materials	stainless steel (1.4404 / 316L); sensing face: PEEK

Displays / operating elements

Display	switching status 4 x 90° LED, yellow setting aid 1 x LED, red
Optical setting aid	yes

Accessories

Items supplied	lock nuts: 2

Remarks	suitable for PLC type 1 according to IEC 61131-2
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IIT204-00 — 13.04.2023 —
