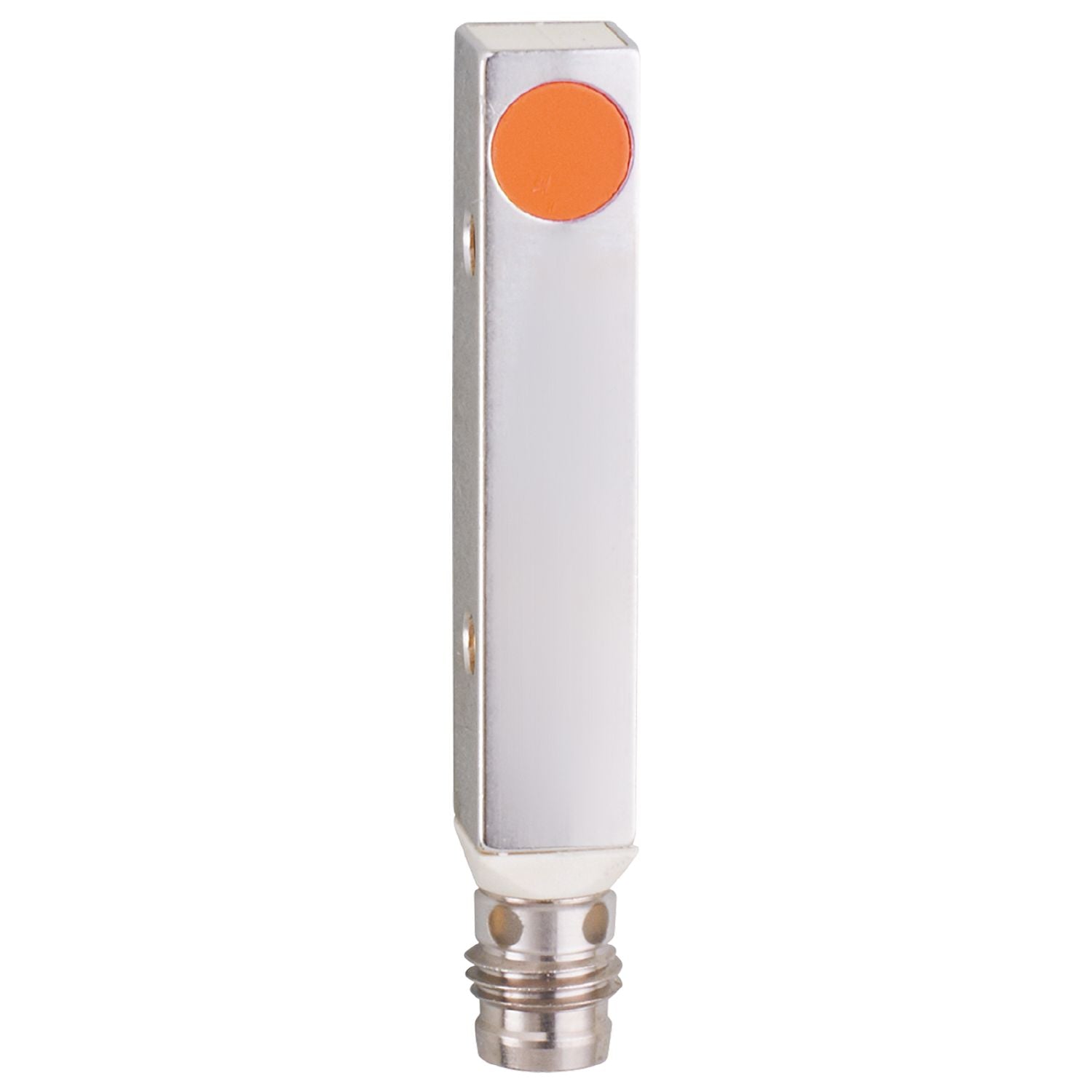

IFM IL5021 - Inductive sensor ILA32,5-BPKG/OBEN/AS514TPS RT

Particularly compact rectangular design.
For use where space is restricted.
With robust M8 connector.
Clearly visible indication of the switching status.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2.5
Housing	rectangular
Dimensions [mm]	40 x 8 x 8

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	2.5
Real sensing range Sr [mm]	2.5 ± 10 %
Operating distance [mm]	0...2.02

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	3449
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191

Weight [g]	13.5
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 8 x 8
Materials	brass white bronze coated; LCP
Tightening torque [Nm]	1;(insertion depth: > 5 mm)

Displays / operating elements

Display	switching status 4 x 90° LED, red

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A
