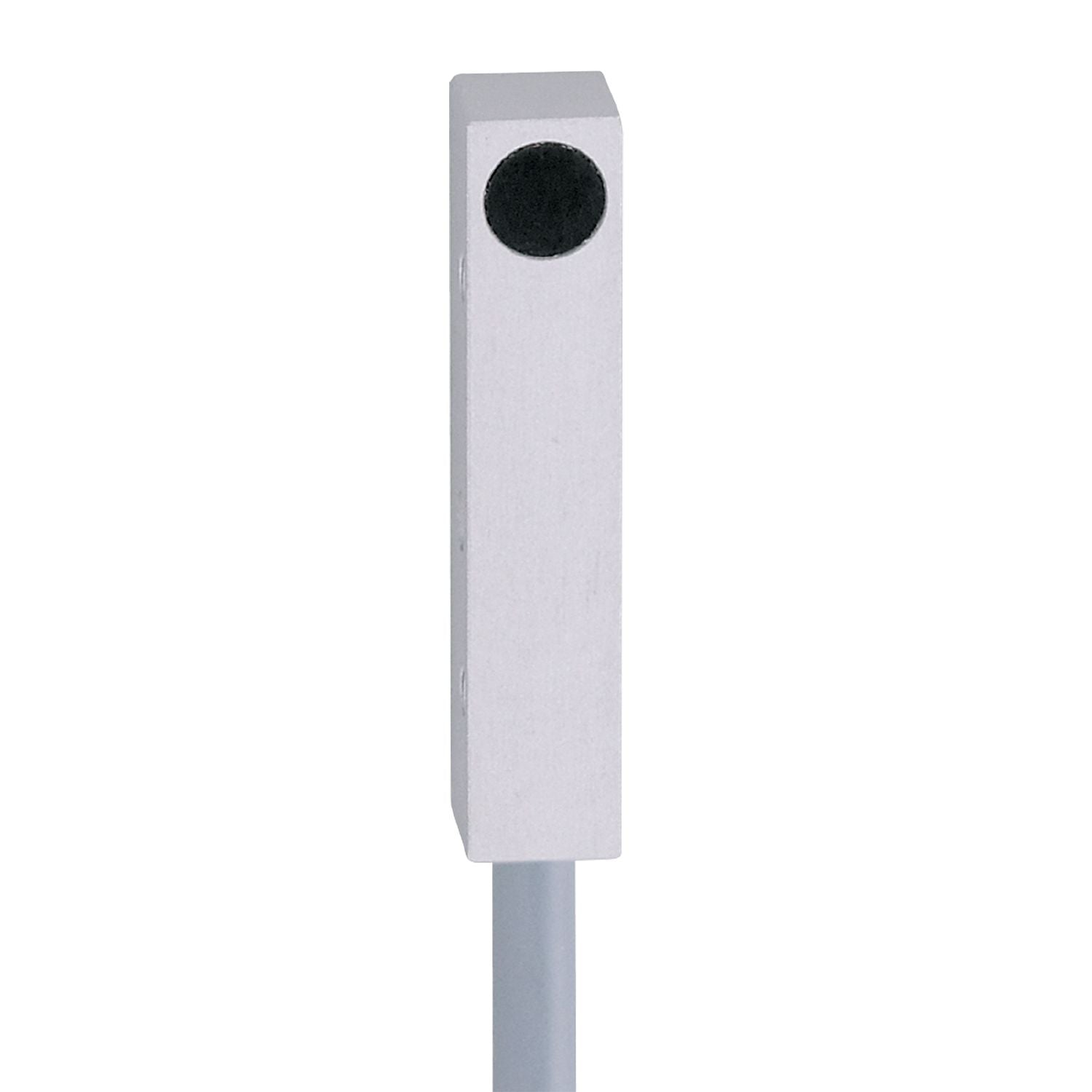

IFM IL5022 - Inductive sensor ILB30,8-BPKG/2M PVC

Particularly compact rectangular design.
For use where space is restricted.
Space-saving connection technology.
Clearly visible indication of the switching status.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	0.8
Housing	rectangular
Dimensions [mm]	25 x 5 x 5

Operating voltage [V]	10...30 DC
Current consumption [mA]	10;(24 V)
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	no

Detection zone

Sensing range [mm]	0.8
Real sensing range Sr [mm]	0.8 ± 10 %
Operating distance [mm]	0...0.65

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	640
UL approval	Ta 0...40 °C power supply Class 2 File number UL E174191

Weight [g]	54.5
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	25 x 5 x 5
Materials	housing: aluminium anodised; sensing face: POM

Displays / operating elements

Display	switching status 1 x LED, red

Accessories

Items supplied	screws: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
