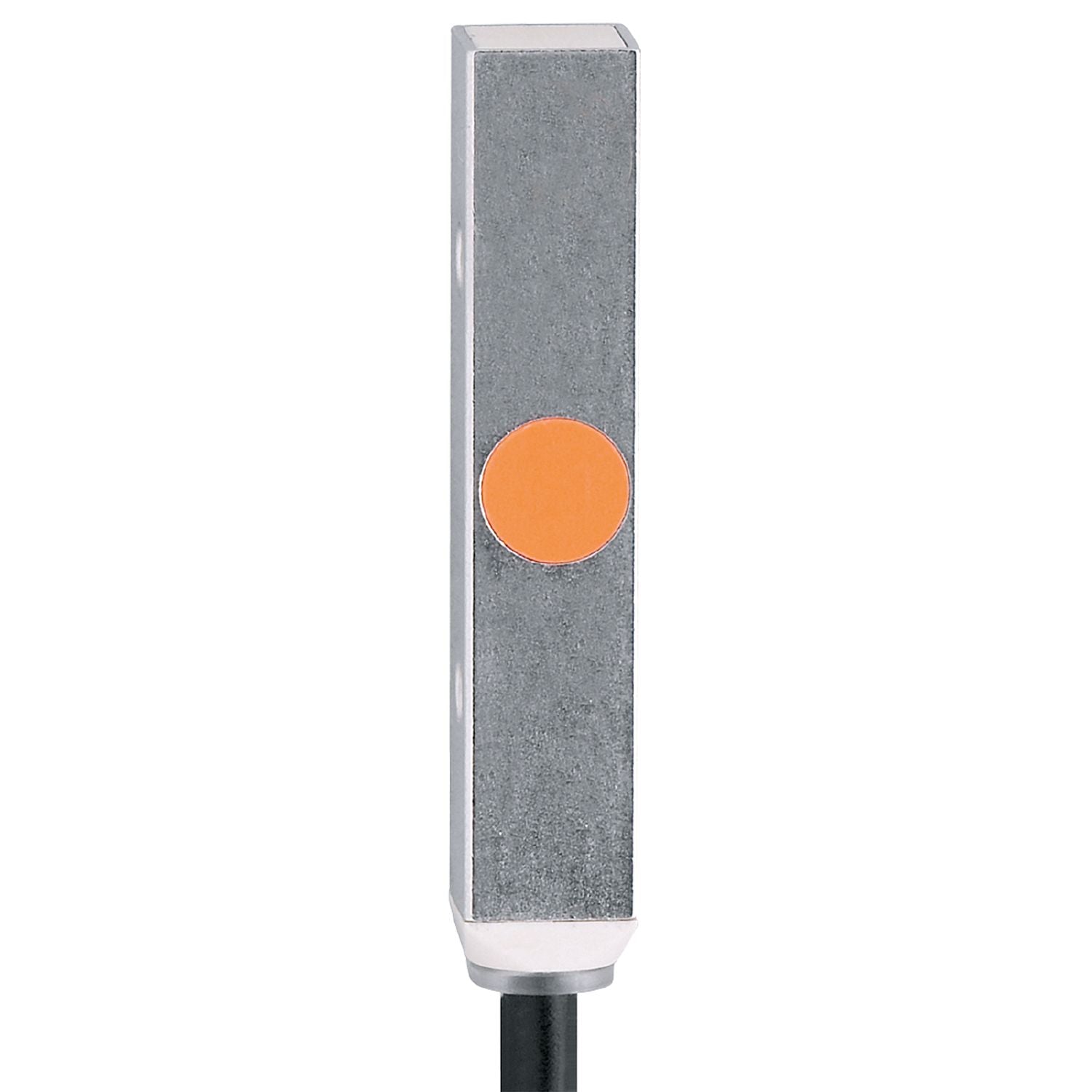

IFM IL5025 - Inductive sensor ILA3002-BPKG/MITTIG/0,31M/ASRT

Particularly compact rectangular design.
For use where space is restricted.
Space-saving connection technology.
Clearly visible indication of the switching status.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	rectangular
Dimensions [mm]	40 x 8 x 8

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	3449
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191

Weight [g]	23.4
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 8 x 8
Materials	brass white bronze coated; sensing face: LCP

Displays / operating elements

Display	switching status 1 x LED, red

Accessories

Items supplied	countersunk screws: 2 x M2,5 x 12

Remarks	limited voltage requirements to UL 508: electrically isolated operating voltage protected by an overcurrent device
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.31 m, PUR / PVC
Connection	Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
