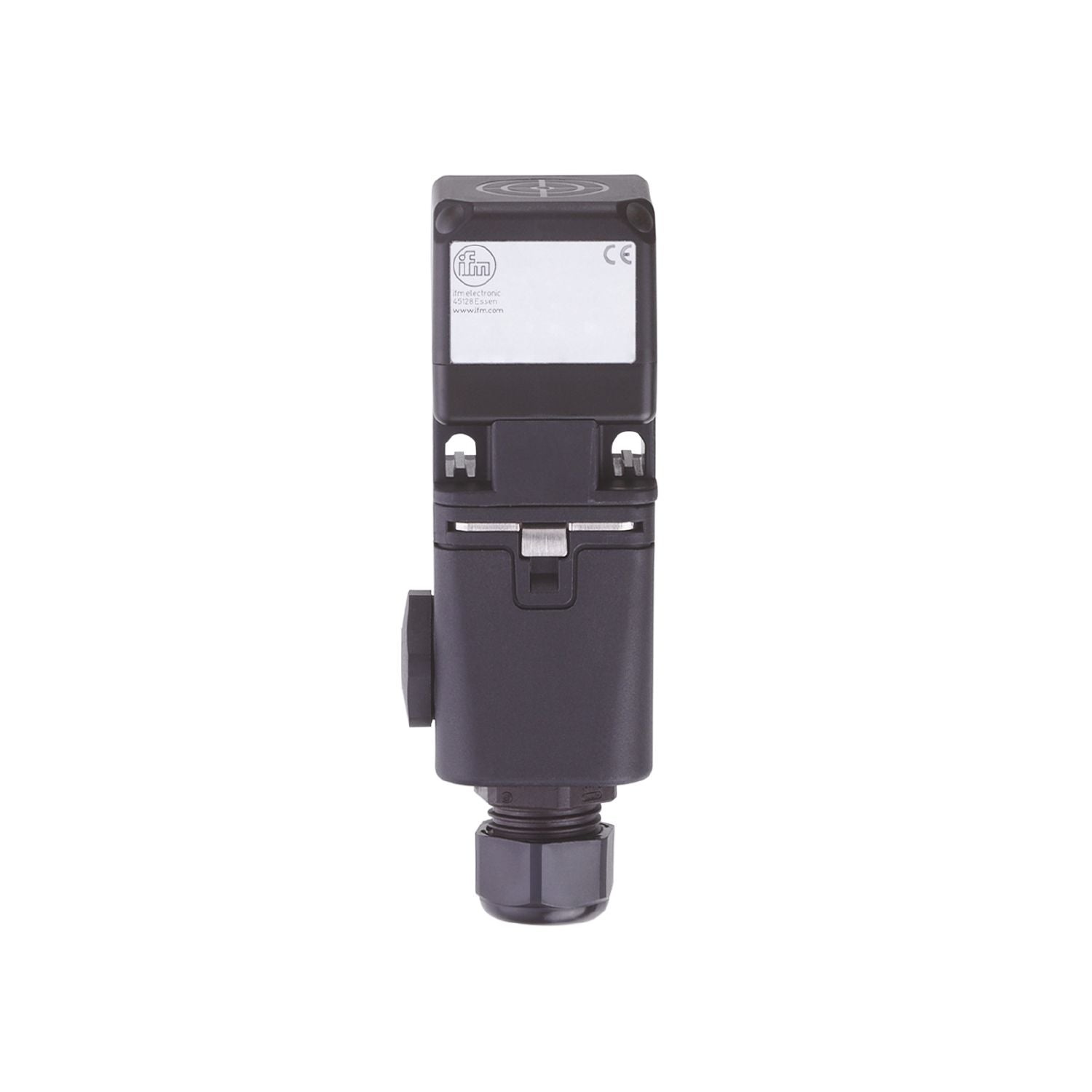

IFM IM0059 - Inductive sensor IME2040-FRKA

Long sensing range for use in conveying.
With combined AC/DC output and two-wire technology.
Robust housing for use in harsh industrial environments.
Five positions of the sensing face selectable.
Clearly visible indication of the switching status

Output function	normally open / normally closed;(programmable)
Sensing range [mm]	40
Housing	rectangular
Dimensions [mm]	40 x 40 x 105

Frequency AC [Hz]	45...65
Operating voltage [V]	20...250 AC/DC
Protection class	II
Reverse polarity protection	yes

Outputs

Output function	normally open / normally closed;(programmable)
Max. voltage drop switching output DC [V]	5.5
Max. voltage drop switching output AC [V]	5.5
Minimum load current [mA]	5
Max. leakage current [mA]	2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]	100
Permanent current rating of switching output DC [mA]	100
Short-time current rating of switching output [mA]	î: 0,6 A (20 ms / 0,5 Hz)
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Notes on switching frequency [Hz]	only for resistive loads; 2 Hz for utilisation category AC-140
Type of short-circuit protection	pulsed
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	40
Real sensing range Sr [mm]	40 ± 10 %
Operating distance [mm]	0...32.4

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2 2008-08

Weight [g]	237.8
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 105
Materials	PC; PA; stainless steel

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1x LED, green

Pack quantity	1 pcs.

Electrical connection

Connection	screw terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM0059-00 — 08.12.2021 —
