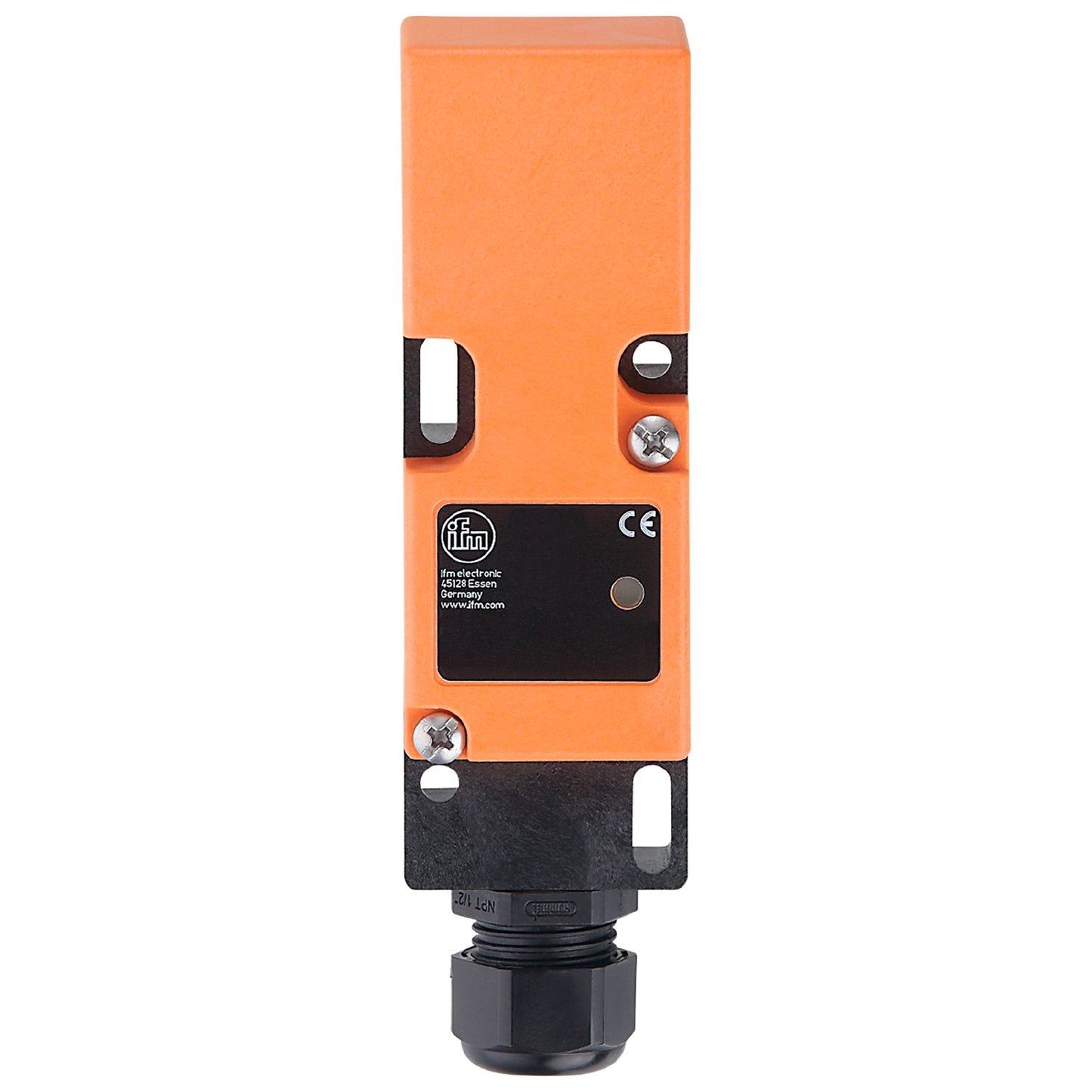

IFM IM5040 - Inductive sensor IME3015-FNKG/NPT RT

Long sensing range for use in conveying.
Output function normally open / normally closed programmable.
Robust housing for use in harsh industrial environments.
Five positions of the sensing face selectable.
Clearly visible indication of the switching status

Electrical design	NPN
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	15
Housing	rectangular
Dimensions [mm]	40 x 40 x 120

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	NPN
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	350
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	15
Real sensing range Sr [mm]	15 ± 10 %
Operating distance [mm]	0...12.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1844

Weight [g]	195
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 120
Materials	PPE modified

Displays / operating elements

Display	switching status 1 x LED, red

Remarks	5 positions of the active zone possible
Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm
