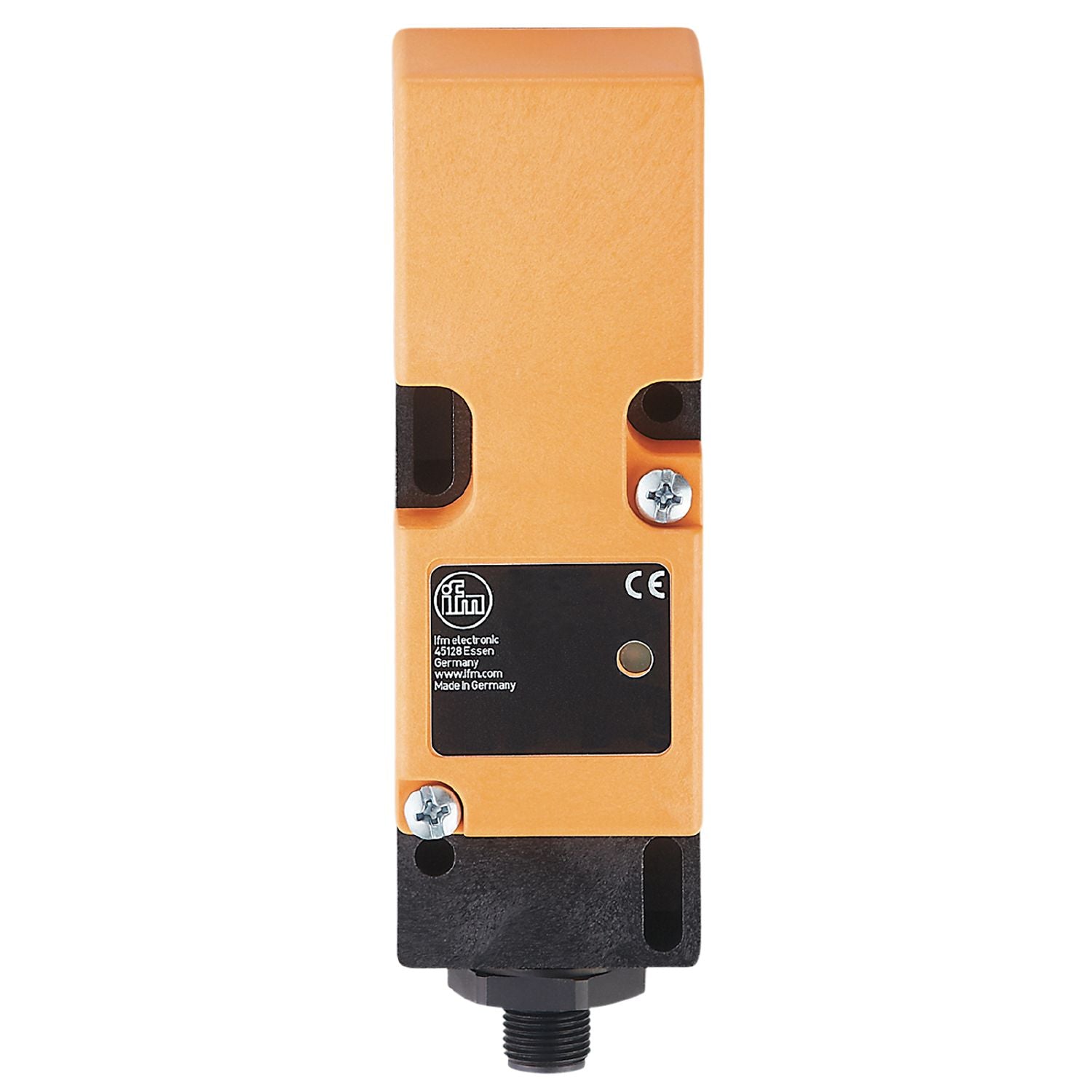

IFM IM5044 - Inductive sensor IME3020-FPKG/US-100-DPX

Long sensing range for use in conveying.
Output function normally open / normally closed programmable.
Robust housing for use in harsh industrial environments.
Five positions of the sensing face selectable.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 120

Operating voltage [V]	10...36 DC
Current consumption [mA]	5;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	1727
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	183.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 120
Materials	PPE

Displays / operating elements

Display	switching status 1 x LED, yellow

Remarks	5 positions of the active zone possible Cut link to program as normally closed.
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
