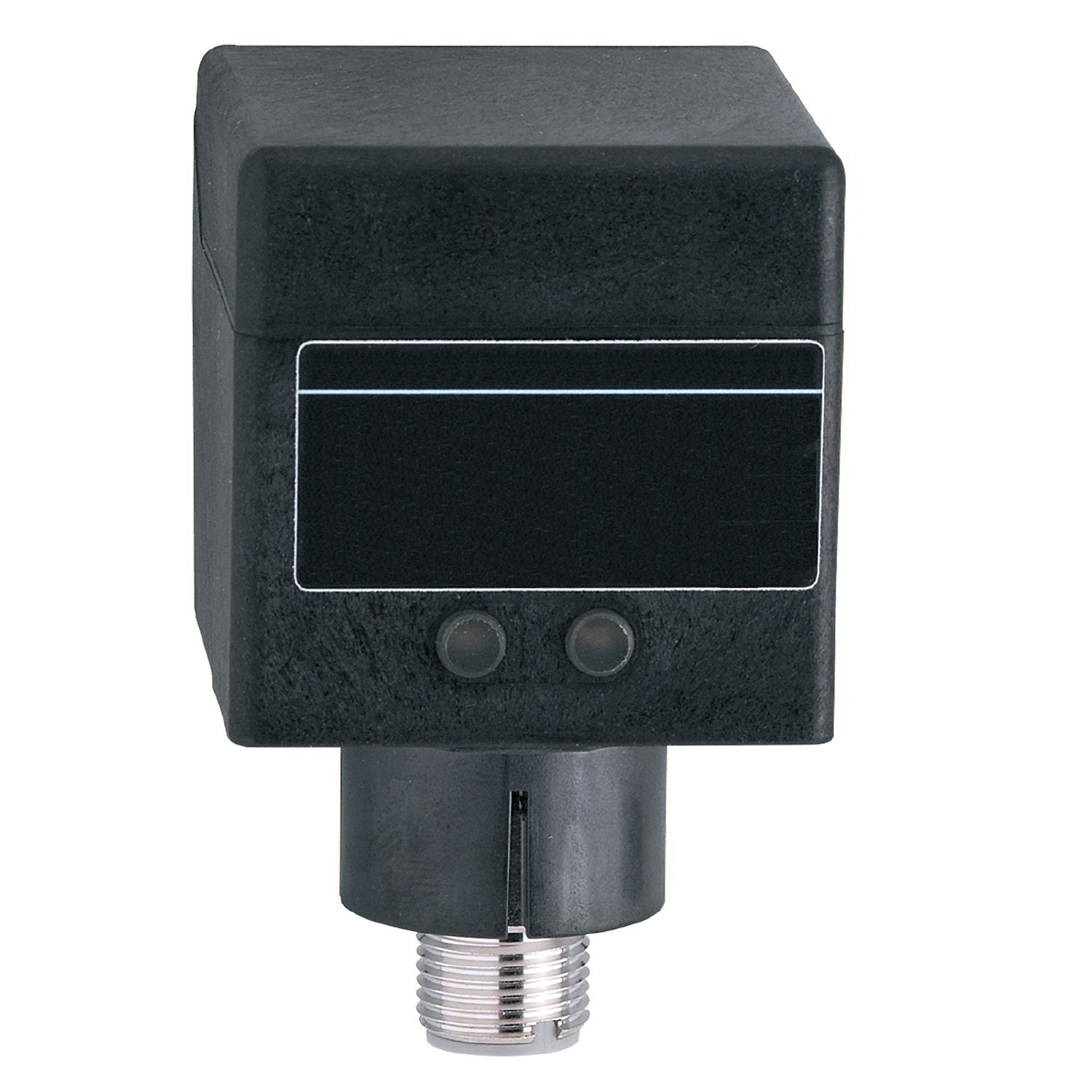

IFM IM5084 - Inductive sensor IMC4020UCPKG/K1/SC/US-100-DPA

Resistant to weld slag thanks to non-stick coating.
Complementary output function NO/NC.
Robust housing for use in harsh industrial environments.
LED display to check switching status and operation.
Correction factor 1: Constant sensing range on all metals

Electrical design	PNP
Output function	complementary
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 66

Special feature	Gold-plated contacts; Correction factor K = 1; Magnetic-field immune; anti-spatter
Magnetic-field immune	yes
Max. magnetic field immunity [mT]	300

Operating voltage [V]	10...36 DC
Current consumption [mA]	20;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 1.1 / brass: 1.1 / aluminium: 1.1 / copper: 1.1
Correction factor K = 1	yes

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	945
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	240
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 66
Materials	housing: PPE; sensing face: PPE black anti-spatter; end cap: diecast zinc; clamp: diecast zinc black; screw: steel galvanised

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	Mounting bracket: 1 Allen key: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated
