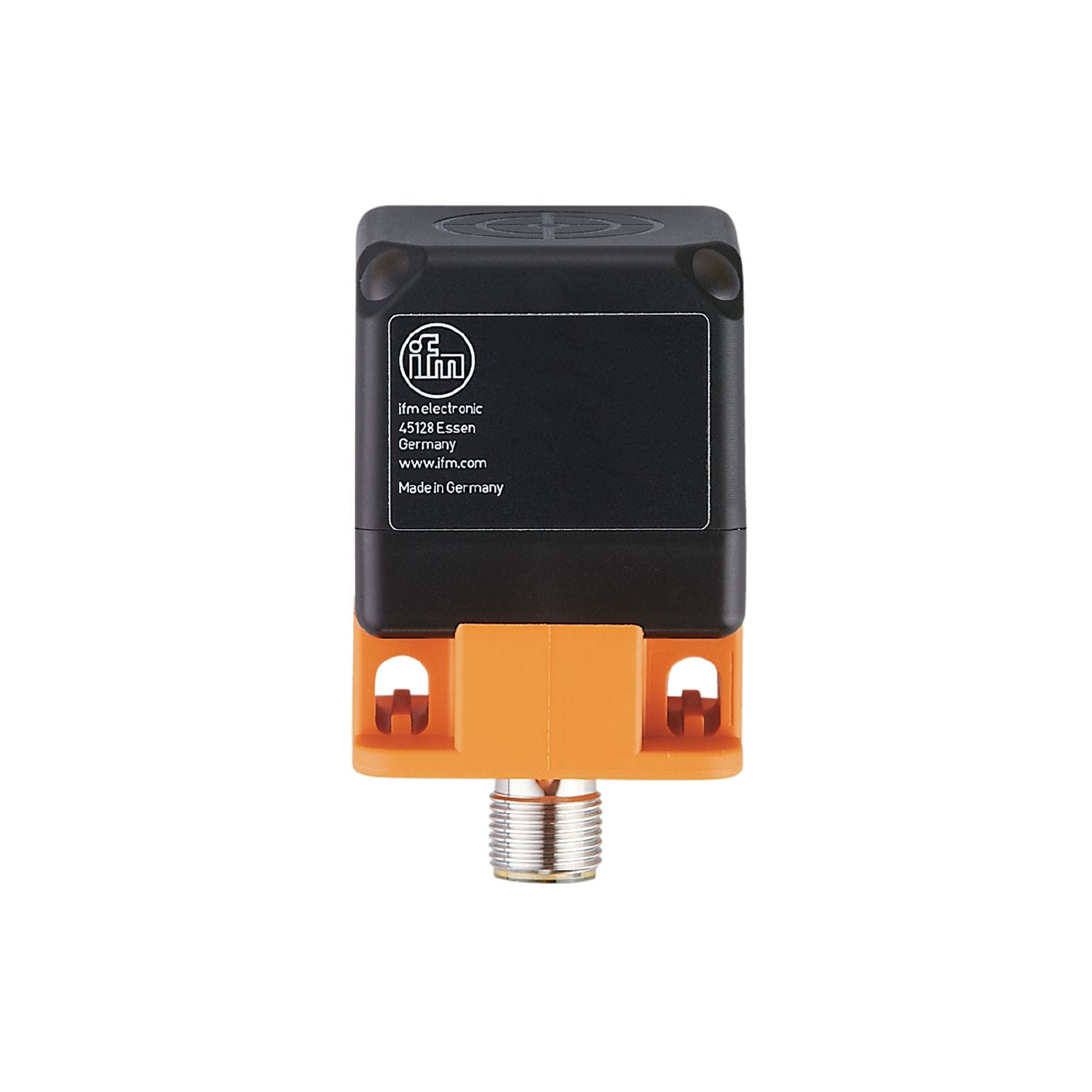

IFM IM5118 - Inductive AS-Interface sensor IMC2015-ASI /US-100-DPS

With AS-i interface.
Long sensing range for use in conveying.
Five positions of the sensing face selectable.
LED display to check switching status and operation.
Corner LEDs clearly visible in any mounted position

Electrical design	AS-i
Sensing range [mm]	15
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	AS-i
Switching frequency DC [Hz]	100

Detection zone

Sensing range [mm]	15
Operating distance [mm]	0...12.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]	1...20
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	958

AS-i classification

AS-i version	3.0
Extended addressing mode	yes
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	A.E
AS-i certificate	71901
Assignment of the data bits	Designation switching signal unsafe zone readiness for operation not used status = 0 target outside the active zone, yellow LED off target within the uncertain zone, red LED flashes unit faulty or distance to medium < 10 %, red LED flashes - status = 1 target within the active zone, yellow LED on target outside the uncertain zone, red LED off readiness for operation, red LED off default value

Weight [g]	151.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PBT; PPE

Displays / operating elements

Display	switching status 1 x LED, yellow function 1 x LED, red

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: locking, rotatable
