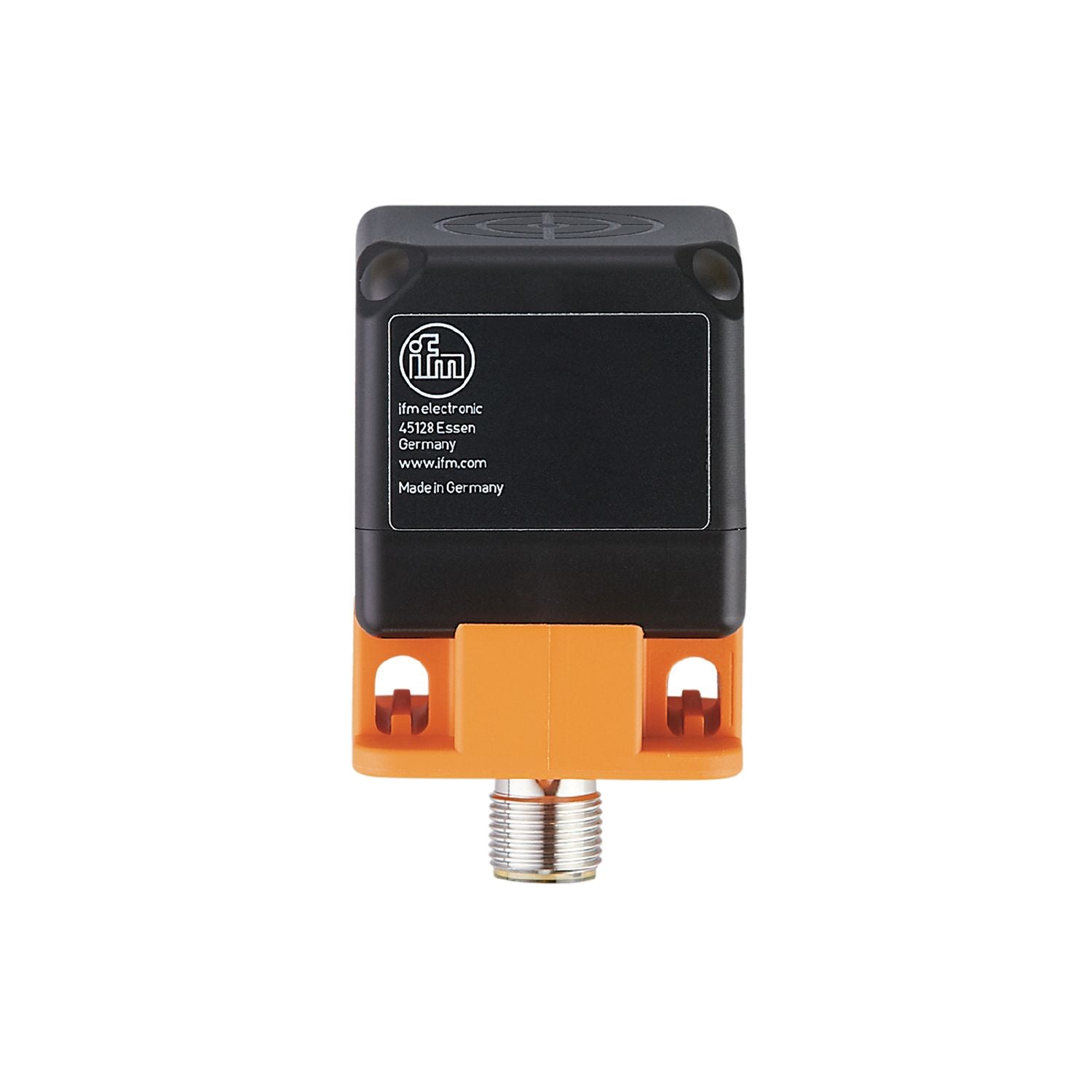

IFM IM5173 - Inductive sensor with IO-Link IMC3026-FRKG/IO/US-100

Long sensing range for use in conveying.
Five positions of the sensing face selectable.
LED display to check switching status and operation

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(selectable)
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Switch point IO-Link [mm]	4.9...24.3;(parameterisable)
Measuring range IO-Link [mm]	2.6...26

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.8 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Linearity error of analogue output [%]	± 2 %;(of the final value of the measuring range)
Repeatability analogue output [%]	± 1 %;(of the final value of the measuring range)
Temperature coefficient	± 0,2 %/K;(of the final value of the measuring range)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3
Supported DeviceIDs	Type of operation DeviceID default 791

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	629
Embedded software included	yes
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A009 File number UL E174191

Weight [g]	151.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PA

Displays / operating elements

Display	operation LED, green SIO mode output stage supplied with current LED, yellow lights IO-Link mode target in measuring range LED, yellow lights

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: brass, white bronze coated
