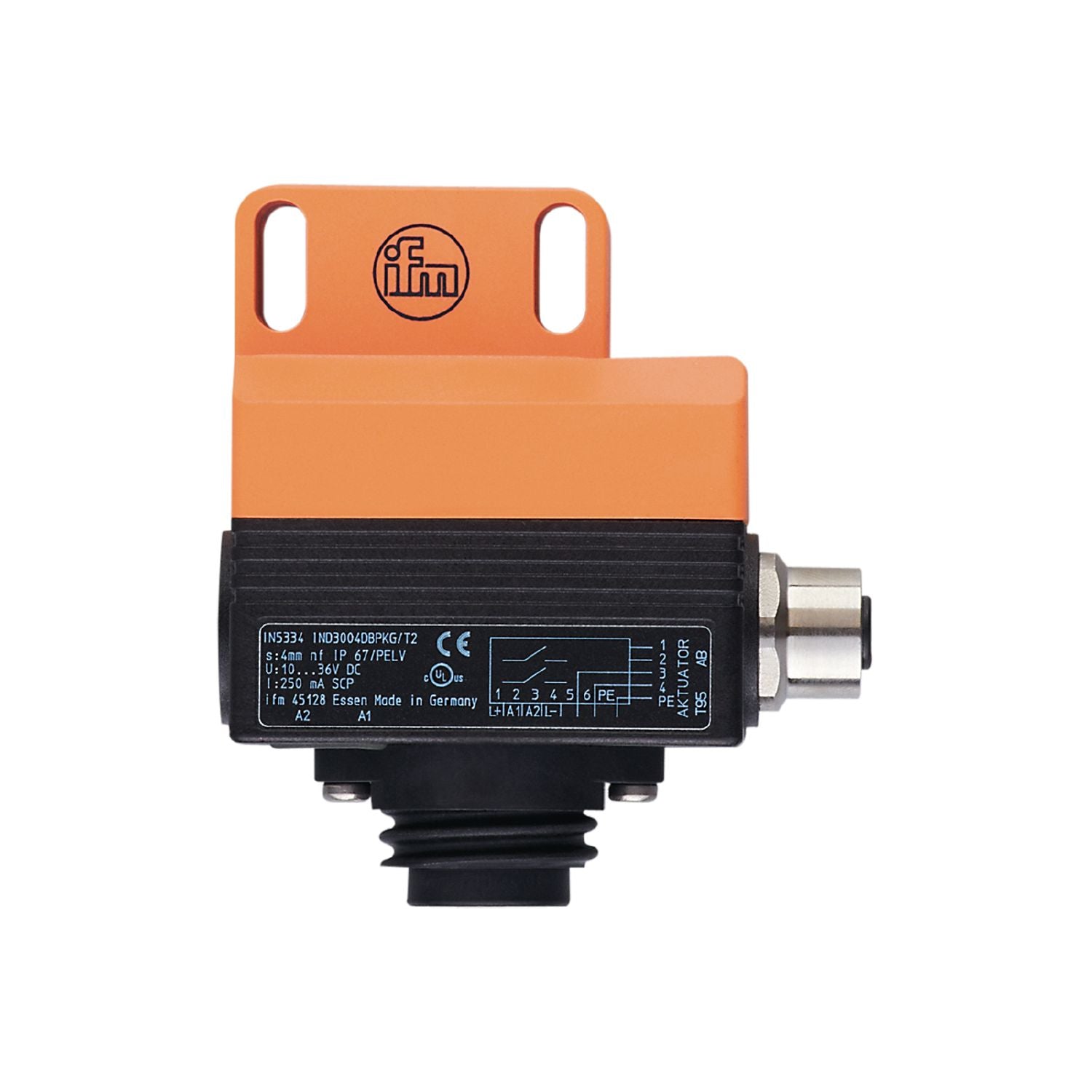

IFM IN5334 - Inductive dual sensor for valve actuators IND3004DBPKG/T2

For monitoring valve positions.
For reliable position feedback on valve actuators.
Non-contact and self-cleaning system.
Quick and secure mounting with only three screws.
Direct triggering of the solenoid valve from the sensor

Electrical design	PNP
Output function	2 x normally open
Sensing range [mm]	4
Housing	rectangular
Dimensions [mm]	40 x 26 x 60

Application	for actuators using standard ISO 5211 (VDI/VDE ) mounting

Operating voltage [V]	10...36 DC
Current consumption [mA]	20;(36 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	2 x normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	1300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.25

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1296
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	171
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 26 x 60
Materials	PBT; PC

Displays / operating elements

Display	switching status 2 x LED, yellow

Accessories

Items supplied	Reinforcement bracket socket head screws: 2 x M5 x 35 washers: 2

Remarks	Suitable valves: valves according to NAMUR interface up to max. 20 W
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x Rd24; coding: A

Electrical connection - socket

	Connector: 1 x M12; coding: A
