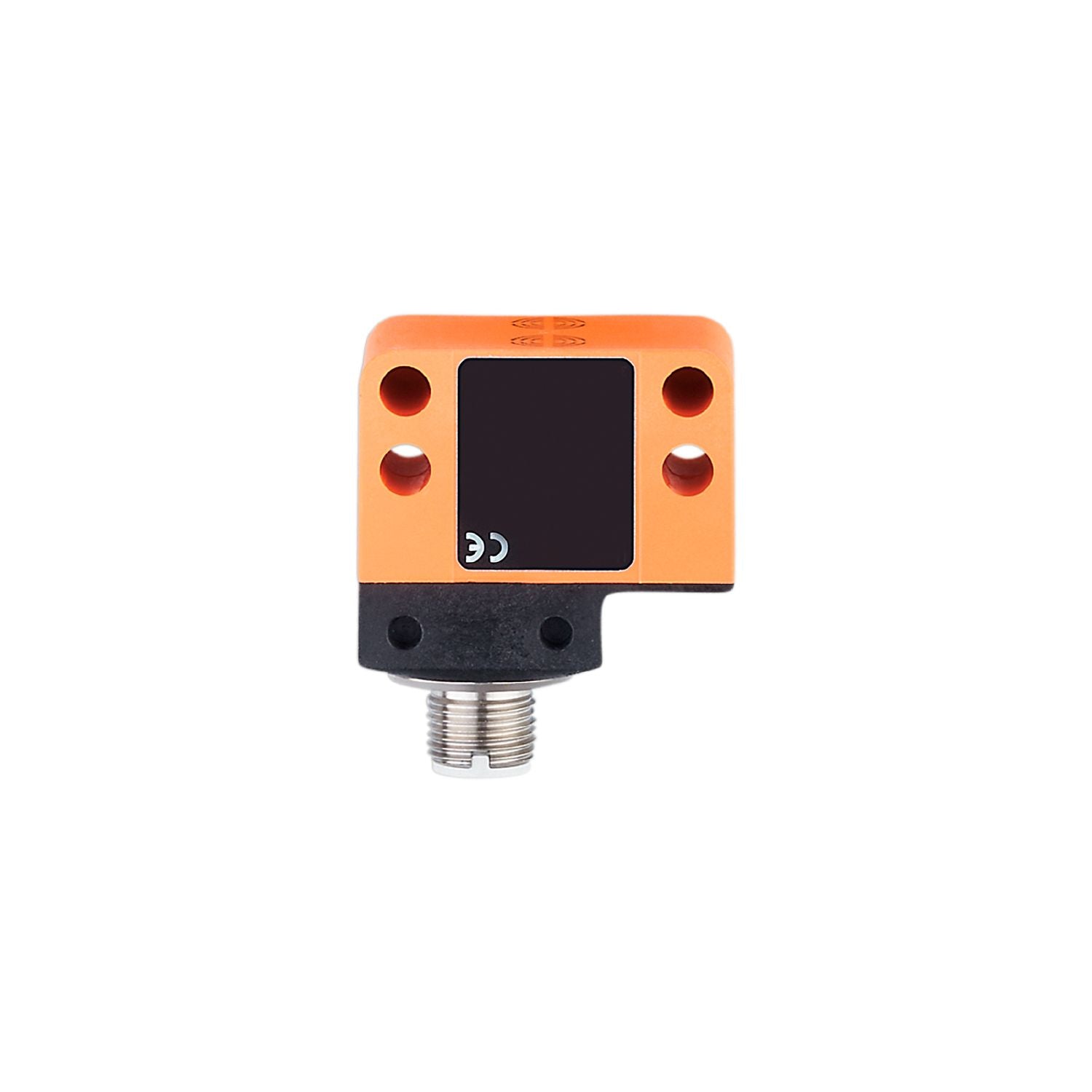

IFM IN5345 - Inductive dual sensor for valve actuators IND3004DBPKG/US-100-DPV

For monitoring valve positions.
For reliable position feedback on valve actuators.
Non-contact and self-cleaning system.
Quick and secure mounting with only three screws.
High shock and vibration resistance

Electrical design	PNP
Output function	2 x normally open
Sensing range [mm]	4
Housing	rectangular

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(36 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	2 x normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	1200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.25

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1064

Weight [g]	58.5
Housing	rectangular
Mounting	non-flush mountable
Materials	PC

Displays / operating elements

Display	switching status 2 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: stainless steel (1.4305 / 303)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IN5345-00 — 13.04.2023 —
