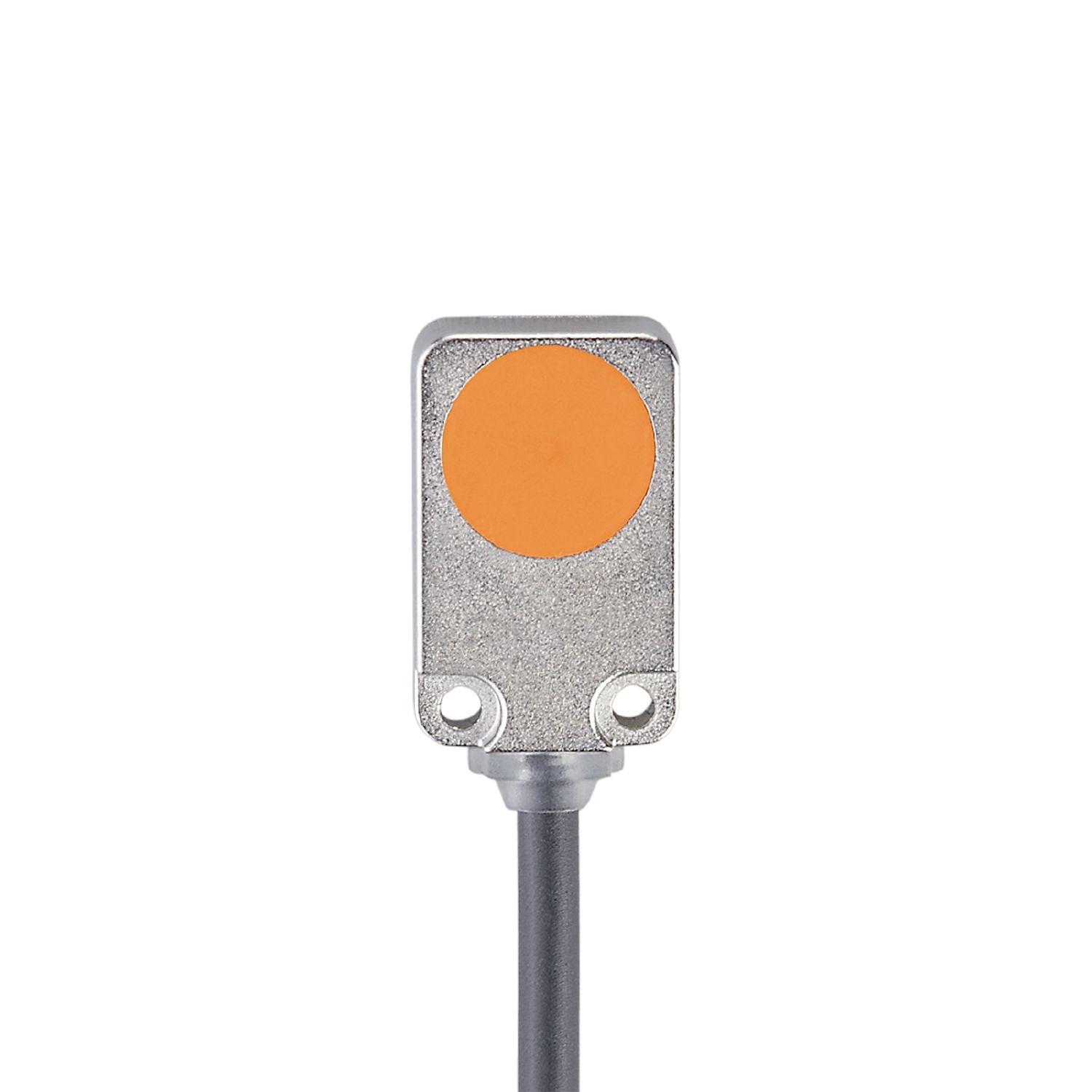

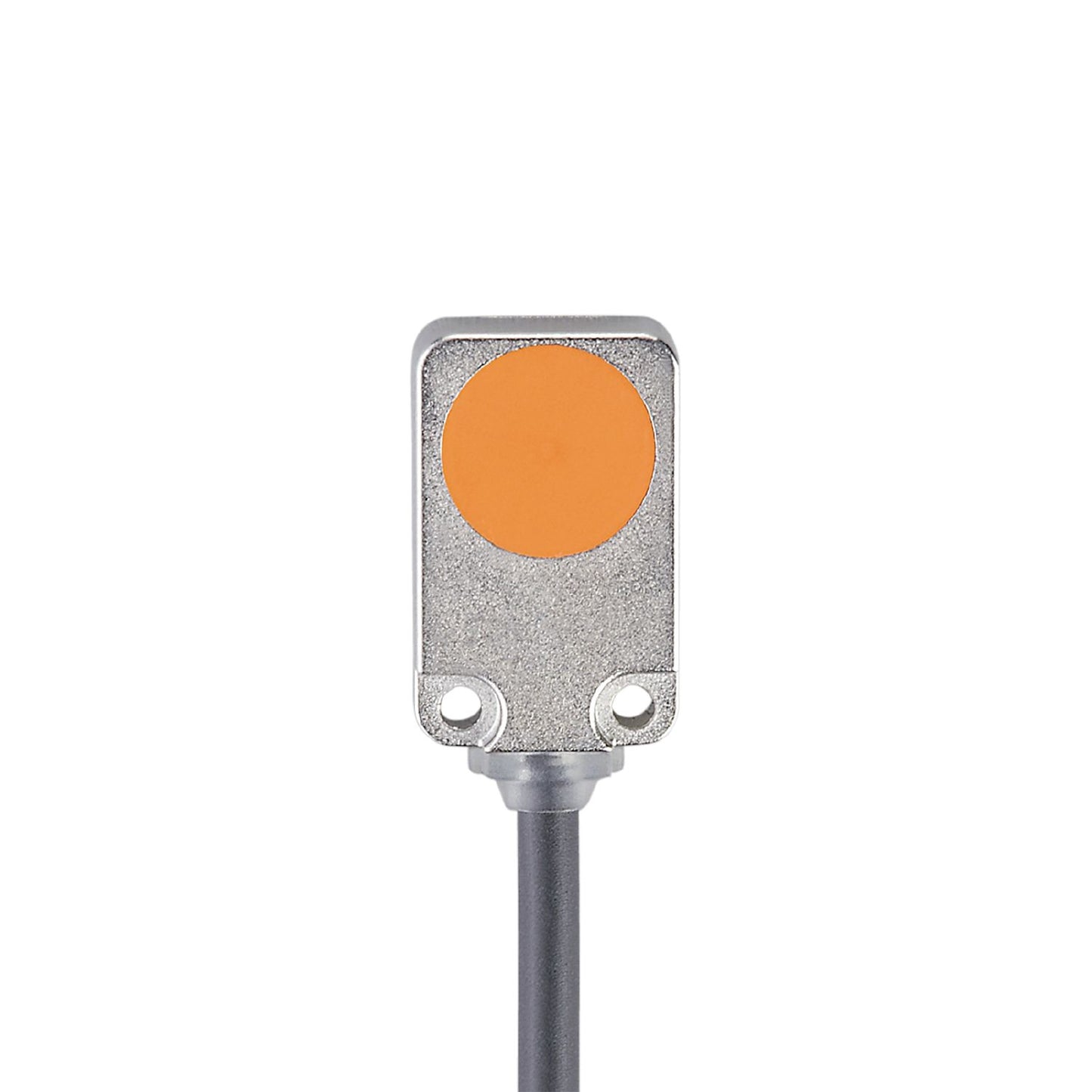

Setting options PNP/NPN or NO/NC help to reduce storage costs. Long life and robustness thanks to flush installation and a high temperature range. Particularly compact housing for use where space is restricted
Electrical design
PNP/NPN;(parameterisable)
Output function
normally open / normally closed;(parameterisable)
Communication interface
IO-Link
Housing
rectangular
Dimensions [mm]
20 x 8 x 32
Special feature
Drag chain suitability
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 30
Protection class
III
Reverse polarity protection
yes
Outputs
Electrical design
PNP/NPN;(parameterisable)
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
± 10 %;(of the final value of the measuring range)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag; operating hours counter
Supported DeviceIDs
Type of operation
DeviceID
default
1106
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-40...85
Protection
IP 65; IP 66; IP 67; IP 68
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance
EN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance
EN 60068-2-27
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change
EN 60068-2-14 Na
TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles
MTTF [years]
787
Embedded software included
yes
UL approval
Ta
-25...70 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL Approval no.
A015
File number UL
E174191
Weight [g]
79.2
Housing
rectangular
Mounting
flush mountable
Dimensions [mm]
20 x 8 x 32
Materials
diecast zinc special coating; sensing face: PBT orange; LED window: TPU; potting: PUR
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
bending cycles
> 5 Mio.
Displays / operating elements
Display
Display operation
1 x LED, green
switching status
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PUR, Ø 4.9 mm; 3 x 0.34 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IQ2008-00 — 13.04.2023 —
