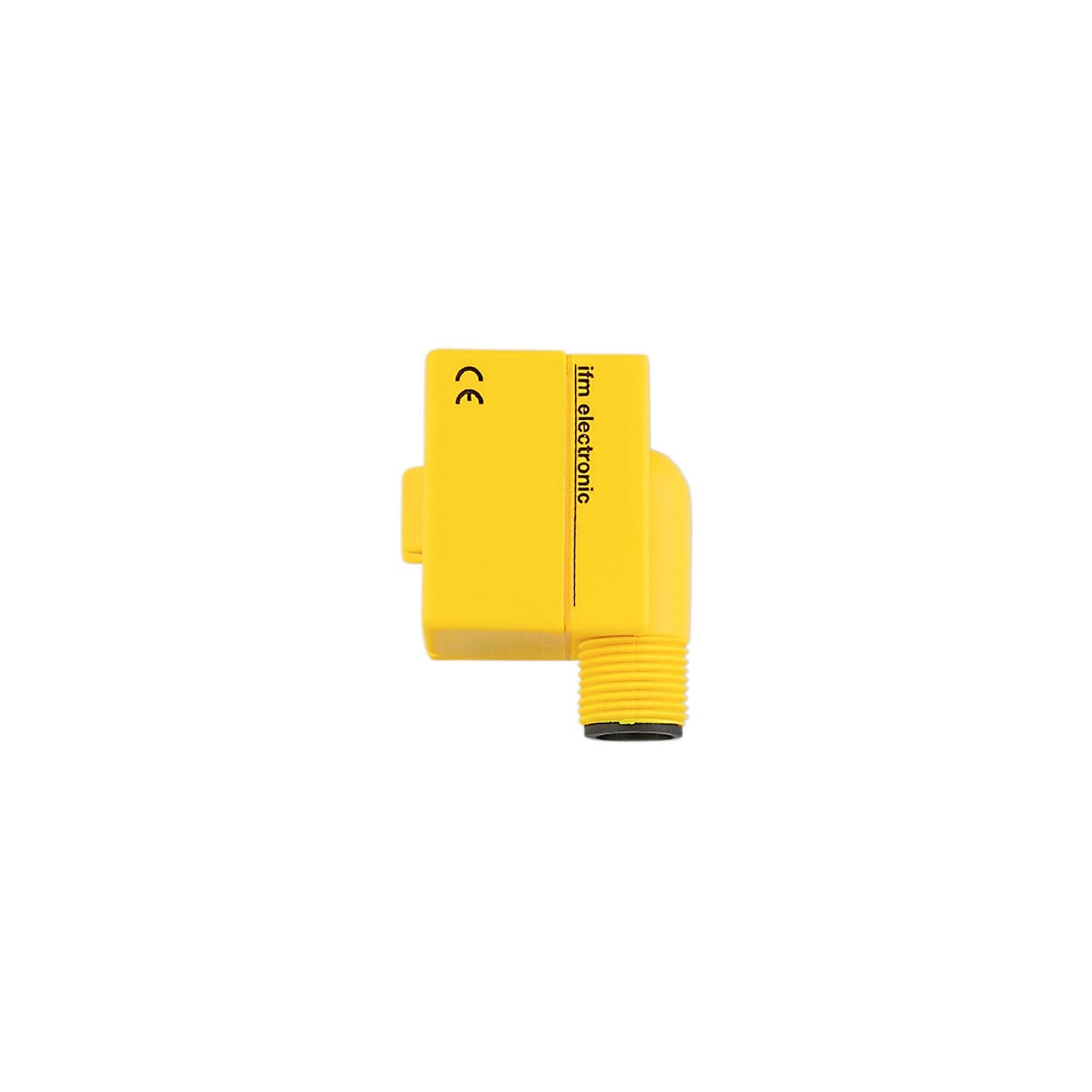

IFM IQ5003 - Cylinder sensor for tie-rod cylinder IQ5003/US-100

For use on tie rod cylinders.
Quick and easy mounting and fixing.
Very high switching frequency.
Clearly visible indication of the switching status.
E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)

Electrical design	PNP
Output function	normally open

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 2
Reverse polarity protection	yes
Max. power-on delay time [ms]	5

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.3
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Response sensitivity [mT]	2...35
Travel speed [m/s]	< 10

Accuracy / deviations

Hysteresis [mm]	1
Repeatability [mm]	0.1

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

Shock/vibration resistance	30 g (11 ms) / 10-55 Hz (1 mm)

Weight [g]	36
Cylinder type	pneumatic cylinders
Materials	PA 12

Displays / operating elements

Display	switching status 1 x LED, red

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
