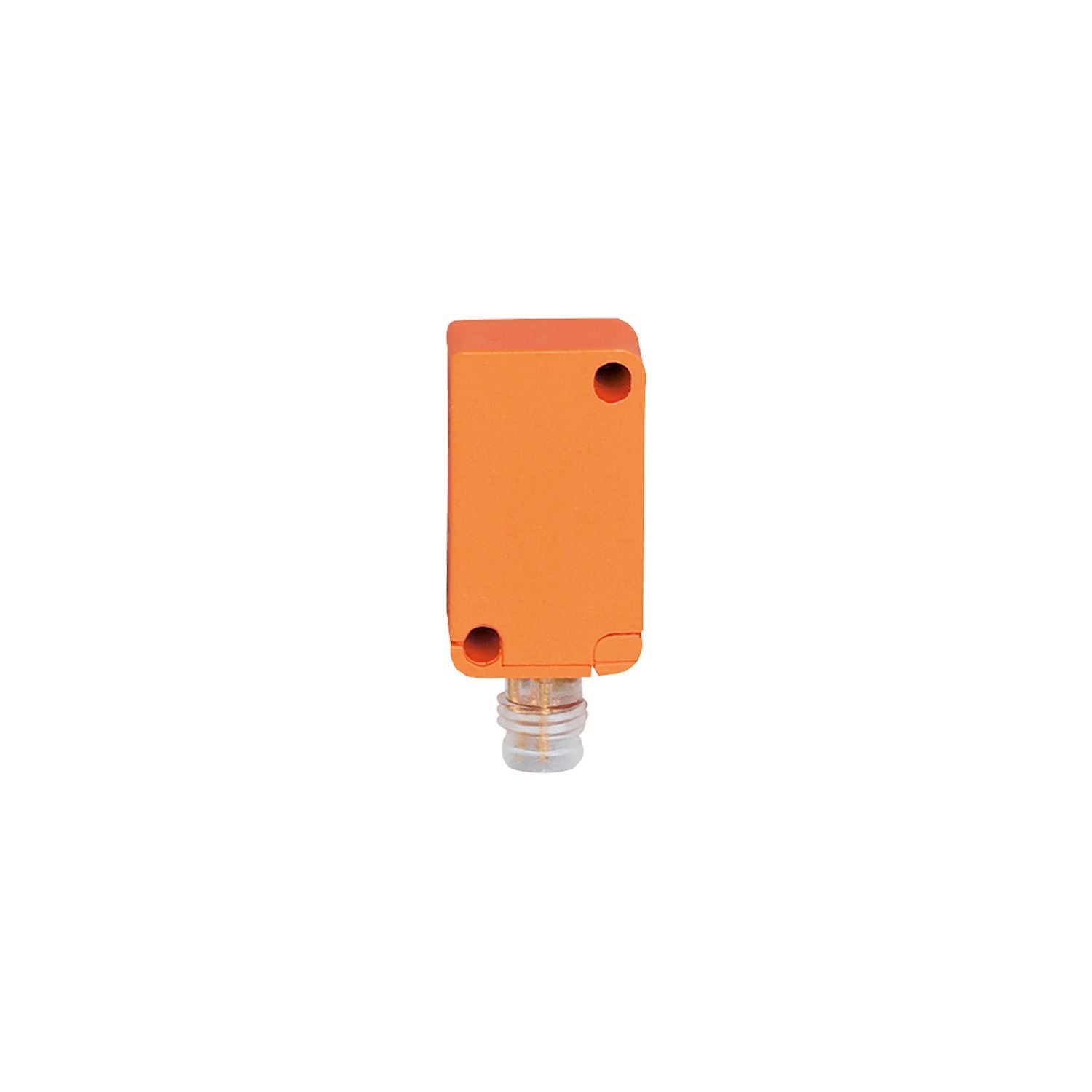

IFM IS5044 - Inductive sensor IS-2002-FRKG/AS

Particularly space-saving rectangular housing.
For use where space is restricted.
Very high switching frequency.
Output function normally open / normally closed programmable.
With space-saving M8 connector

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	2
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Special feature	Increased sensing range

Operating voltage [V]	5...36 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	4.6
Minimum load current [mA]	4
Max. leakage current [mA]	0.8
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Impact resistance	EN 60068-2-75 Ehc
Vibration resistance	EN 60068-2-6 Fc
Shock resistance	EN 60068-2-27 Ea
Continuous shock resistance	EN 60068-2-29 Eb
Fast temperature change	EN 60068-2-14 Na
Salt spray test	EN 60068-2-52 Kb
MTTF [years]	2571
UL approval	Ta -25...80 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191

Weight [g]	11.4
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	28 x 10 x 16
Materials	PBT
Tightening torque [Nm]	< 0.5;(with washer)

Displays / operating elements

Display	switching status 4 x 90° LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M8; coding: A
