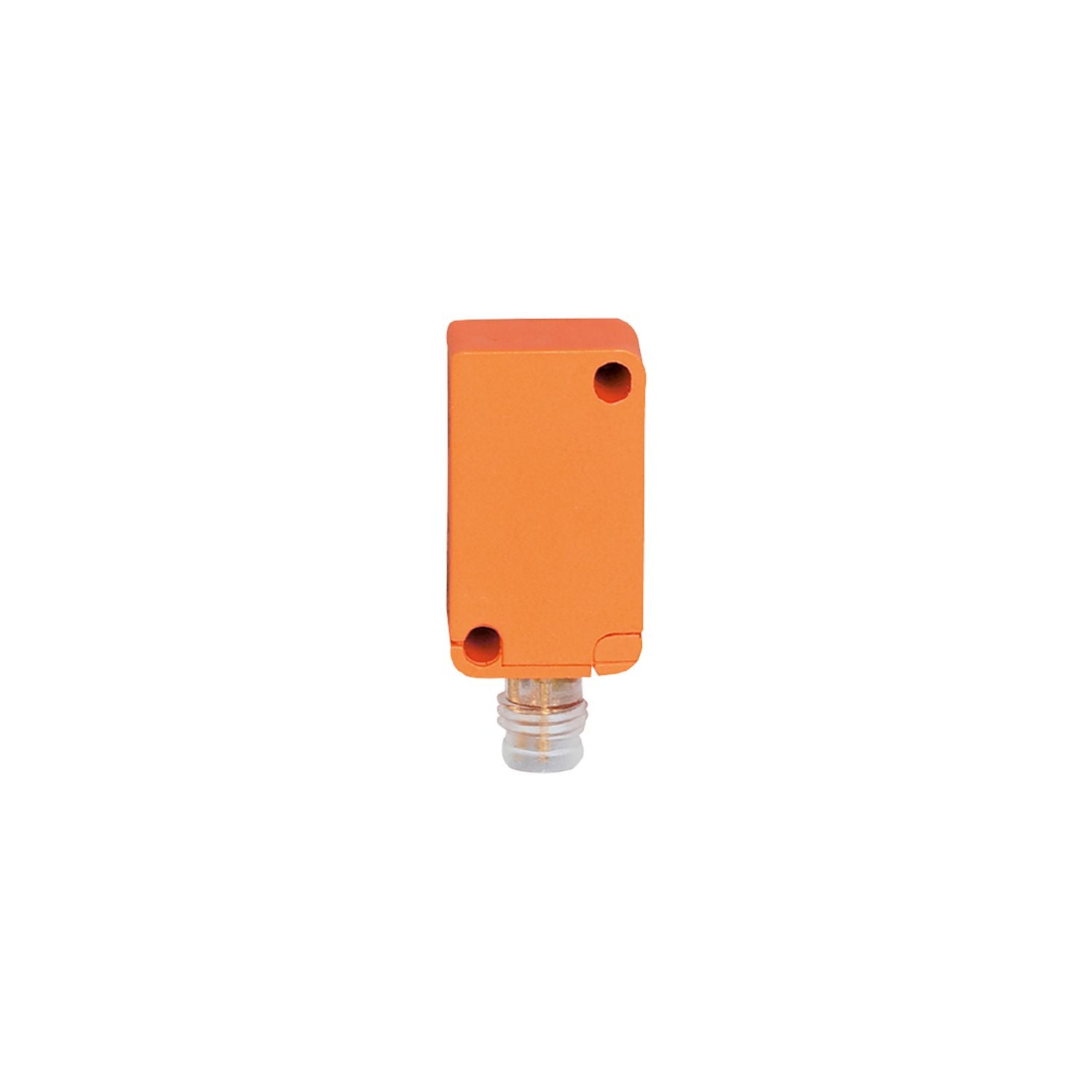

IFM IS5051 - Inductive sensor IS-3002-BPKG/AS

Particularly space-saving rectangular housing.
For use where space is restricted.
Very high switching frequency.
Wide operating temperature range.
With space-saving M8 connector

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Operating voltage [V]	10...30 DC
Current consumption [mA]	15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 65;(with ifm socket duly screwed on: IP 67)

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	3060

Weight [g]	10.7
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	28 x 10 x 16
Materials	PBT
Tightening torque [Nm]	< 0.5;(with washer)

Displays / operating elements

Display	switching status 4 x 90° LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A
