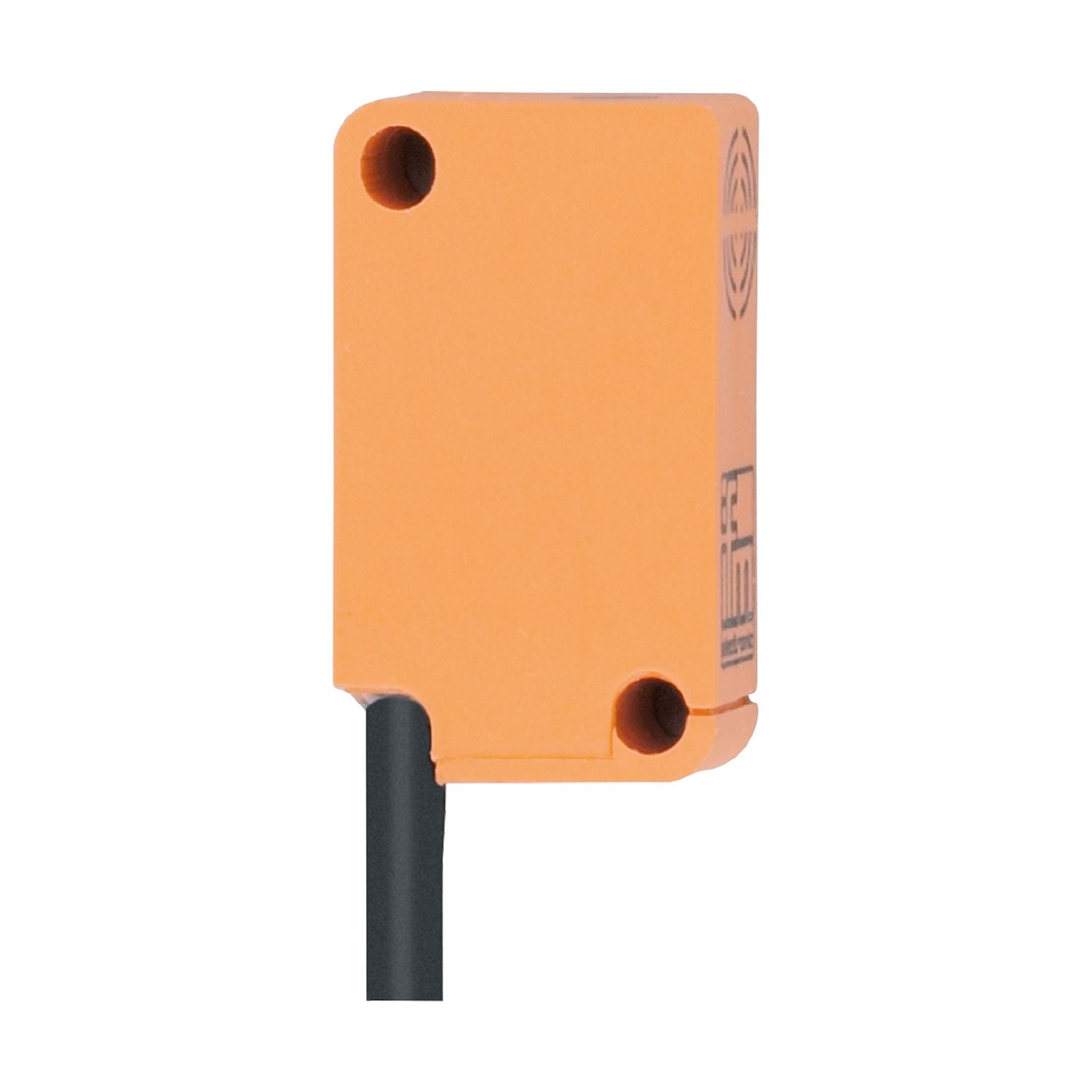

IFM IS5077 - Inductive sensor IS-2003-FRKG/0,3M/PH

Particularly space-saving rectangular housing.
For use where space is restricted.
Very high switching frequency.
Wide operating temperature range.
Clearly visible indication of the switching status

Electrical design	PNP/NPN
Output function	normally open / normally closed;(parameterisable)
Sensing range [mm]	3
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Special feature	Increased sensing range

Operating voltage [V]	5...36 DC
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	4.6
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	3
Real sensing range Sr [mm]	3 ± 10 %
Operating distance [mm]	0...2.4
Increased sensing range	yes

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	2470
UL approval	Ta -25...75 °C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191

Weight [g]	14.9
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	28 x 10 x 16
Materials	PBT
Tightening torque [Nm]	< 0.5;(with washer)

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR / PVC; 2 x 0.14 mm²
