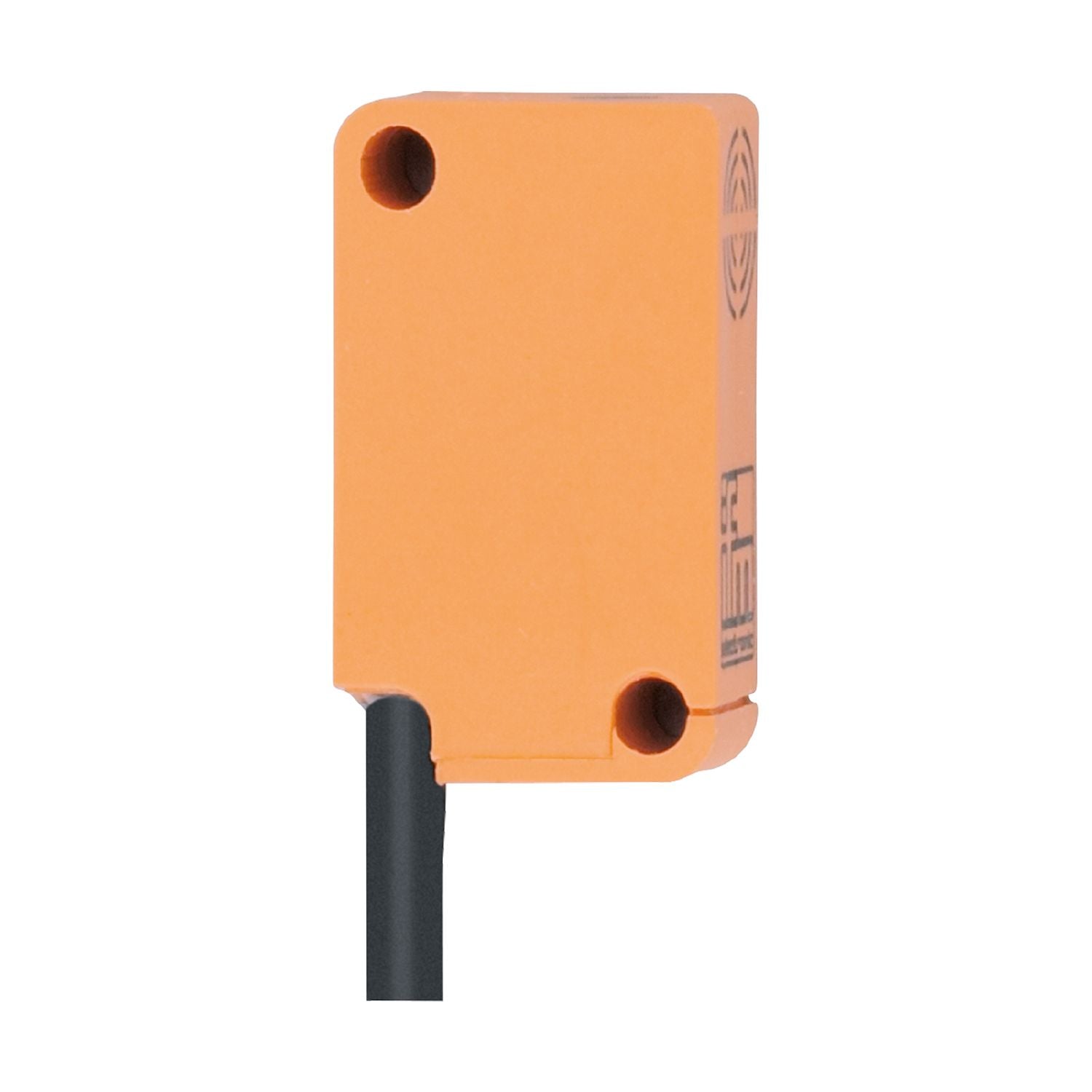

IFM IS5086 - Inductive sensor IS-3003BBPKG/0,15M AS

Particularly space-saving rectangular housing.
For use where space is restricted.
Wide operating temperature range.
Short connection cable with M8 connector.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally open
Sensing range [mm]	3
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	3
Real sensing range Sr [mm]	3 ± 10 %
Operating distance [mm]	0...2.4

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	0...60
Protection	IP 65; IP 67;(with ifm socket duly screwed on)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	2965
UL approval	Ta 0...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	14.3
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	28 x 10 x 16
Materials	PBT; PC
Tightening torque [Nm]	< 0.5;(with washer)

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.15 m, PUR
Connection	Connector: 1 x M8; coding: A
